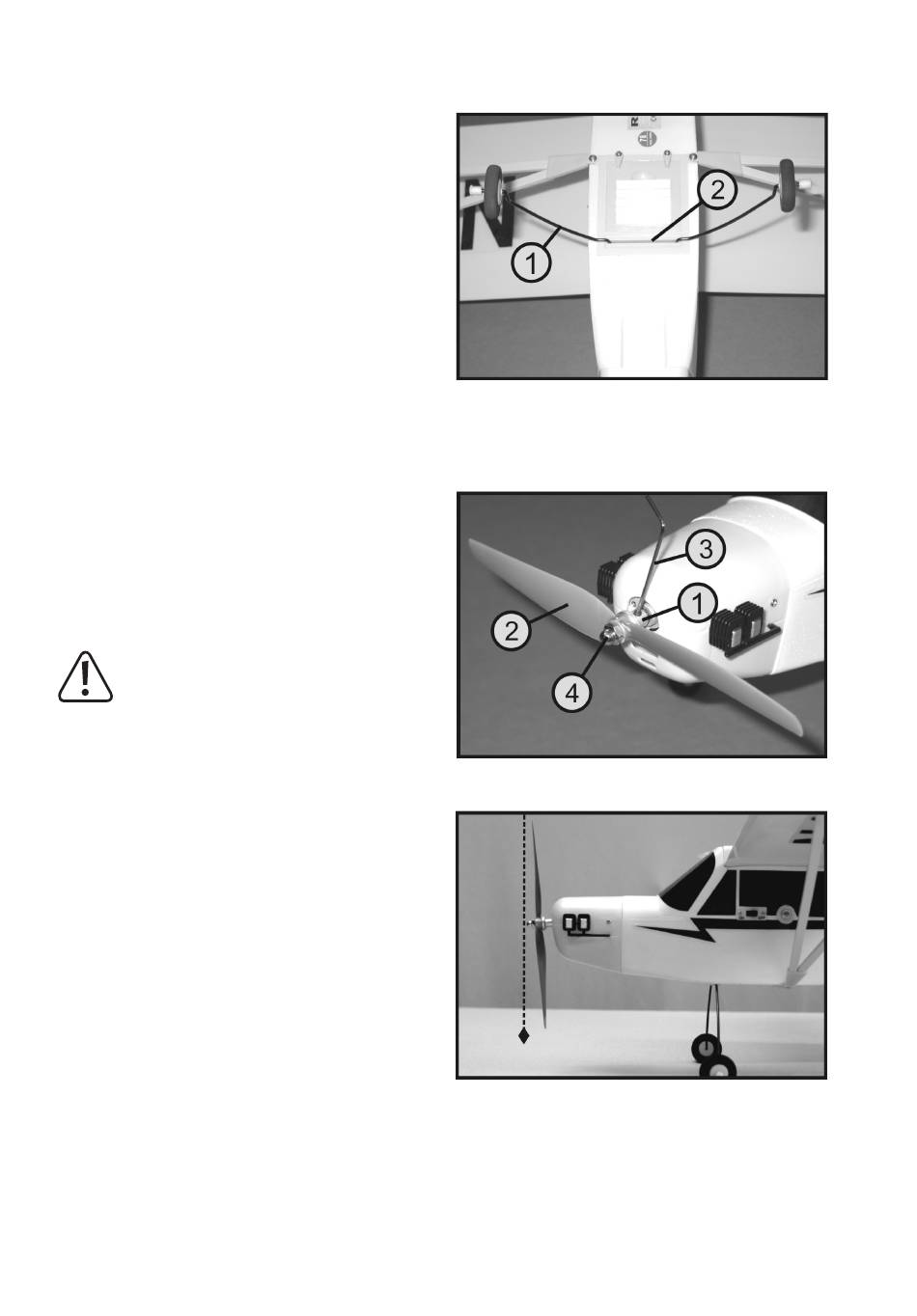

i) Mounting the landing gear
The landing gear wire (1) is inserted into the prepared land-
ing gear shaft (2) located in front of the flight battery shaft.
j) Mounting the propeller
• The propeller catch (1) is slid onto the motor shaft up to
the stop position together with the propeller (2).
• Then use a hex key (3) to tighten the grub screw at the
propeller tappet.
• Finally, check the propeller nut (4) once again with the
enclosed fork wrench.
Attention, important!
If you align the model horizontally and then look
at it from the side, you will quickly notice that
the propeller is not exactly vertical (see figure
16, interrupted line), but slightly slanted.
This is intentional and not a defect of the model
or the motor attachment!
All manuals and user guides at all-guides.com
Figure 14
Figure 15
Figure 16
