Fix the foot of the bench drilling
machine to the substructure with the
provided through-holes.
The Through-bore are marked with
arrows on the machine base.
ATTENTION!
Tighten the fixing screws of the bench drilling machine only as much that it is safely
fixed and cannot break away or tilt over.
If the fixing screws are too tight in particular in connection with an uneven substructure it may
result in a broken stand.
3.4.2

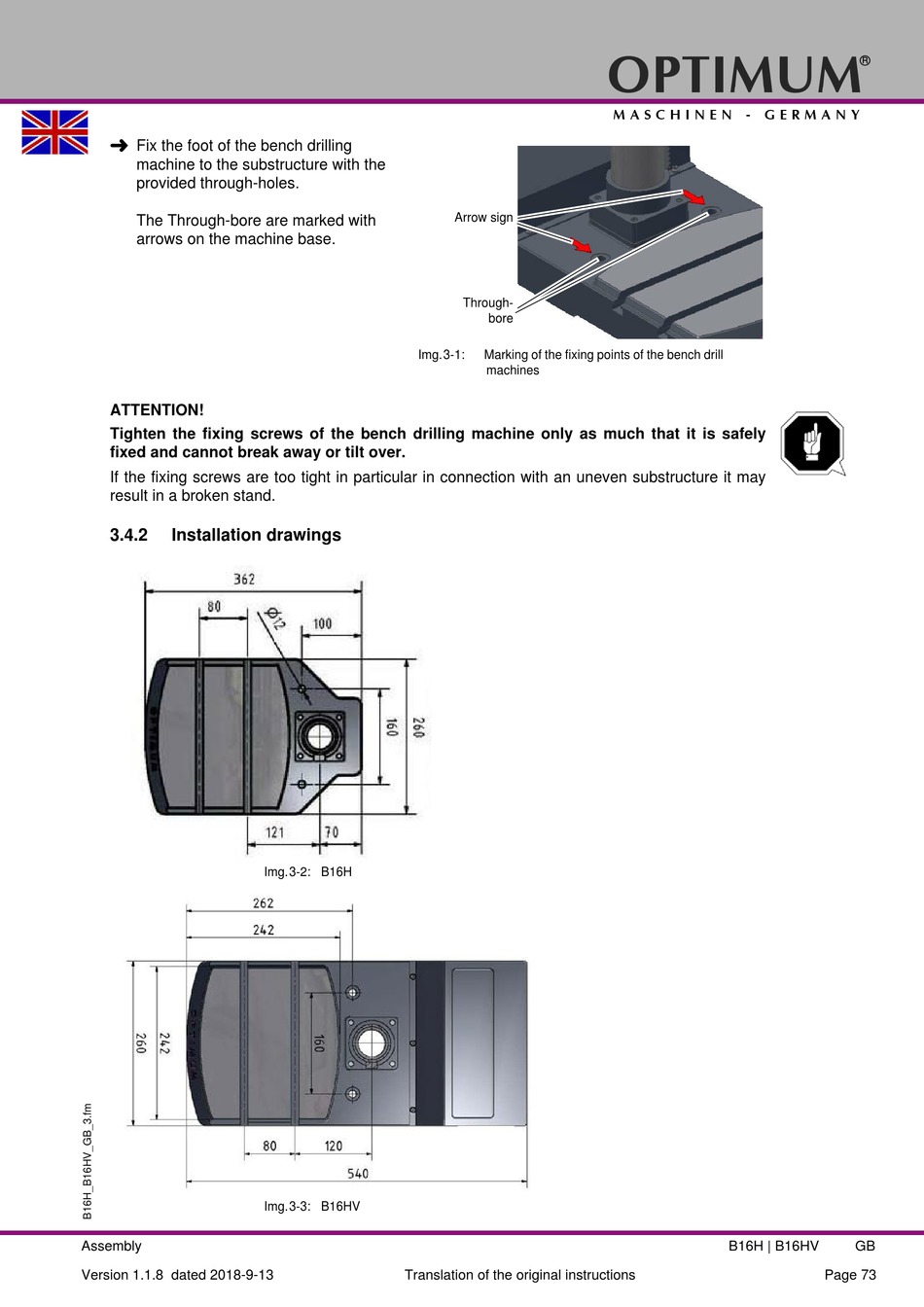

Installation drawings

Assembly
Version 1.1.8 dated 2018-9-13
Img.3-1:
Img.3-2: B16H
Img.3-3: B16HV
Translation of the original instructions
OPTIMUM
M A S C H I N E N - G E R M A N Y
Arrow sign
Through-
bore
Marking of the fixing points of the bench drill
machines
®
B16H | B16HV GB
Page 73
