3

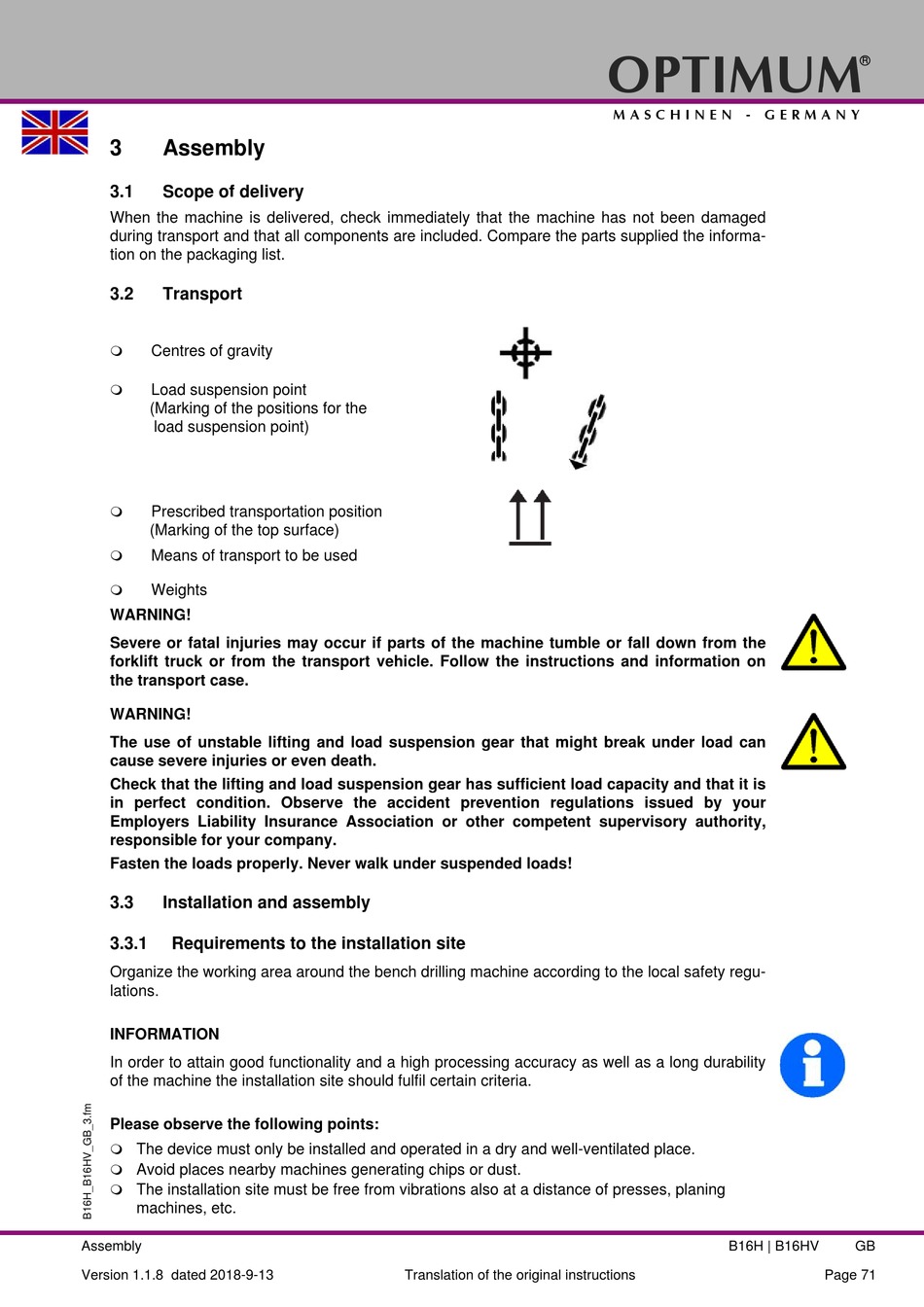

Assembly
3.1
Scope of delivery
When the machine is delivered, check immediately that the machine has not been damaged
during transport and that all components are included. Compare the parts supplied the informa-
tion on the packaging list.
3.2
Transport
Centres of gravity
Load suspension point
(Marking of the positions for the
load suspension point)
Prescribed transportation position
(Marking of the top surface)
Means of transport to be used
Weights
WARNING!
Severe or fatal injuries may occur if parts of the machine tumble or fall down from the
forklift truck or from the transport vehicle. Follow the instructions and information on
the transport case.
WARNING!
The use of unstable lifting and load suspension gear that might break under load can
cause severe injuries or even death.
Check that the lifting and load suspension gear has sufficient load capacity and that it is
in perfect condition. Observe the accident prevention regulations issued by your
Employers Liability Insurance Association or other competent supervisory authority,
responsible for your company.
Fasten the loads properly. Never walk under suspended loads!
3.3
Installation and assembly
3.3.1
Requirements to the installation site
Organize the working area around the bench drilling machine according to the local safety regu-
lations.
INFORMATION
In order to attain good functionality and a high processing accuracy as well as a long durability
of the machine the installation site should fulfil certain criteria.
Please observe the following points:
The device must only be installed and operated in a dry and well-ventilated place.
Avoid places nearby machines generating chips or dust.
The installation site must be free from vibrations also at a distance of presses, planing
machines, etc.
Assembly
Version 1.1.8 dated 2018-9-13
Translation of the original instructions
OPTIMUM
M A S C H I N E N - G E R M A N Y
B16H | B16HV
®
GB
Page 71
