4.3 Operation

4.3.1

Control elements and indicators of the ASSKEA proVisio

Symbol Description
Button illuminates
continuously green
Button illuminates
continuously red
Button illuminates
continuously green
Button illuminates
continuously red
Button illuminates
continuously green
Button illuminates
continuously red
Display illuminates
continuously green
Display illuminates
continuously orange
Display illuminates
continuously red
Display blinks green
Display blinks red
A suction setting High
B suction setting Medium
C suction setting Low
D LED status indicator for battery
operation and battery charge level
E LED status indicator for
mains operation
F On / Off button

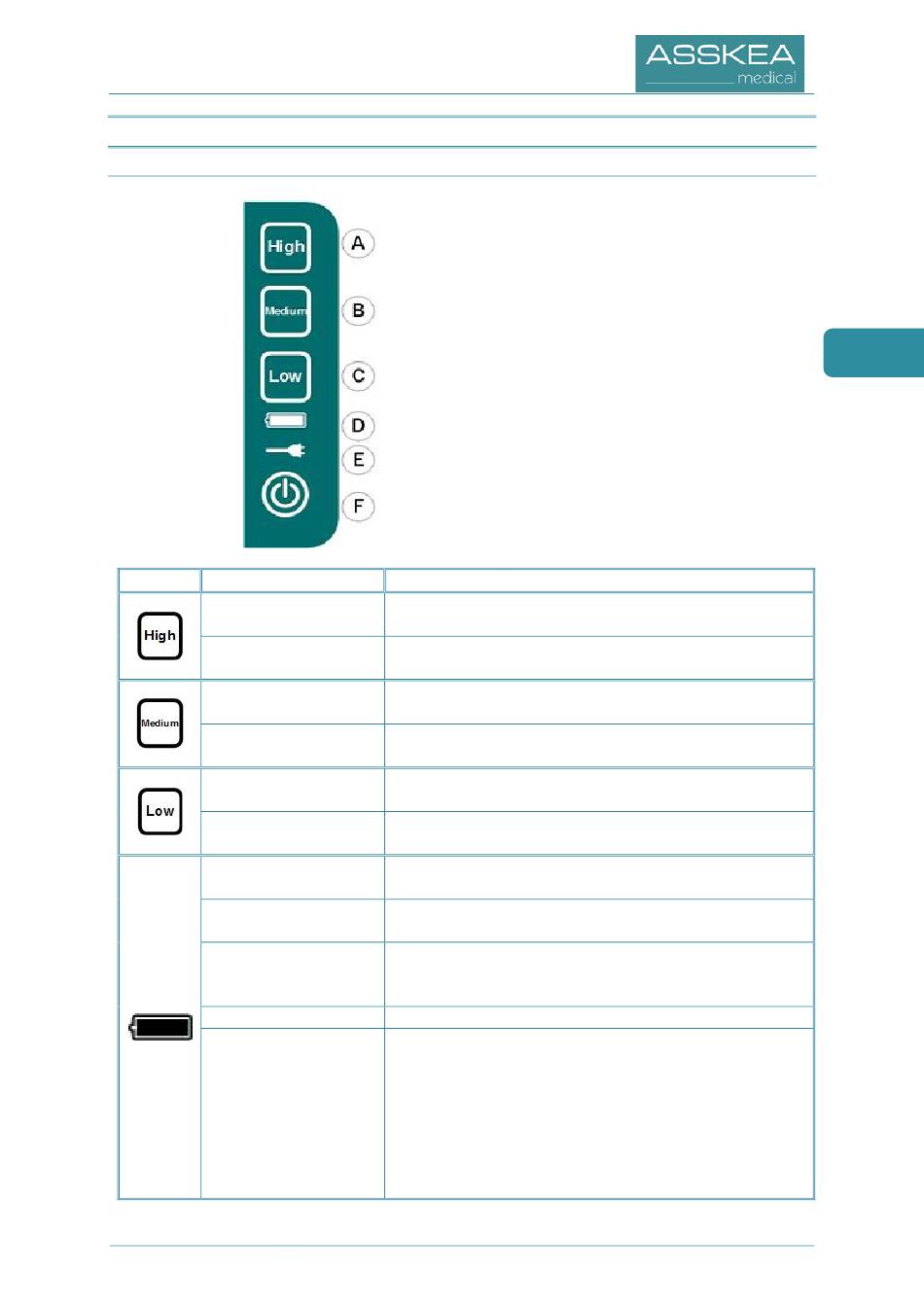

Fig. 23
Meaning of display
Device is running, High vacuum setting is adjusted
(-0.5 bar < vacuum ≤ -0.9 bar, flow rate 30 l/min)
Canister full / filter blocked
(motor switches off automatically)
Device is running, Medium vacuum setting is adjusted
(-0.2 bar < vacuum ≤ -0.5 bar, flow rate 25 l/min)
Canister full / filter blocked
(motor switches off automatically)
Device is running, Low vacuum setting is adjusted
(vacuum ≤ -0.2 bar, flow rate 20 l/min)
Canister full / filter blocked
(motor switches off automatically)
Battery capacity 100% to 60%
Battery capacity < 60% to 10%
Battery capacity < 10%, connect power supply unit
immediately. Switch off the device after completion of
the aspiration procedure for charging!
Battery is being charged.
Overtemperature protection, interruption of charging
process until battery temperature returns to permissible
range.
OR
Battery defective, if charging is not possible even if the
device has cooled down.
Operation only possible with connected power supply
unit. Please contact your service partner!
®
