Cylinder AX (Z5) Modularity
EN

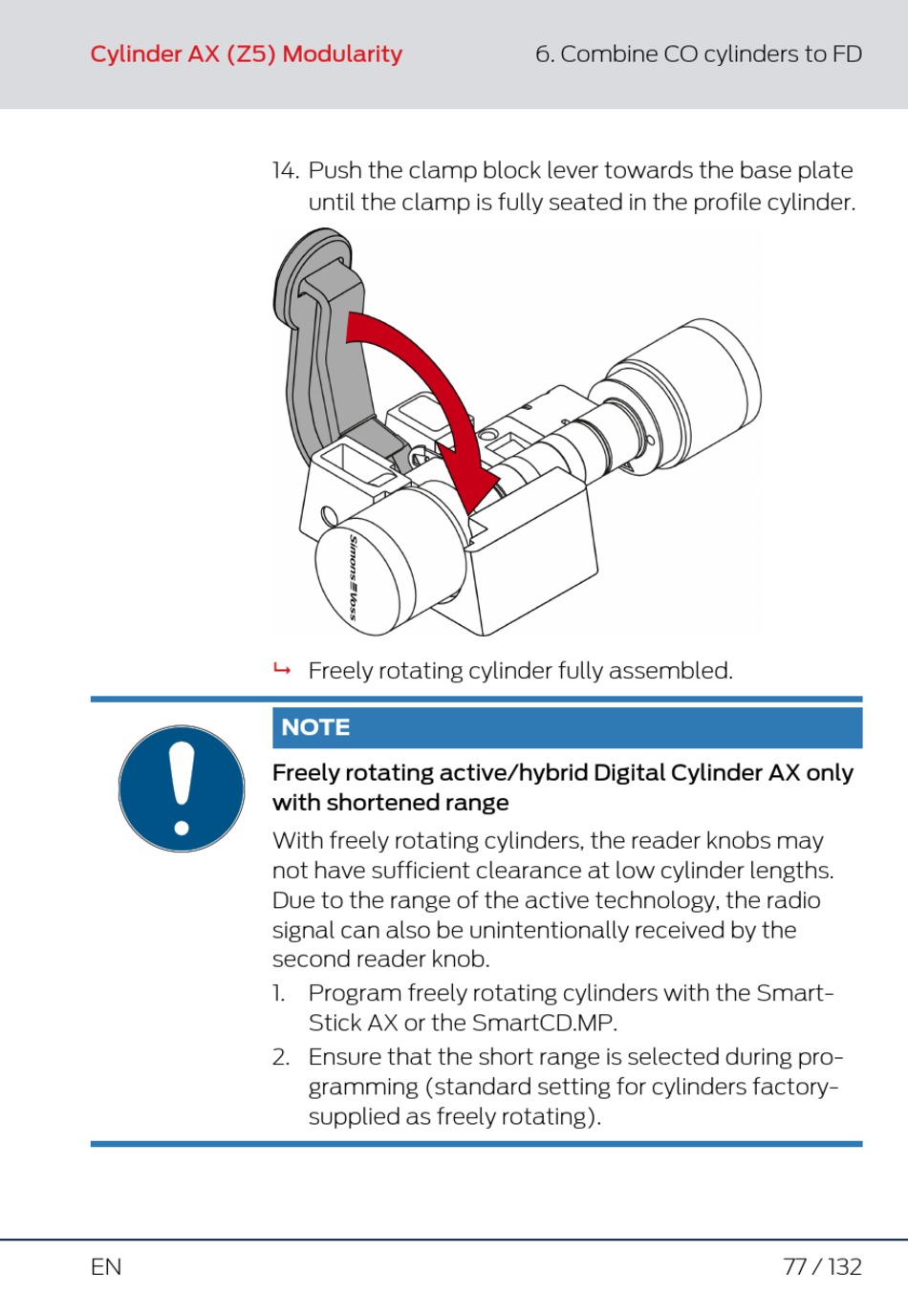

14. Push the clamp block lever towards the base plate
until the clamp is fully seated in the profile cylinder.
Freely rotating cylinder fully assembled.
9
NOTE
Freely rotating active/hybrid Digital Cylinder AX only
with shortened range
With freely rotating cylinders, the reader knobs may
not have sufficient clearance at low cylinder lengths.
Due to the range of the active technology, the radio
signal can also be unintentionally received by the
second reader knob.
1. Program freely rotating cylinders with the Smart-
Stick AX or the SmartCD.MP.
2. Ensure that the short range is selected during pro-
gramming (standard setting for cylinders factory-
supplied as freely rotating).
6. Combine CO cylinders to FD
77 / 132
