4. Extend Cylinder AX
52 / 132
ü Spacer for aligning the extension bolt
Clamp block for pressing in the clamp
ü

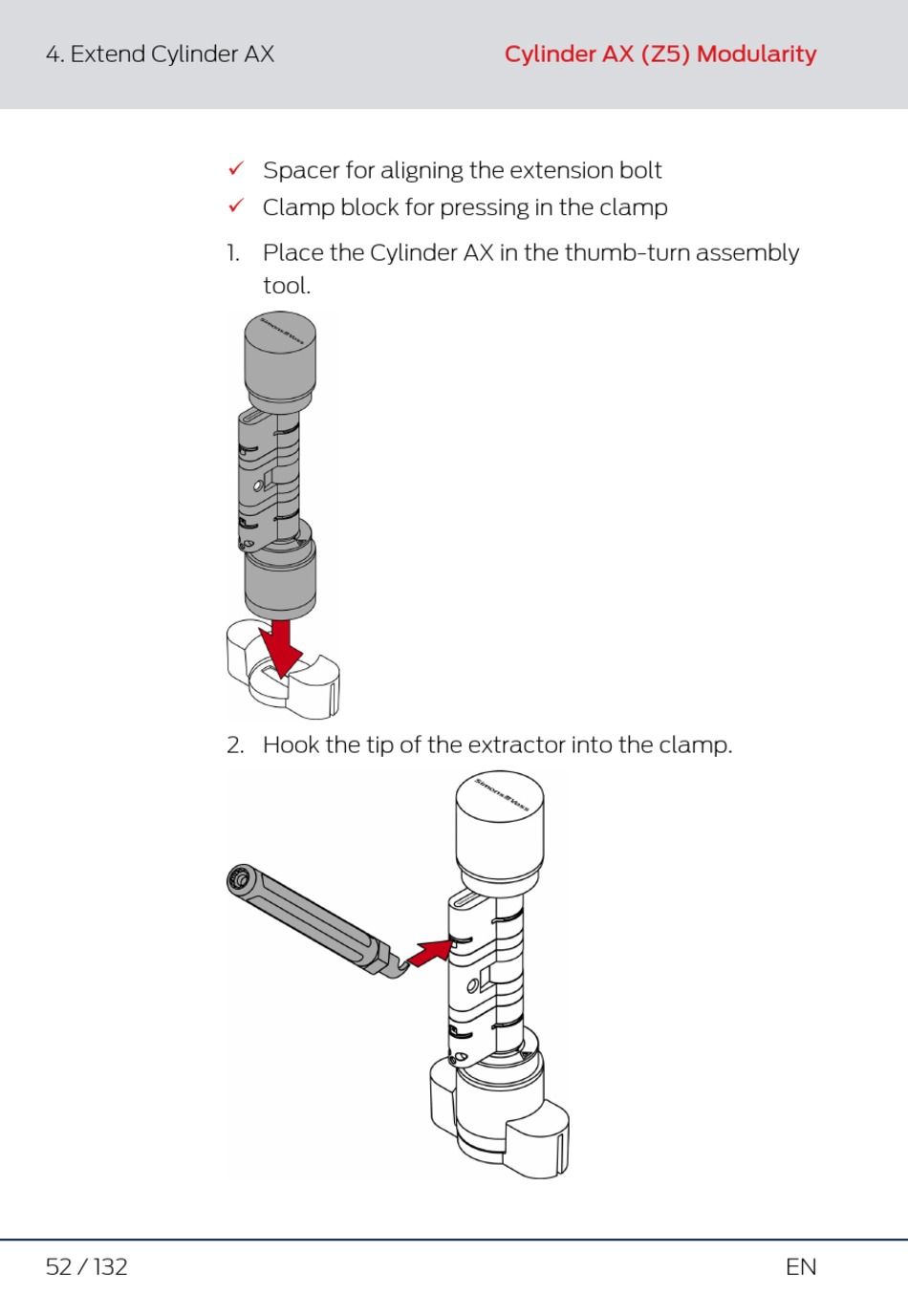

1. Place the Cylinder AX in the thumb-turn assembly
tool.
2. Hook the tip of the extractor into the clamp.
