Cylinder AX (Z5) Modularity
EN
ü

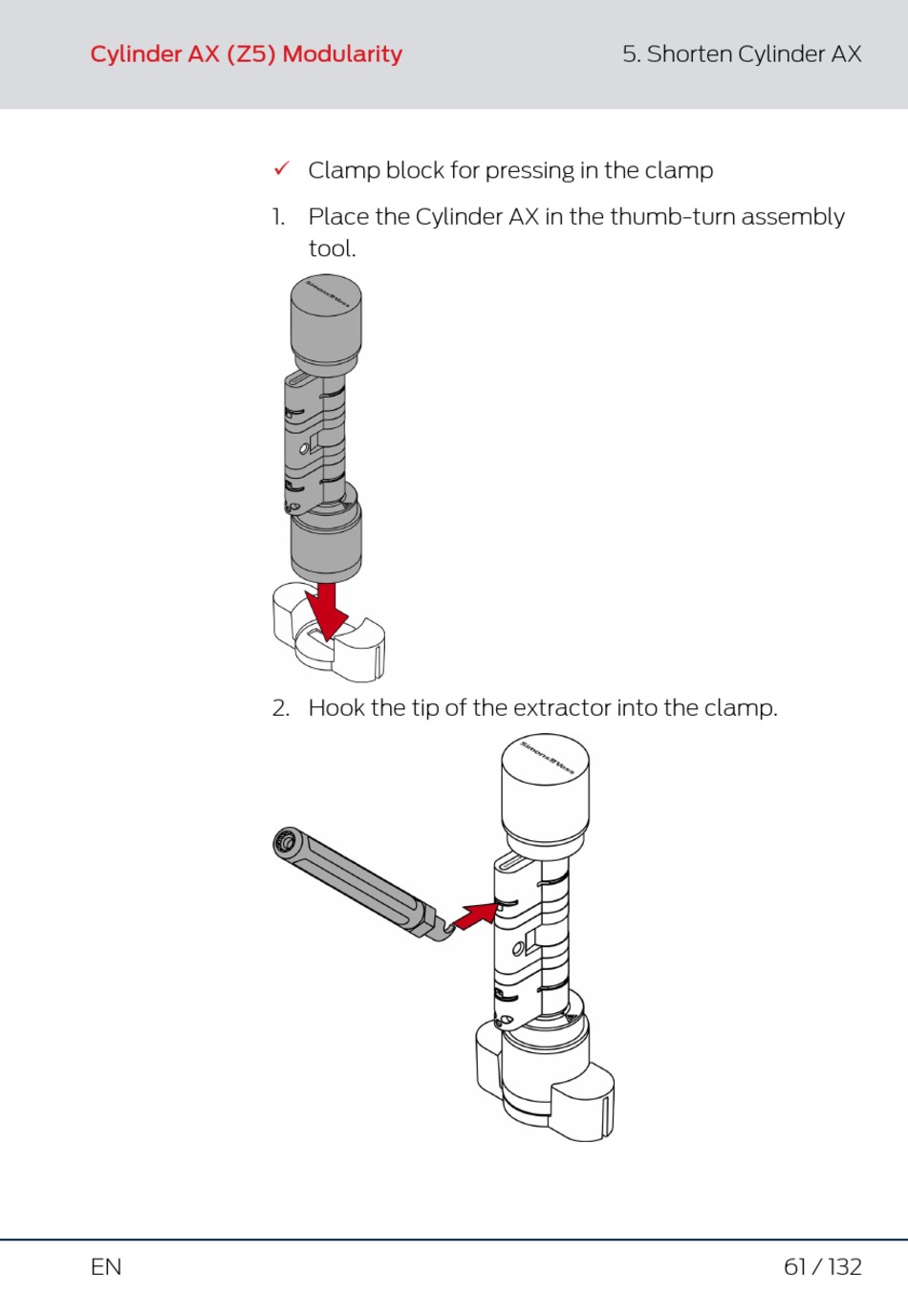

Clamp block for pressing in the clamp
1. Place the Cylinder AX in the thumb-turn assembly
tool.
2. Hook the tip of the extractor into the clamp.
5. Shorten Cylinder AX
61 / 132
