3. Accessories and tools

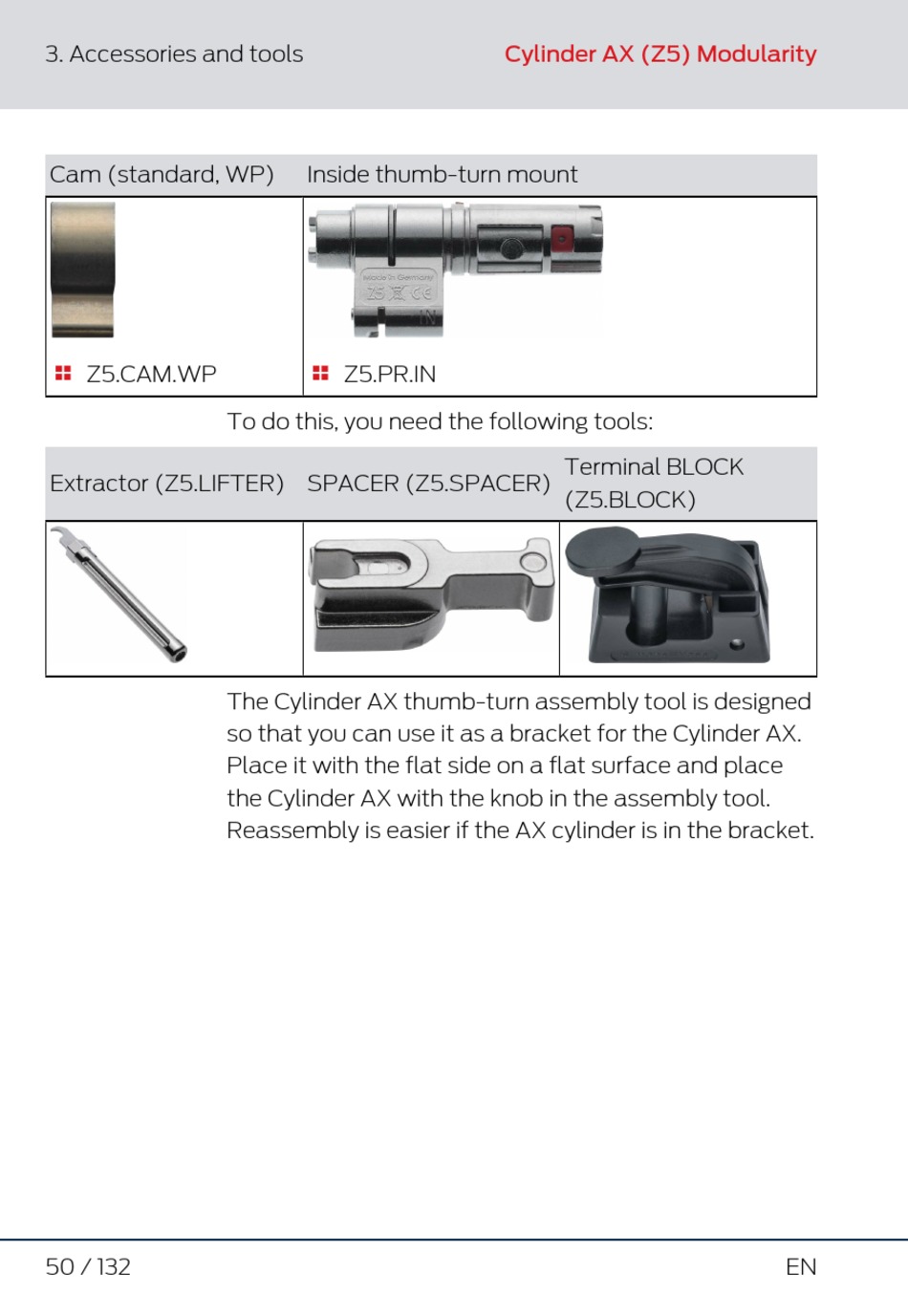

Cam (standard, WP)
Z5.CAM.WP

Extractor (Z5.LIFTER) SPACER (Z5.SPACER)
50 / 132
Inside thumb-turn mount
Z5.PR.IN

To do this, you need the following tools:
The Cylinder AX thumb-turn assembly tool is designed
so that you can use it as a bracket for the Cylinder AX.
Place it with the flat side on a flat surface and place
the Cylinder AX with the knob in the assembly tool.
Reassembly is easier if the AX cylinder is in the bracket.
Cylinder AX (Z5) Modularity
Terminal BLOCK
(Z5.BLOCK)
