Cylinder AX (Z5) Modularity
EN

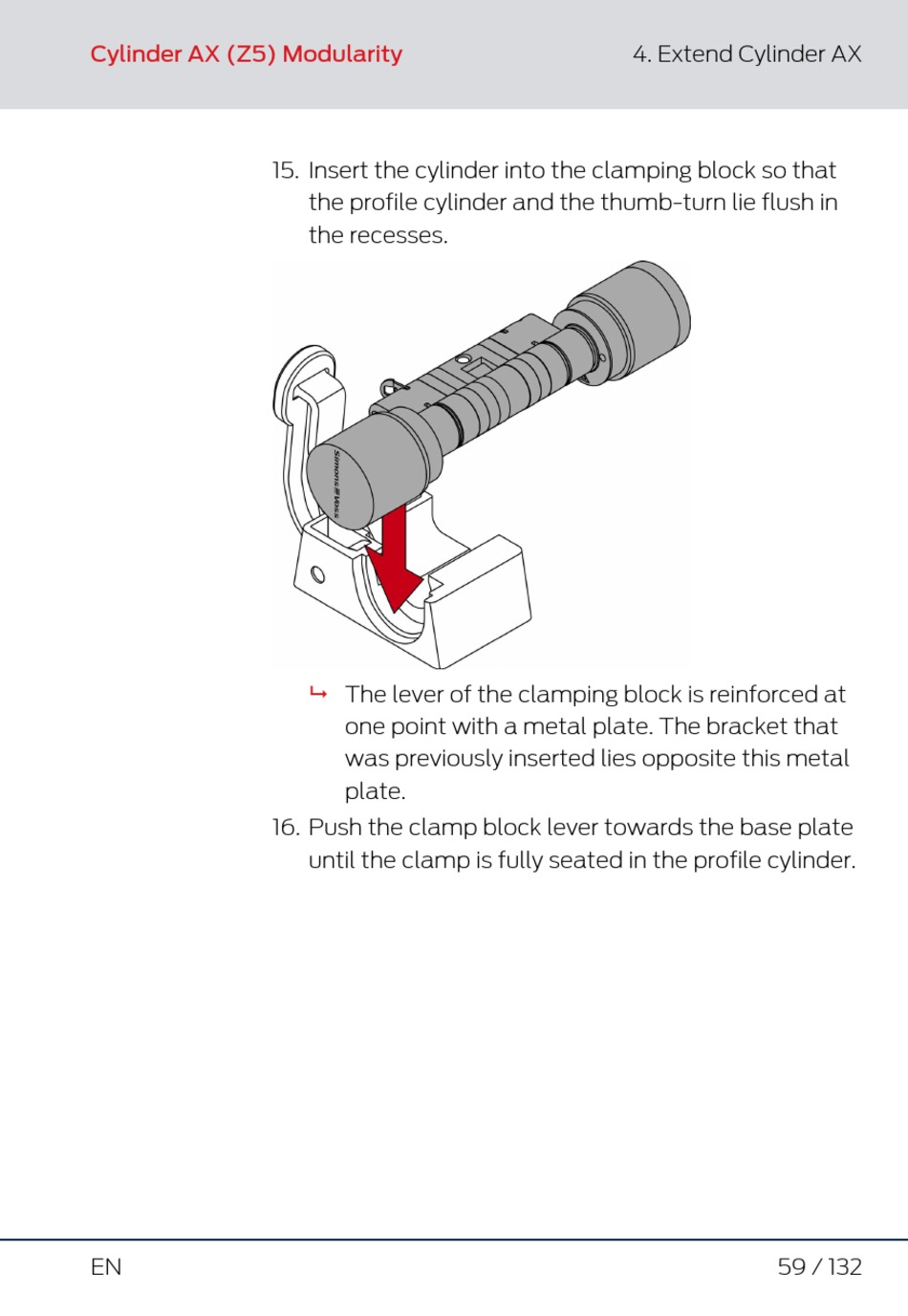

15. Insert the cylinder into the clamping block so that
the profile cylinder and the thumb-turn lie flush in
the recesses.
The lever of the clamping block is reinforced at
9
one point with a metal plate. The bracket that
was previously inserted lies opposite this metal
plate.
16. Push the clamp block lever towards the base plate
until the clamp is fully seated in the profile cylinder.
4. Extend Cylinder AX
59 / 132
