Cylinder AX (Z5) Modularity
EN

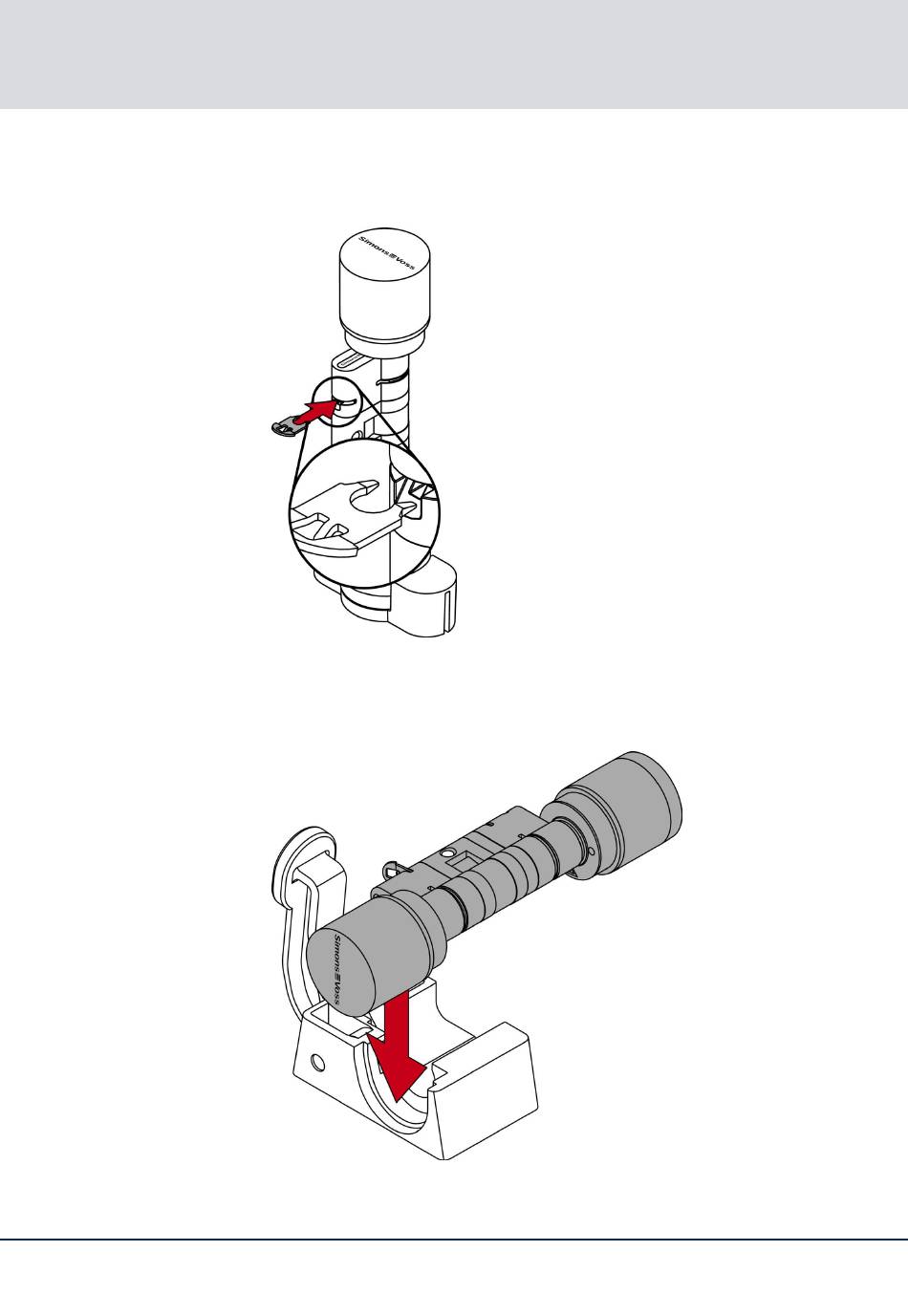

14. Refit the clip into the slot of the profile cylinder with
the lug facing the fastening screw.
15. Insert the cylinder into the clamping block so that
the profile cylinder and the thumb-turn lie flush in
the recesses.
5. Shorten Cylinder AX
