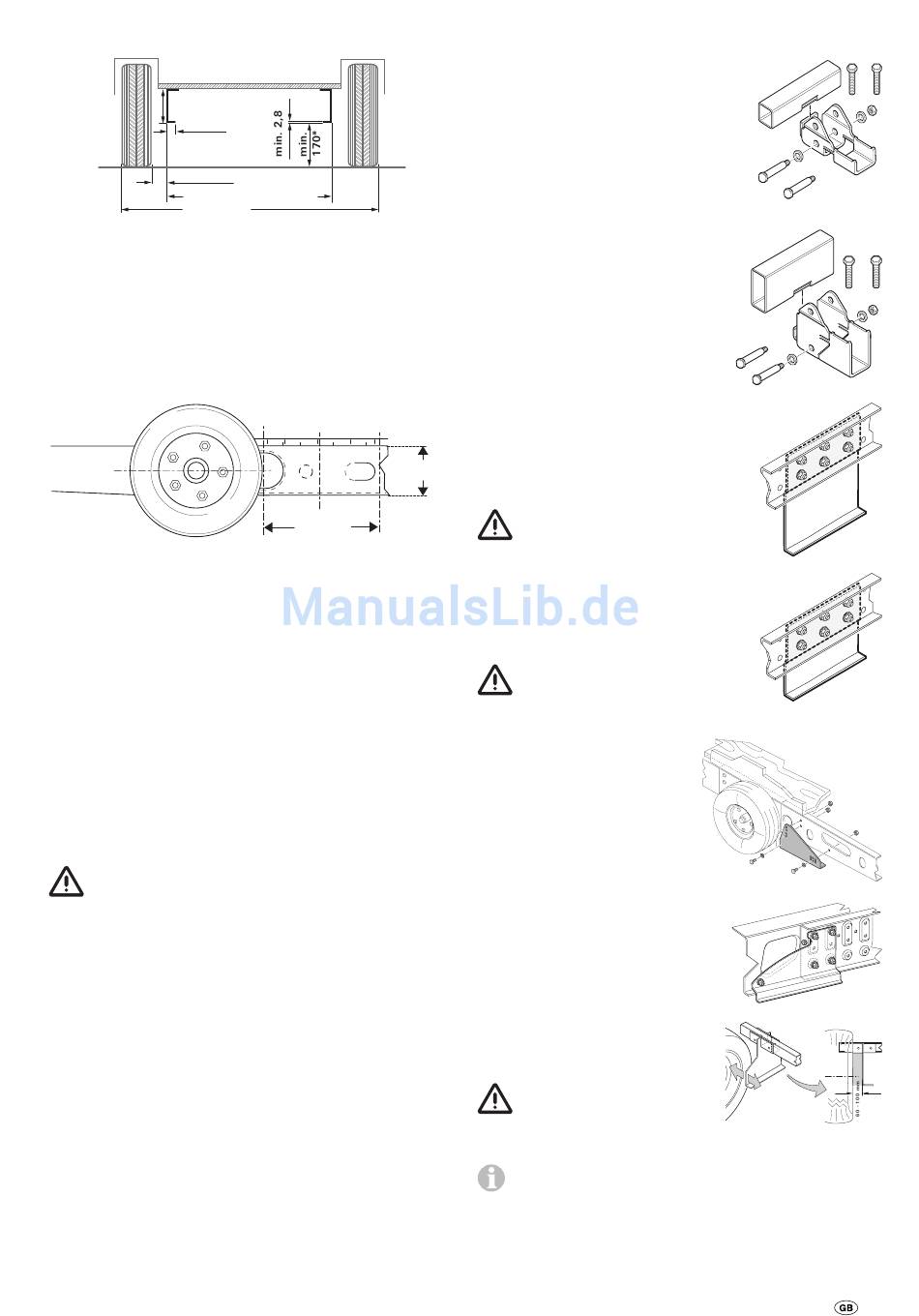

The equipment can only be fitted to caravans / trailers within
the following dimensions.
Caravan floor
170
min. 25
min. 35 **
min. 50
min. 1200 / max. 2000
max. 2400
All dimensions in mm.
* for a loaded vehicle with a max. allowed gross weight
** for U-profile

Measuring the chassis height

A frame height of min. 170 mm is required about 330 mm
from the outer edge of the tyre at the height of the wheel
hub / centre.

Determining the installation type

1. Standard installation
Standard installation for chassis with a U or L-profile and a
frame height of min. 170 mm. No special accessories are
required.
2. Installation in a chassis with a U or L-profile and
frame height between 110 mm and less than 170 mm
The spacer set 30 mm (up to 140 mm frame height) or spacer
set 60 mm (less than 140 mm frame height) is required to
compensate the height difference.
3. Installation with chassis with U-profiles or L-profiles
with frame height of less than 110 mm
A low chassis kit needs to be used to compensate the
height difference for chassis with a height of less than
110 mm.
In Germany, the low chassis kit installation must
be accepted by a vehicle expert.
4. The AL-KO Vario III / AV installation kit must be used
with the AL-KO Vario III / AV chassis with a frame thickness of
less than 2.8 mm.
4a. For mounting in front of the axle on the
AL-KO Chassis M, with sliding rails
The AL-KO Chassis M Adapter set needs to be used to
compensate the overlapping frame edges.
5. Installation with Eriba Touring chassis
The Eriba Touring mounting set is needed for the Eriba Touring
chassis.
min. 170
330

Special accessory installation

1. Spacer set 30 mm
For compensating the height differ-
ence for caravans / trailers with a
frame height of less than 170 mm
and up to140 mm,
part no. 60030-95000.
2. Spacer set 60 mm
For compensating the height differ-
ence for caravans / trailers with a
frame height of less than 140 mm
and up to 110 mm,
part no. 60030-95100.
3. Low chassis kit
For compensating the height differ-
ence for caravans / trailers with a
frame height of less than 110 mm
and / or for bridging struts,
part no. 60010-64900.
In Germany, this installationkit
must be accepted by a vehi-
cle expert.
3a. Low chassis kit, short
For compensating the height differ-
ence for caravans / trailers with a
frame height of less than 110 mm,
part no. 60030-37600.
In Germany, this installation
kit must be accepted by a
vehicle expert.
4. AL-KO Vario III / AV
Installation kit
For caravans with
AL-KO Vario III / AV Chassis
(frame thickness less
than 2,8 mm) mandatory,
part no. 60010-21500.
4a. AL-KO Chassis M Adapter set
Mounting set to compensate the
frame edges for caravans with
AL-KO Chassis M,
part no. 60030-38600.
5. Mover® mounting set
for Eriba-Touring,
part no. 60030-09000.
Installation is not possible in
some cases because of
attachments to the underbody.
Contact your dealer if necessary.
Detailed installation instructions are provided with the
relevant mounting set.
