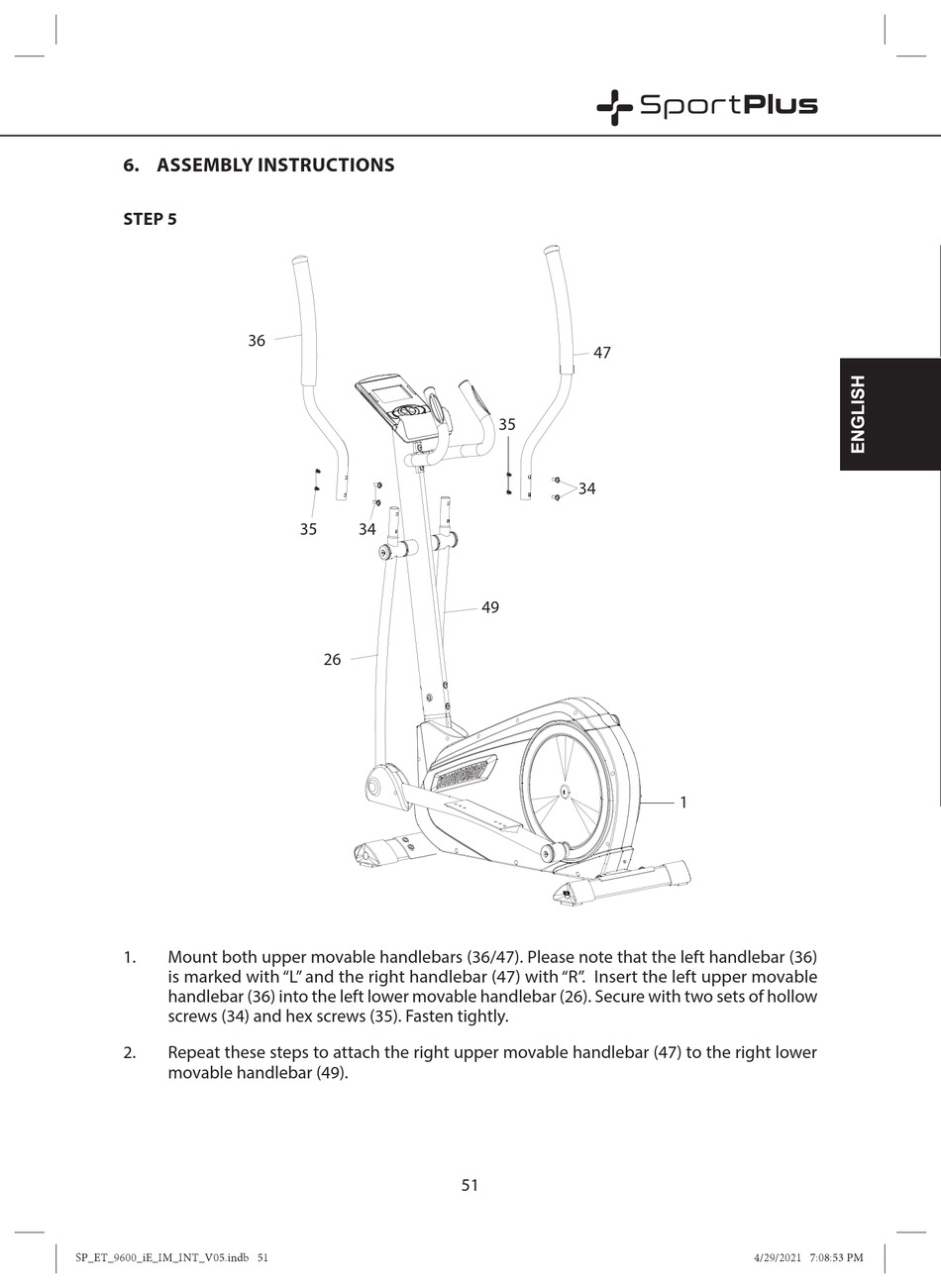

6. ASSEMBLY INSTRUCTIONS
STEP 5
36
1. Mount both upper movable handlebars (36/47). Please note that the left handlebar (36)
is marked with "L" and the right handlebar (47) with "R". Insert the left upper movable
handlebar (36) into the left lower movable handlebar (26). Secure with two sets of hollow
screws (34) and hex screws (35). Fasten tightly.
2. Repeat these steps to attach the right upper movable handlebar (47) to the right lower
movable handlebar (49).
SP_ET_9600_iE_IM_INT_V05.indb 51
35 34
26
51
47
35
34
49
1
