6. ASSEMBLY INSTRUCTIONS

Take all parts out of the packaging carefully and place them on a fl at surface. When doing this,
use suitable padding to protect the working surface. Assembly of the individual parts should
be carried out by 2 people!
Some parts have already been preassembled to simplify the assembly process for you.

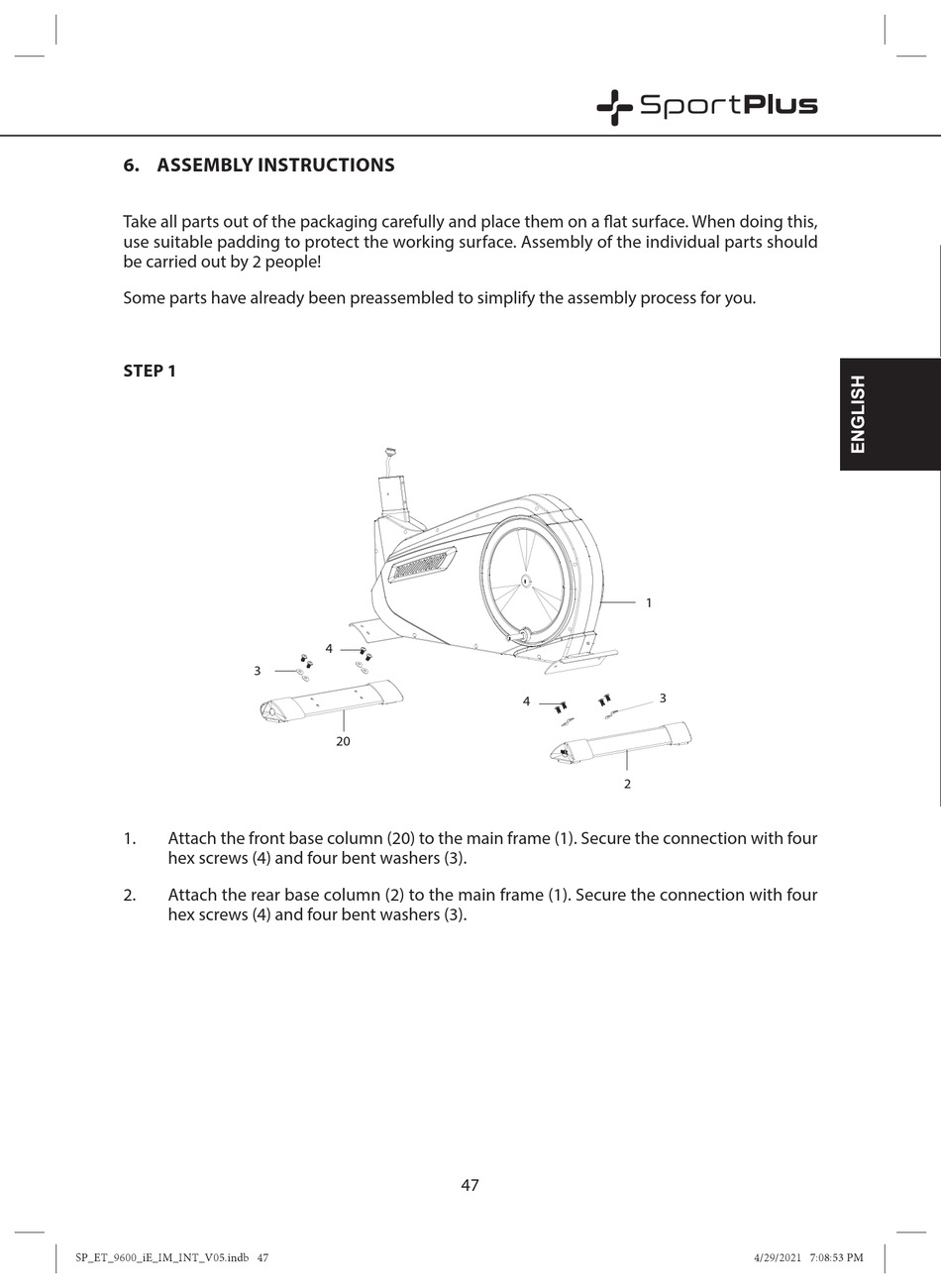

STEP 1
1. Attach the front base column (20) to the main frame (1). Secure the connection with four
hex screws (4) and four bent washers (3).
2. Attach the rear base column (2) to the main frame (1). Secure the connection with four
hex screws (4) and four bent washers (3).
SP_ET_9600_iE_IM_INT_V05.indb 47
4
3
20
4
2
47
1
3
