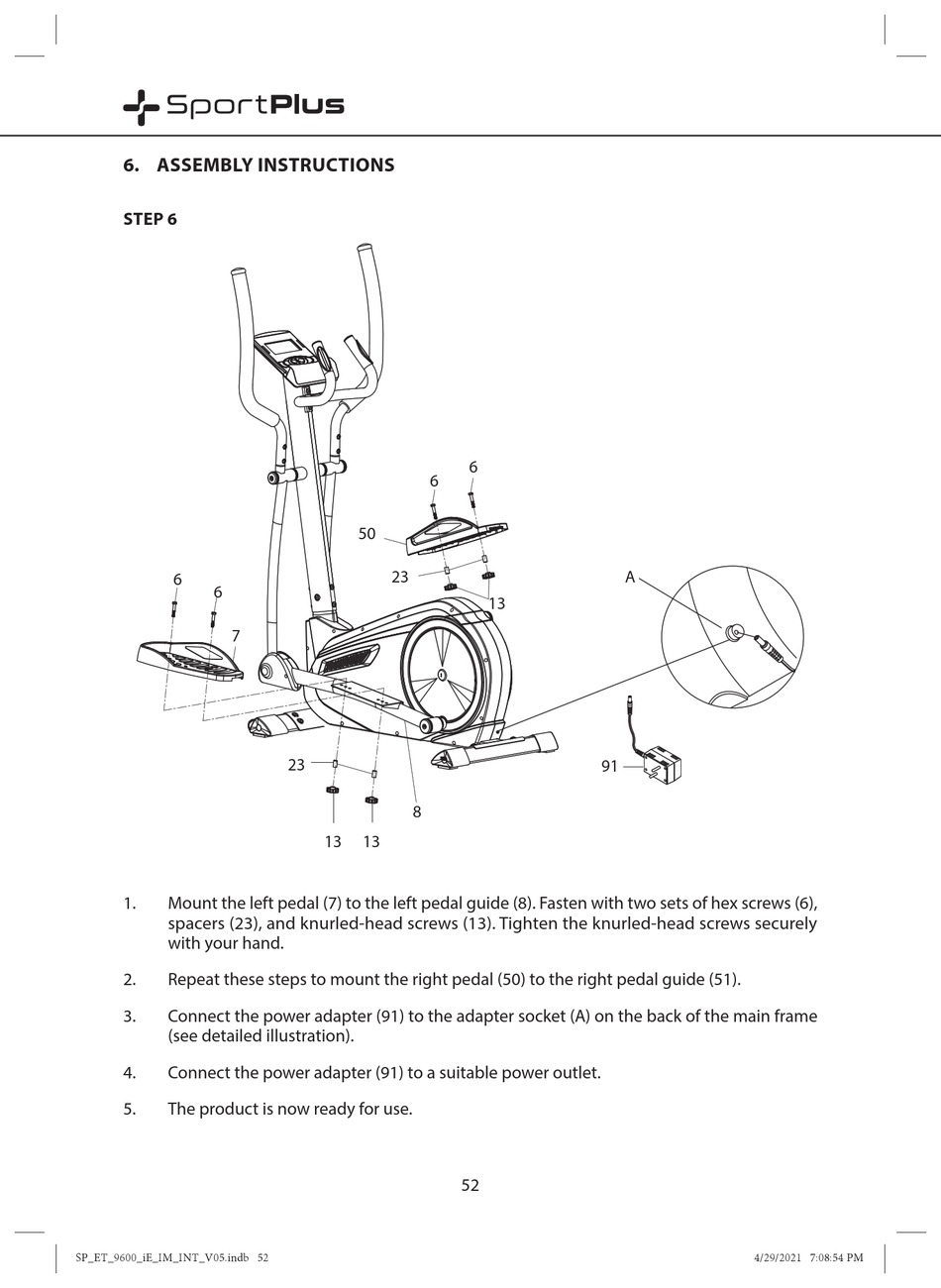

6. ASSEMBLY INSTRUCTIONS
STEP 6
6
6
7
1.
Mount the left pedal (7) to the left pedal guide (8). Fasten with two sets of hex screws (6),
spacers (23), and knurled-head screws (13). Tighten the knurled-head screws securely
with your hand.
2.
Repeat these steps to mount the right pedal (50) to the right pedal guide (51).
3.
Connect the power adapter (91) to the adapter socket (A) on the back of the main frame
(see detailed illustration).
4.
Connect the power adapter (91) to a suitable power outlet.
5.
The product is now ready for use.
SP_ET_9600_iE_IM_INT_V05.indb 52
6
50
23
23
8
13
13
52
6
A
13
91
4/29/2021 7:08:54 PM
