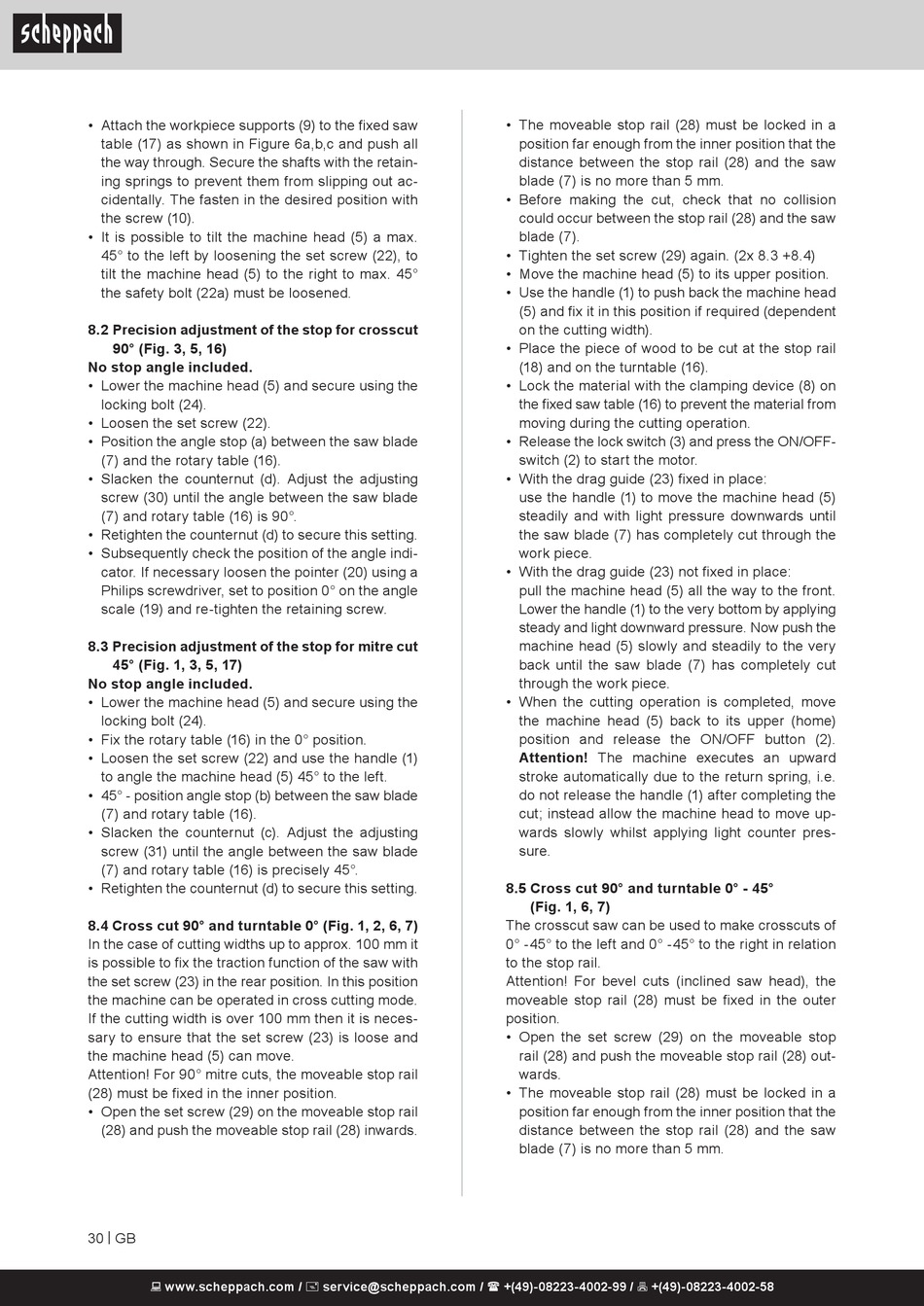

• Attach the workpiece supports (9) to the fixed saw
table (17) as shown in Figure 6a,b,c and push all
the way through. Secure the shafts with the retain-
ing springs to prevent them from slipping out ac-
cidentally. The fasten in the desired position with
the screw (10).
• It is possible to tilt the machine head (5) a max.
45° to the left by loosening the set screw (22), to
tilt the machine head (5) to the right to max. 45°
the safety bolt (22a) must be loosened.
8.2 Precision adjustment of the stop for crosscut
90° (Fig. 3, 5, 16)
No stop angle included.
• Lower the machine head (5) and secure using the
locking bolt (24).
• Loosen the set screw (22).
• Position the angle stop (a) between the saw blade
(7) and the rotary table (16).
• Slacken the counternut (d). Adjust the adjusting
screw (30) until the angle between the saw blade
(7) and rotary table (16) is 90°.
• Retighten the counternut (d) to secure this setting.
• Subsequently check the position of the angle indi-
cator. If necessary loosen the pointer (20) using a
Philips screwdriver, set to position 0° on the angle
scale (19) and re-tighten the retaining screw.
8.3 Precision adjustment of the stop for mitre cut
45° (Fig. 1, 3, 5, 17)
No stop angle included.
• Lower the machine head (5) and secure using the
locking bolt (24).
• Fix the rotary table (16) in the 0° position.
• Loosen the set screw (22) and use the handle (1)
to angle the machine head (5) 45° to the left.
• 45° - position angle stop (b) between the saw blade
(7) and rotary table (16).
• Slacken the counternut (c). Adjust the adjusting
screw (31) until the angle between the saw blade
(7) and rotary table (16) is precisely 45°.
• Retighten the counternut (d) to secure this setting.
8.4 Cross cut 90° and turntable 0° (Fig. 1, 2, 6, 7)
In the case of cutting widths up to approx. 100 mm it
is possible to fix the traction function of the saw with
the set screw (23) in the rear position. In this position
the machine can be operated in cross cutting mode.
If the cutting width is over 100 mm then it is neces-
sary to ensure that the set screw (23) is loose and
the machine head (5) can move.
Attention! For 90° mitre cuts, the moveable stop rail
(28) must be fixed in the inner position.
• Open the set screw (29) on the moveable stop rail
(28) and push the moveable stop rail (28) inwards.
