and power consumption.
8.2

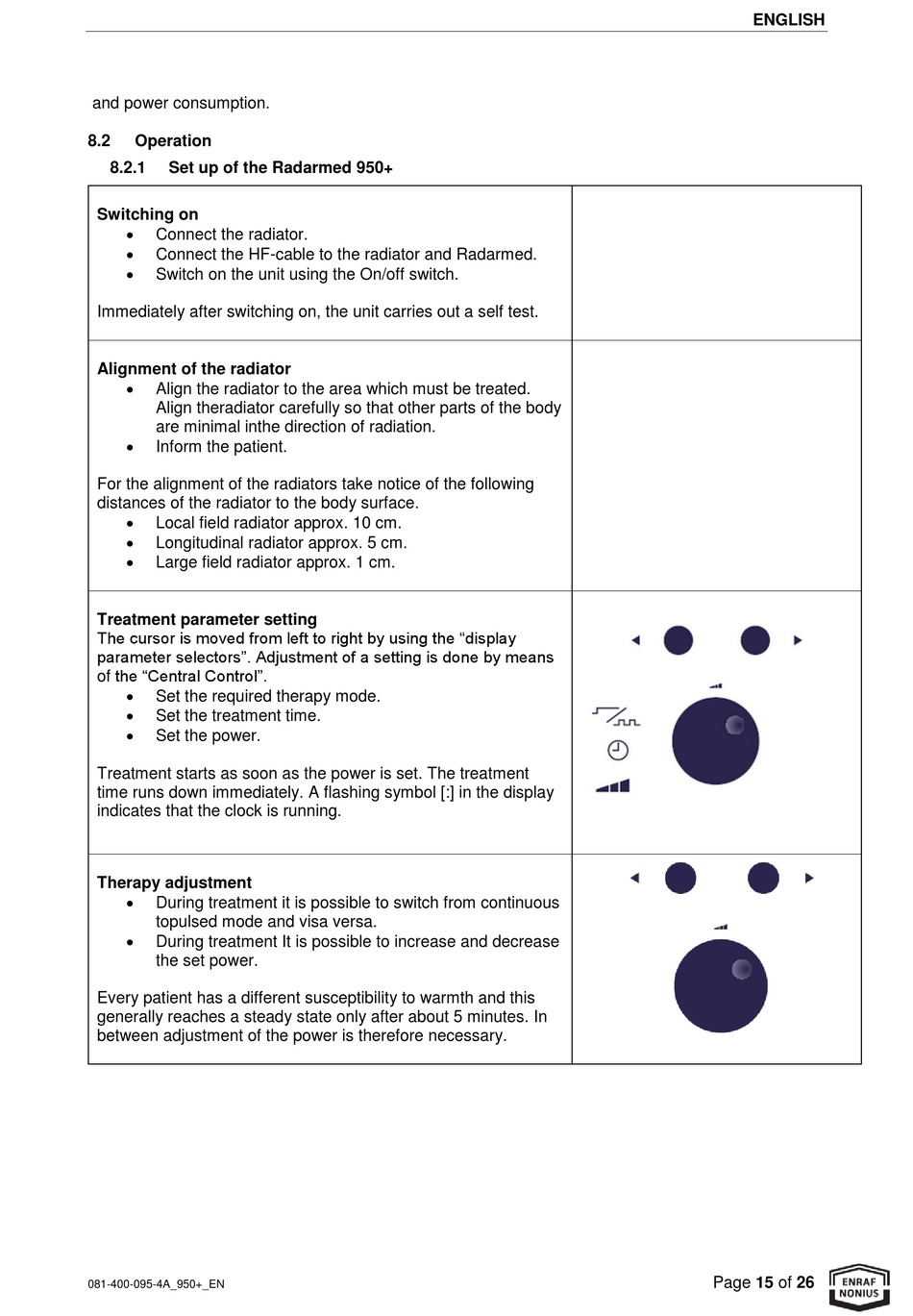

Operation

8.2.1 Set up of the Radarmed 950+
Switching on

Connect the radiator.

Connect the HF-cable to the radiator and Radarmed.

Switch on the unit using the On/off switch.
Immediately after switching on, the unit carries out a self test.
Alignment of the radiator

Align the radiator to the area which must be treated.
Align theradiator carefully so that other parts of the body
are minimal inthe direction of radiation.

Inform the patient.
For the alignment of the radiators take notice of the following
distances of the radiator to the body surface.

Local field radiator approx. 10 cm.

Longitudinal radiator approx. 5 cm.

Large field radiator approx. 1 cm.
Treatment parameter setting
The cursor is moved from left to right by using the "display
parameter selectors". Adjustment of a setting is done by means
of the "Central Control".

Set the required therapy mode.

Set the treatment time.

Set the power.
Treatment starts as soon as the power is set. The treatment
time runs down immediately. A flashing symbol [:] in the display
indicates that the clock is running.
Therapy adjustment

During treatment it is possible to switch from continuous
topulsed mode and visa versa.

During treatment It is possible to increase and decrease
the set power.
Every patient has a different susceptibility to warmth and this
generally reaches a steady state only after about 5 minutes. In
between adjustment of the power is therefore necessary.
