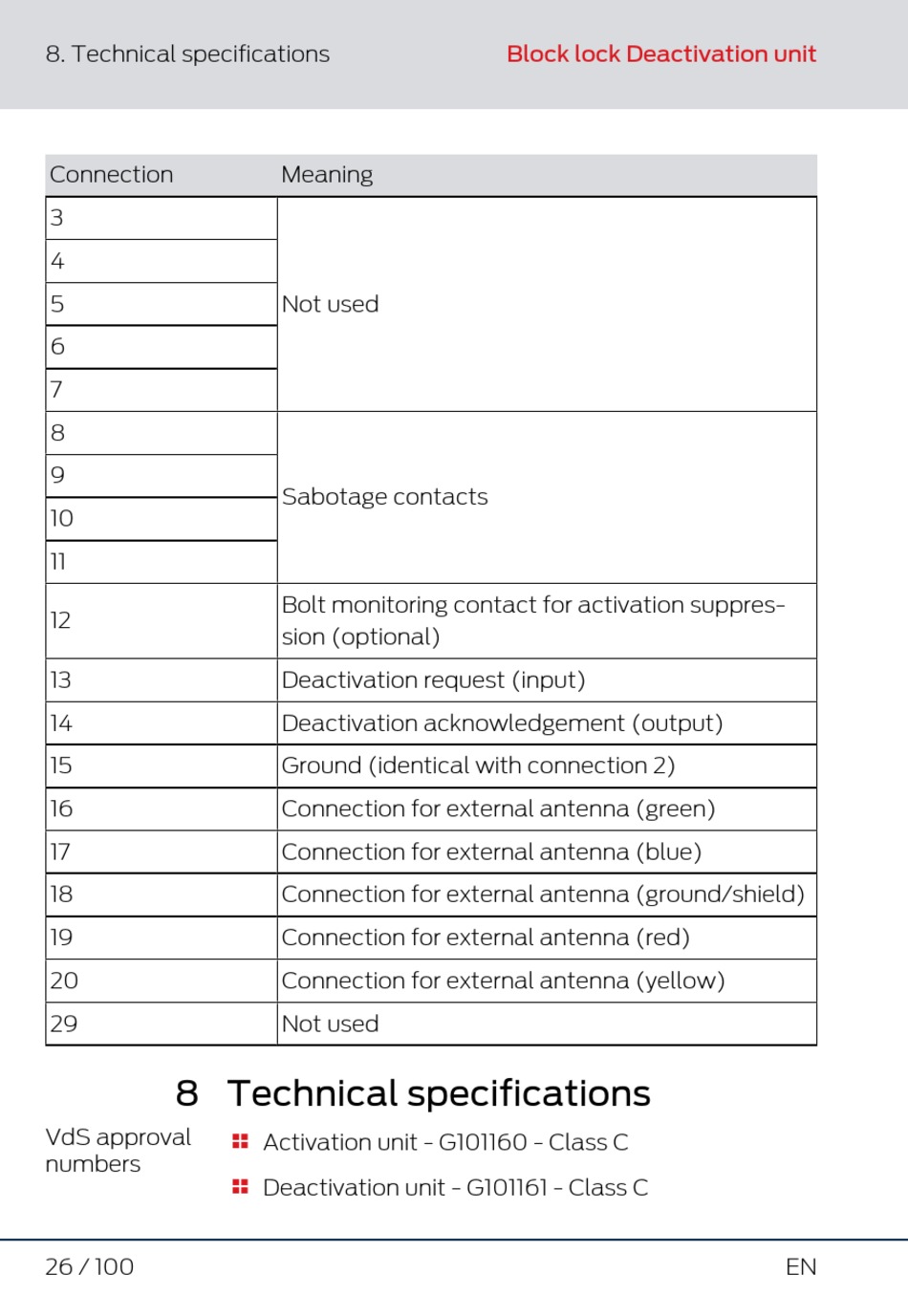

8. Technical specifications

Connection
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
29
8 Technical specifications
VdS approval
numbers
26 / 100
Meaning
Not used
Sabotage contacts
Bolt monitoring contact for activation suppres-
sion (optional)
Deactivation request (input)
Deactivation acknowledgement (output)
Ground (identical with connection 2)
Connection for external antenna (green)
Connection for external antenna (blue)
Connection for external antenna (ground/shield)
Connection for external antenna (red)
Connection for external antenna (yellow)
Not used
Activation unit - G101160 - Class C

Deactivation unit - G101161 - Class C

Block lock Deactivation unit
