Block lock Deactivation unit
Housing
Ambient conditions
Power supply
Connections
Range of the
transponder
Radio emissions
SRD
EN
Block lock function - G102014 - Class C

Dimensions
Colour
Material
Temperature range
Standard protection
rating
Operating voltage
Power consumption
per unit
Relay for switching
output
Cover contact (nor-
mally open contact)
With external antenna 1 cm to 3 cm
23.5 kHz - 26.5 kHz

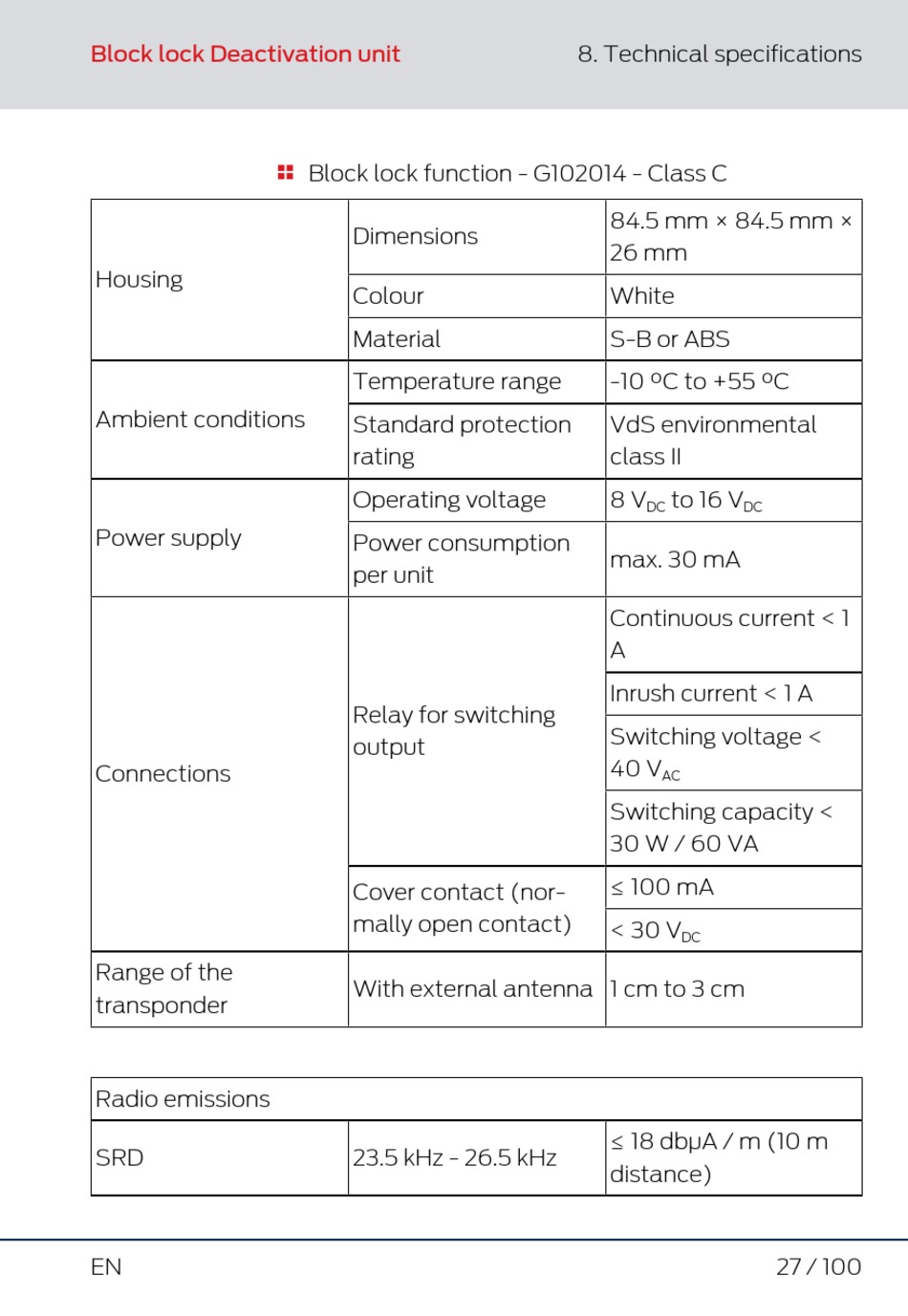

8. Technical specifications
84.5 mm × 84.5 mm ×
26 mm
White
S-B or ABS
-10 °C to +55 °C
VdS environmental
class II
8 V to 16 V
DC DC
max. 30 mA
Continuous current < 1
A
Inrush current < 1 A
Switching voltage <
40 V
AC
Switching capacity <
30 W / 60 VA
≤ 100 mA
< 30 V
DC
≤ 18 dbµA / m (10 m
distance)
