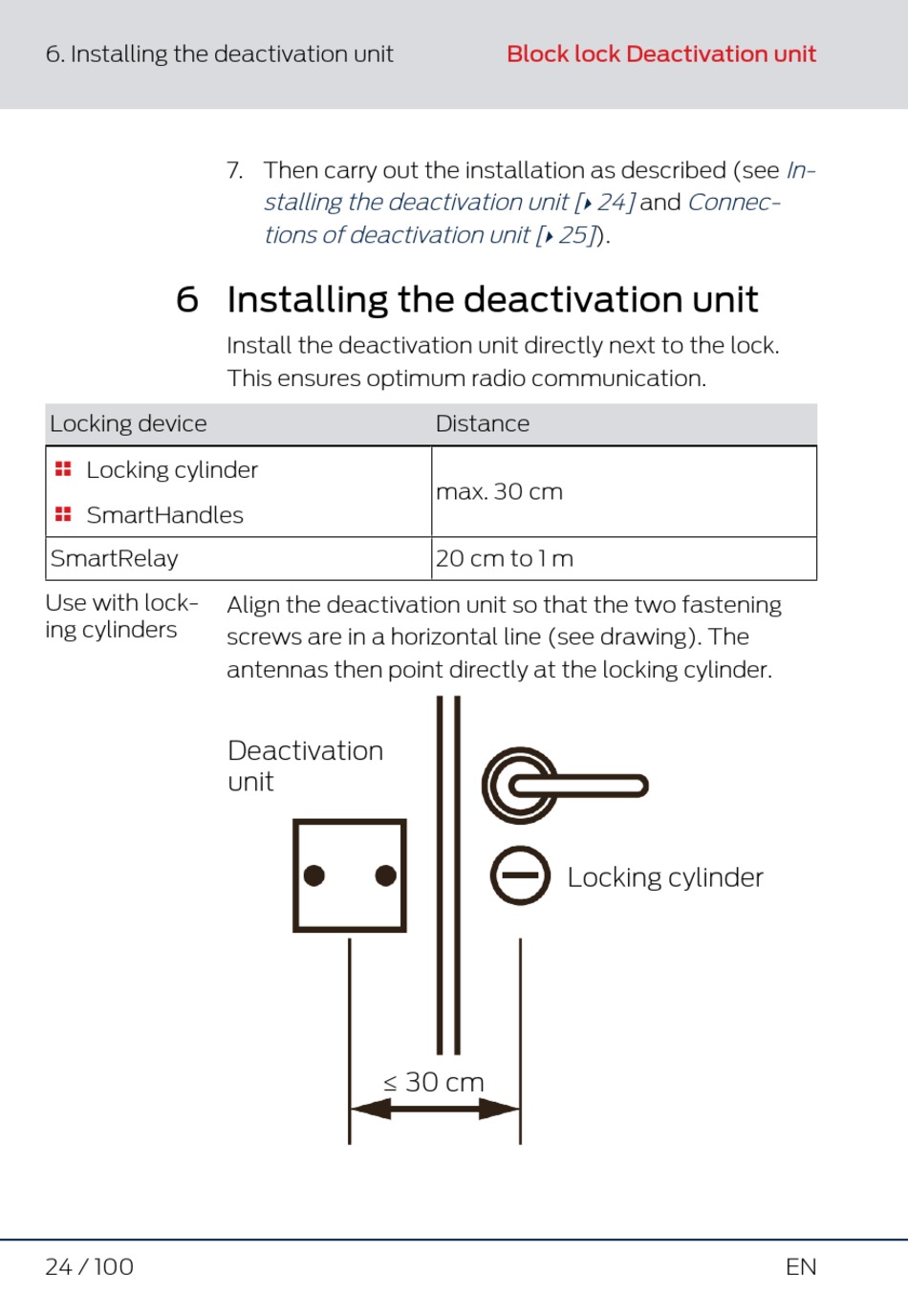

6. Installing the deactivation unit

6 Installing the deactivation unit
Locking device
Locking cylinder

SmartHandles

SmartRelay
Use with lock-
ing cylinders
24 / 100
7. Then carry out the installation as described (see
stalling the deactivation unit [
tions of deactivation unit [
Install the deactivation unit directly next to the lock.
This ensures optimum radio communication.
Align the deactivation unit so that the two fastening
screws are in a horizontal line (see drawing). The
antennas then point directly at the locking cylinder.
Deactivation
unit
≤ 30 cm
Block lock Deactivation unit
24]
}
25]
).
}
Distance
max. 30 cm
20 cm to 1 m
Locking cylinder
In-
and Connec-
