Block lock Deactivation unit

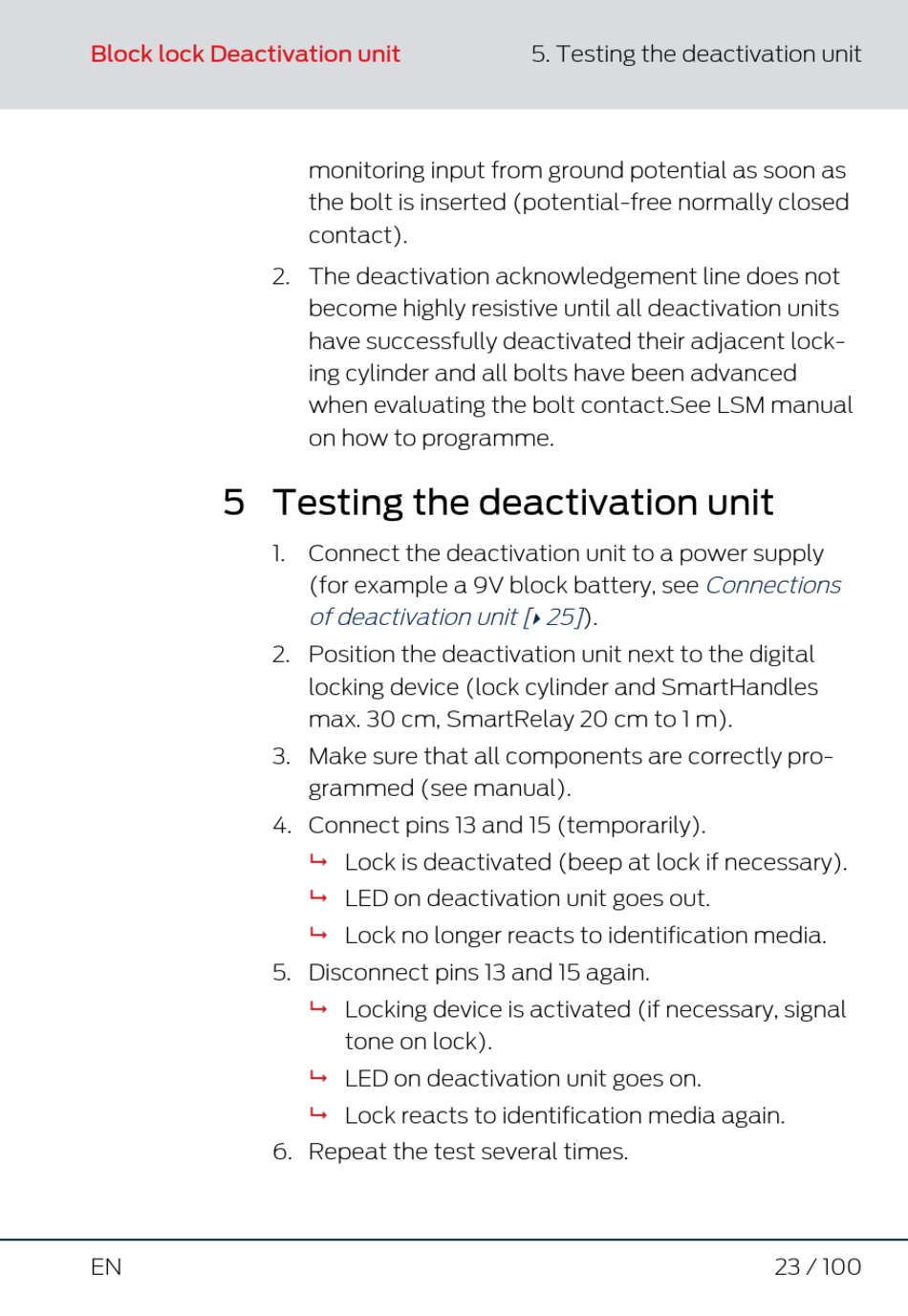

5 Testing the deactivation unit

EN
monitoring input from ground potential as soon as
the bolt is inserted (potential-free normally closed
contact).
2. The deactivation acknowledgement line does not
become highly resistive until all deactivation units
have successfully deactivated their adjacent lock-
ing cylinder and all bolts have been advanced
when evaluating the bolt contact.See LSM manual
on how to programme.
1. Connect the deactivation unit to a power supply
(for example a 9V block battery, see
of deactivation unit [
2. Position the deactivation unit next to the digital
locking device (lock cylinder and SmartHandles
max. 30 cm, SmartRelay 20 cm to 1 m).
3. Make sure that all components are correctly pro-
grammed (see manual).
4. Connect pins 13 and 15 (temporarily).
Lock is deactivated (beep at lock if necessary).
9
9 LED on deactivation unit goes out.
Lock no longer reacts to identification media.
9
5. Disconnect pins 13 and 15 again.
Locking device is activated (if necessary, signal
9
tone on lock).
9 LED on deactivation unit goes on.
Lock reacts to identification media again.
9
6. Repeat the test several times.
5. Testing the deactivation unit
25]
).
}
Connections
23 / 100
