Block lock Activation slave

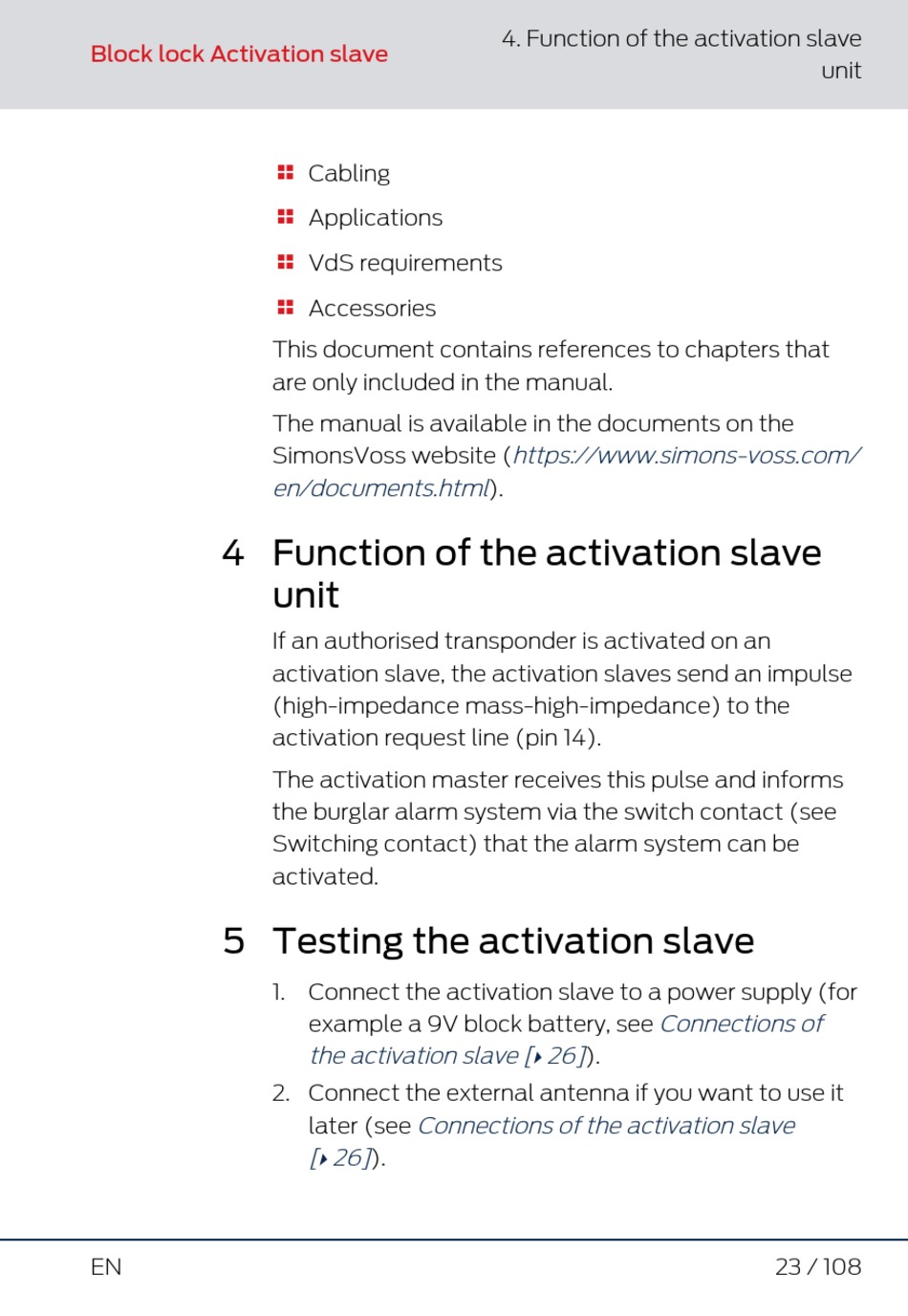

4 Function of the activation slave

5 Testing the activation slave

EN
Cabling

Applications

VdS requirements

Accessories

This document contains references to chapters that
are only included in the manual.
The manual is available in the documents on the
SimonsVoss website (
en/documents.html
unit
If an authorised transponder is activated on an
activation slave, the activation slaves send an impulse
(high-impedance mass-high-impedance) to the
activation request line (pin 14).
The activation master receives this pulse and informs
the burglar alarm system via the switch contact (see
Switching contact) that the alarm system can be
activated.
1. Connect the activation slave to a power supply (for
example a 9V block battery, see
the activation slave [
2. Connect the external antenna if you want to use it
Connections of the activation slave
later (see
[ 26]
).
}
4. Function of the activation slave
https://www.simons-voss.com/
).
Connections of
26]
).
}
unit
23 / 108
