Technical data (English)
Name plate
A MSIM034MLW05E
114x7275
B
C
Application MBP
Refrigerant (1) R404A, R452A, R507,
D
R448/9A, R454C, R455A,
R407A, R407F
M.W.P. HP (1) 28 bar
E
LP (1) 7 bar
PS = 28 bar
Voltage 380-400V~3N~50Hz
F
LRA 30,5 A
Serial No. 123456CG1921
G
Barcode Serial No:
EAN No.
XXXXXXXXXXXXX
* For exact values please refer name plate in unit
A: Model
B: Code number
C: Application, Protection
D: Refrigerant
E: System Service Pressure (Maximum working pressure)
F: Supply voltage, Locked Rotor Ampere, Maximum Continuous Current
G: Serial Number and bar code
Designation system for the Optyma™ Slim Pack range
OP - MSIM 034 ML W05 G
1 2 3 4 5
1 Application
M = MBP
L = LBP
2 Package
Condensing unit family: S = Slim Pack
3 Refrigerant
T = R404A/R507, R455A, R454C, R448A/R449A, R452A
S = R134a, R513A, R1234yf
V = R454C, R455A, R452A, R404A/R507
X = R404A / R507, R134a, R407A, R407F, R448A, R513A, R449A,
R452A
I = R404A / R507, R134a, R407A, R407F, R448A, R513A, R449A,
R452A, R454C, R455A
4 Condenser
M = Microchannel heat condenser
5 Swept volume
Displacement in cm 3: Example 034 = 34 cm
6 Compressor platform
DP/DX/DS = Fixed speed Reciprocating compressor
MP/MX/MS = Fixed speed Reciprocating compressor,
ML = Scroll compressor
7 Version
W05: Optyma™ Slim Pack standard version (see Version table)
W09: Optyma™ Slim Pack with Fan speed Controller
8 Voltage code
G = 230V/1-phase compressor & fan
E = 400V/3-phase compressor & 230V/1-phase fan
42 | AN37261865152501-010201 - 118A2176B
MADE IN INDIA
IP54
(2) R134a,R1234yf,
R513A
(2) 23 bar
(2) 5 bar
MCC 7,5 A
Danfoss A/S, 6430 Nordborg, Denmark
6 7 8
3
N

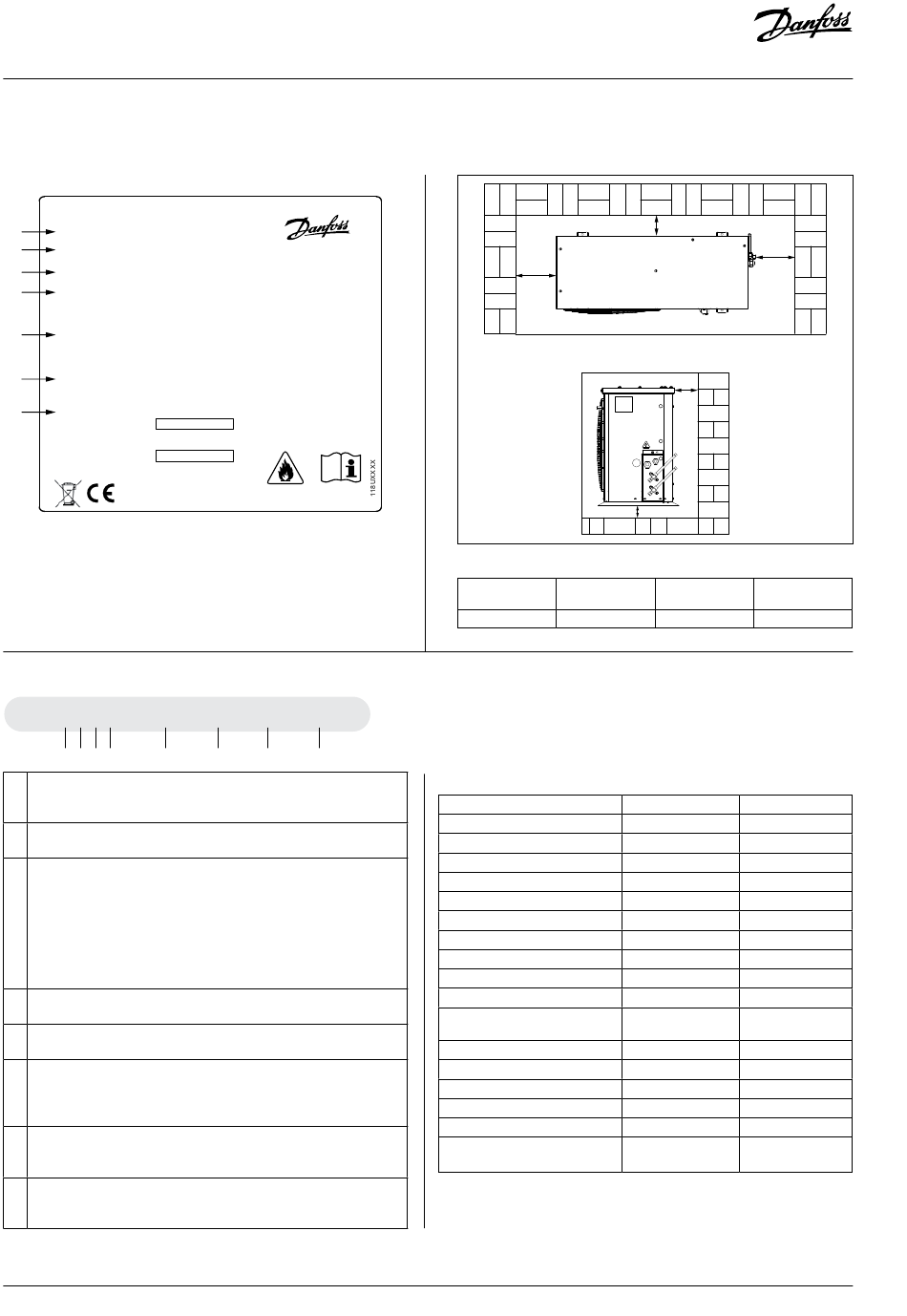

Picture 1 : Minimum mounting distances
L M
[mm] [mm]
250 50

Version control

Optyma™ Slim Pack
Condensing unit :IP level
Refrigerant
Compressor technology
Control box (pre-wired E-panel)
Microchannel condenser
Fan speed controller
Main switch (circuit breaker)
Filter drier (flare connections)
Sight glass
Crankcase heater
HP/LP adjustable pressostat
Access door(s)
Acoustic insulation
Discharge gas thermostat
HP/LP Alarm
Electrical Box design
Adjustable time delay
(Compressor)
* Compatible with A2L refrigerant
L
O
L
M
N
[mm]
550
W05* W09*
IP54 IP54
Group I / Group II Group I / Group II
Reciprocating Reciprocating
yes
yes
-
-
yes
yes
yes
Auto/Manual reset Auto/Manual reset
mode mode
yes for E-Box yes for E-Box
-
yes * (Provision) yes * (Provision)
yes* (Provision) yes* (Provision)
IP54 IP54
yes
