Instructions
• Micro channel heat exchanger
adequately cleaned to avoid clogging.
• Timer setting are set at 30 seconds during
normal running condition.
• Optyma™ Slim Pack condensing units are
factory fitted with flare type filter drier. While
changing the filter drier ensure that proper
model designation and direction of flow. Ensure
to conduct the leakage check after replacement.
The condenser must be checked at least once
a year for clogging and be cleaned if deemed
necessary. Access to the internal side of the
condenser takes place through the fan panel.
Microchannel coils tend to accumulate dirt on
the surface rather than inside, which makes them
easier to clean than fin-&-tube coils.
• Switch off the unit at main switch before
removing any panel from the condensing unit.
• All electrical equipments, PPEs, tools must be
compatiable and approved to use with A2L
refrigerants like R454C, R455A & R1234yf.
• Remove surface dirt, leaves, fibres, etc. with a
vacuum cleaner, equipped with a soft brush
or other soft attachment. Alternatively, blow
compressed air through the coil from the inside
out, and brush with a soft bristle. Do not use a
wire brush. Do not impact or scrape the coil with
the vacuum tube or air nozzle.
If the refrigerant system has been opened, the
system has to be flushed with dry air or nitrogen
to remove moisture and a new filter drier has to
be installed. If evacuation or recovery of
refrigerant has to be done, it shall be done in
such a way that no refrigerant can escape to the
environment.

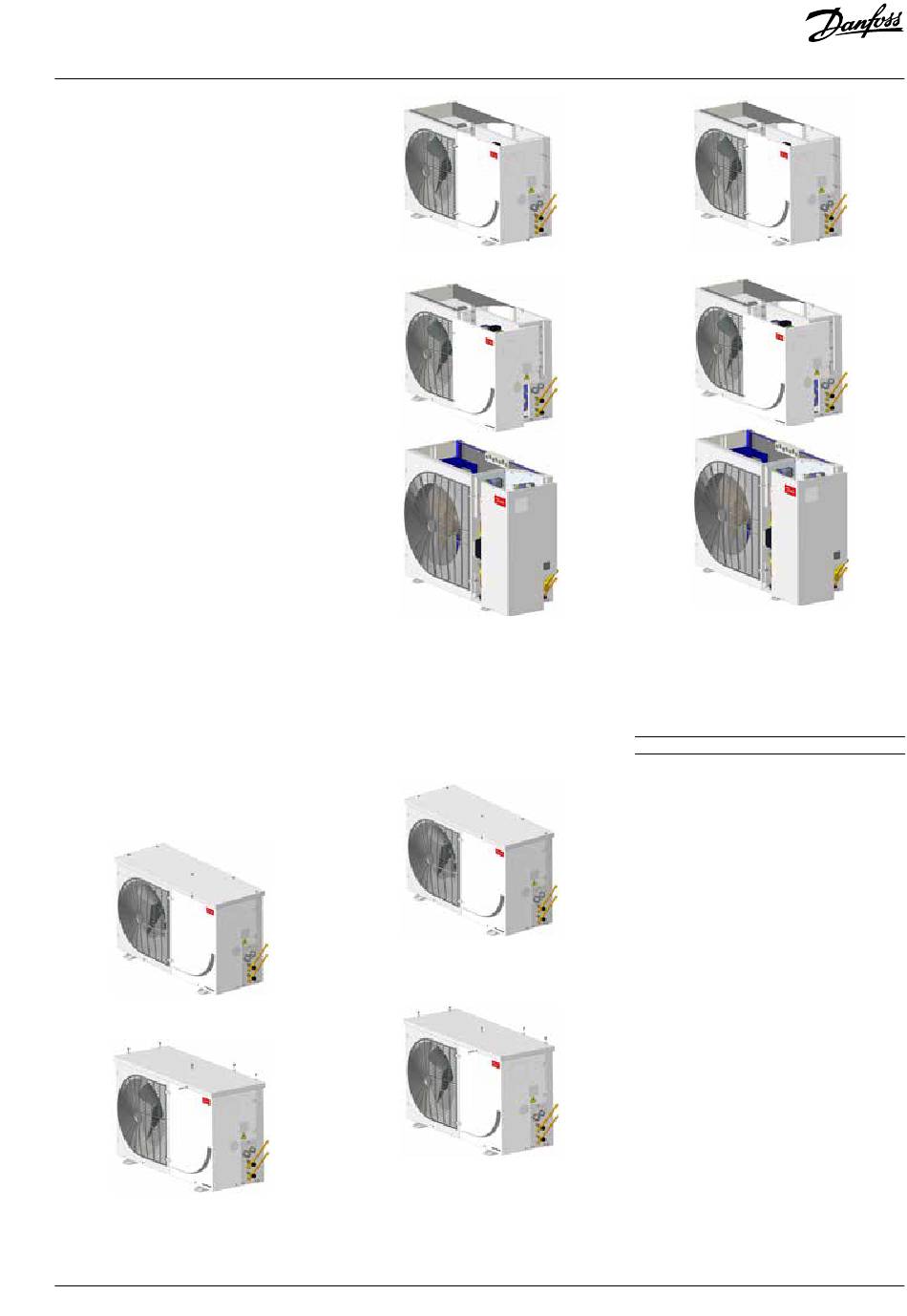

Service panel removal
W05 Version.
Step 1: Make sure that power supply has been
disconnected.
Step 2: Remove all top panel screws and then
remove Top panel.
© Danfoss | Climate Solutions | 2021.06
surface
Step 3: Remove all side panel screws.
Step 4: Remove side panel parallel to main switch.
Step 5: Electrical panel box should be in
closed condition. Ensure there is no refrigerant
penetration inside Electrical panel before
connecting to power supply.
Service
W09 Version.
procedure for
Step 1: Disconnect power supply. Make sure main
switch is in off condition before servicing.
Step 2: Remove all top panel screws and then
remove Top panel.
panel removal procedure
Step 3: Remove all side panel screws.
Step 4: Remove side panel on parallel to main
switch.
Step 5: Electrical panel box should be in
closed condition. Ensure there is no refrigerant
penetration inside Electrical panel before
connecting to power supply.
14 – Declaration of incorporation
for
Pressure Equipment Directive 2014/68/EU
EN 378-2:2016 - Refrigerating systems and Heat
Pumps - Safety and environmental requirements-
Parts 2: Design, construction, testing, marking
and documentation
Low Voltage Directive
60335-1:2012 + A11:2014- Household and
similar electrical appliances-Safety-Part
General requirements-for all above mentioned
condensing units
Eco-design DIRECTIVE
establishing a framework for the setting of Eco-
design requirements for energy-related products.
REGULATION (EU) 2015/1095, implementing Eco-
design Directive 2009/125/EC with regard to Eco-
design requirements for professional refrigerated
storage cabinets, blast cabinets, condensing units
and process Chiller.
• Condensing unit
produced according to standard "EN 13771-
2:2017". Compressor and condensing units
for refrigeration-performance
test methods- part 2: Condensing units.
Eco design declaration;
Coolselector®2 with code number (114X....) to
find the declaration.
118A2176B - AN37261865152501-010201x1 | 5
2014/35/EU EN
1:
2009/125/ EC,
measurements are
testing and
refer Danfoss
