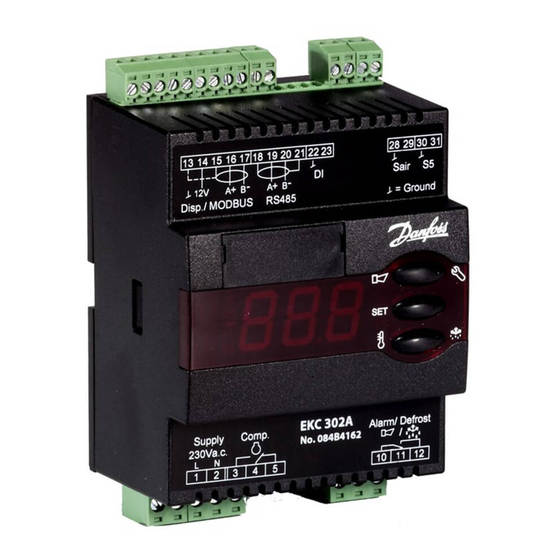

Danfoss EKC 302A Benutzerhandbuch

t = 0 - +55°C
amb
230 V a.c.
50/60 Hz
2.0 VA
10 V < U < 256 V
10 (6) A & (5 FLA, 30 LRA)
DO1 *
16 (8) A & (10 FLA, 60 LRA)
6 (3) A & (3 FLA, 18 LRA)
DO2 *
10 (6) A & (5 FLA, 30 LRA)
6 (3) A & (3 FLA, 18 LRA)
DO3 *
10 (6) A & (5 FLA, 30 LRA)
4 (1)A Min. 100 mA**
DO4 **
* EKC 302: DO1 are 20 A relays. DO2 and DO3 are 16 A relays. DO4 are 10 A relays.
The max. load listed above must be observed when connecting without zero-
crossing control. When connecting with zero-crossing control, the load must be
increased to the value indicated by 2)
** Gold plating ensures make function with small contact loads
1) With external relay (c70=ON) (zero-crossing control disabled)
2) Without external relay (c70=OFF) (zero-crossing control enabled)
Data communication LON RS 485 / MOD-bus:
RI8PK153 08-2011
INSTRUCTIONS
EKC 302A
EKC 302B
Type: Pt 1000 (1000 Ω /0°C ) /
IEC 60730
1)
2)
1)
2)
1)
2)
Ptc 1000 (1000 Ω /25°C ) /
NTC-M2020 (5000 Ω / 25°C)
( o06)
MOD-bus
LON
