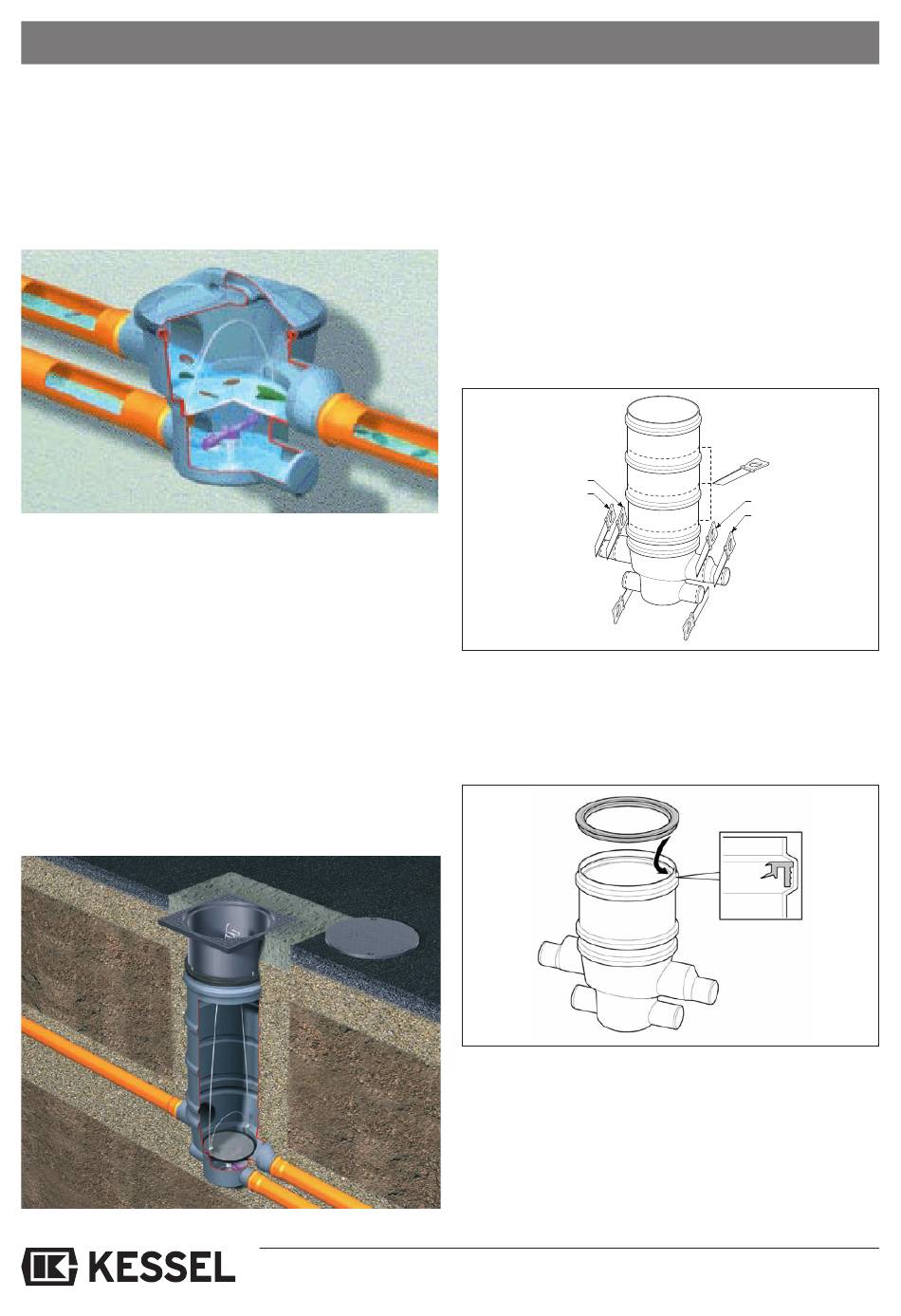

4.1 KESSEL rainwater filter system 400
Place the KESSEL rainwater filter for free-standing set-up in the
for installation in an exposed drain pipe
position required. To guarantee optimum function, the rainwa-
ter filter has to be aligned with a spirit level. Connect the inlet,
the outlet to the cistern and the overflow to the sewer.
Note! In the case of heavy rain, the tank may become full under
certain circumstances. The tank attachment and connections to
the pipes must be able to withstand these loads. Cover and tank
must always be connected with the quick-clamping closure
4.2 KESSEL rainwater filter system 400
for installation in the ground
When installing the rainwater filter, it is imperative to pay atten-
tion to the locally determined frost-free depth. To guarantee
smooth operation in winter, too, the inlet, outlet and overflow
pipes must be laid at a frost-free depth.
Unless otherwise specified by the authorities, the frost-free
depth is as a rule located at approx. 80 cm.

4. Installation and assembly

Please also take the required gradient of the drainpipe to
the filter and from the filter to the cistern into account when
determining the installation depth.
• Shorten the filter shaft to the required height if necessary (H1,

4.2.1 Preparation

H2 or H3)
• Saw off the inlet and outlet connecting pipes according to the
required nominal width (DN 100 / 150)
• Saw the connecting pipe for the outlet to the cistern off at the
required side (DN 100)
• Insert the lip seal in the groove, the lips have to be facing
downwards (see section enlargement in the drawing)
B
DIN 150
DIN 100
DIN 100
• Grease the lip seal
• Insert the attachment piece, adjust the height, shorten if ne-
cessary and fix in place using the clamping ring
• Ground slopes up to a maximum of 5° can be compensated
for with the continuously height-adjustable and inclinable
attachment piece.
18
Einbau Tiefe
DIN 150
DIN 100
DIN 100
