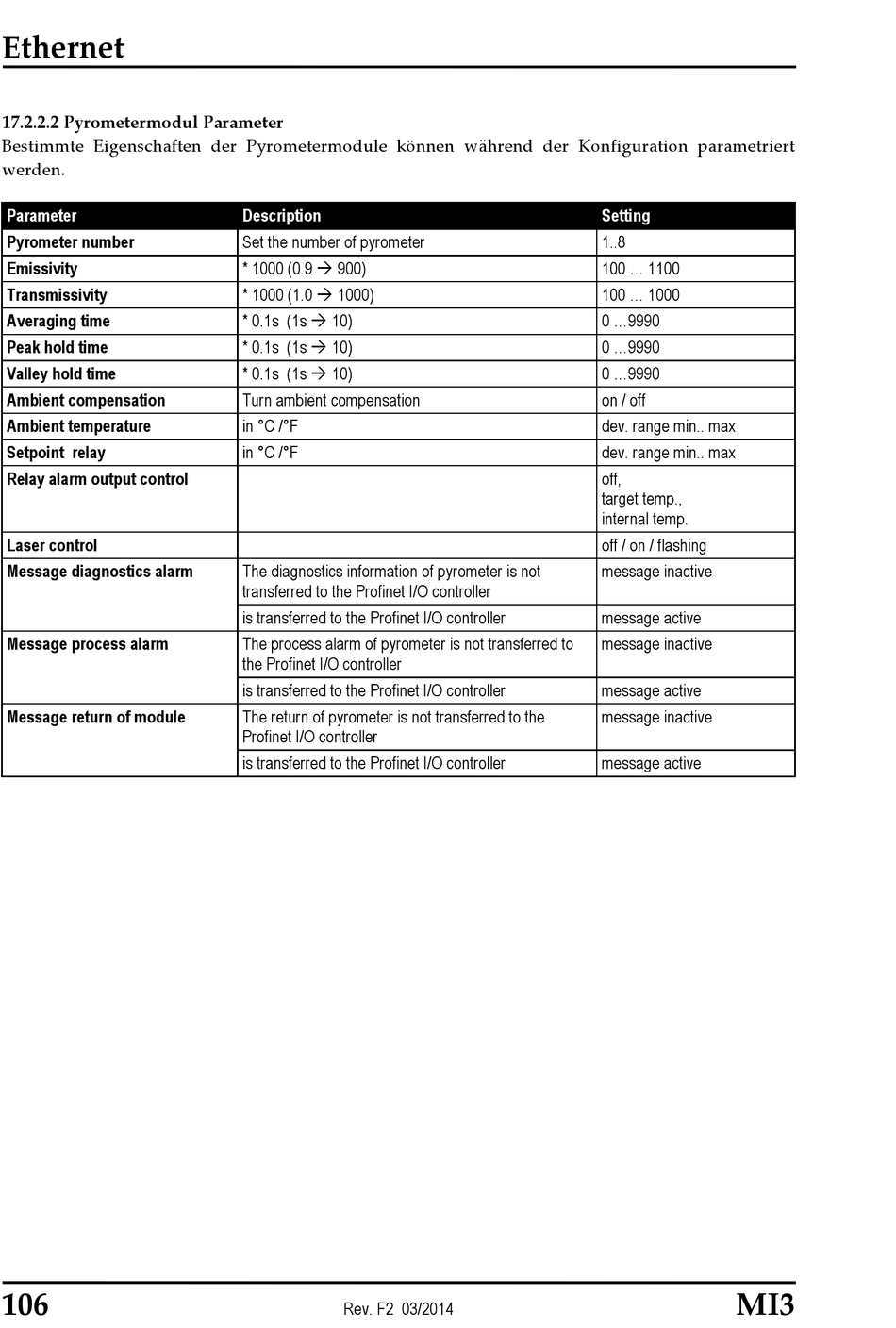

17.2.2.2 Pyrometermodul Parameter

Bestimmte Eigenschaften der Pyrometermodule können während der Konfiguration parametriert
werden.
Parameter
Pyrometer number
Emissivity
Transmissivity
Averaging time
Peak hold time
Valley hold time
Ambient compensation
Ambient temperature
Setpoint relay
Relay alarm output control
Laser control
Message diagnostics alarm
Message process alarm
Message return of module
106
Description
Set the number of pyrometer
* 1000 (0.9  900)
* 1000 (1.0  1000)
* 0.1s (1s  10)
* 0.1s (1s  10)
* 0.1s (1s  10)
Turn ambient compensation
in °C /°F
in °C /°F
The diagnostics information of pyrometer is not
transferred to the Profinet I/O controller
is transferred to the Profinet I/O controller
The process alarm of pyrometer is not transferred to
the Profinet I/O controller
is transferred to the Profinet I/O controller
The return of pyrometer is not transferred to the
Profinet I/O controller
is transferred to the Profinet I/O controller
Rev. F2 03/2014
Setting
1..8
100 ... 1100
100 ... 1000
0 ...9990
0 ...9990
0 ...9990
on / off
dev. range min.. max
dev. range min.. max
off,
target temp.,
internal temp.
off / on / flashing
message inactive
message active
message inactive
message active
message inactive
message active
