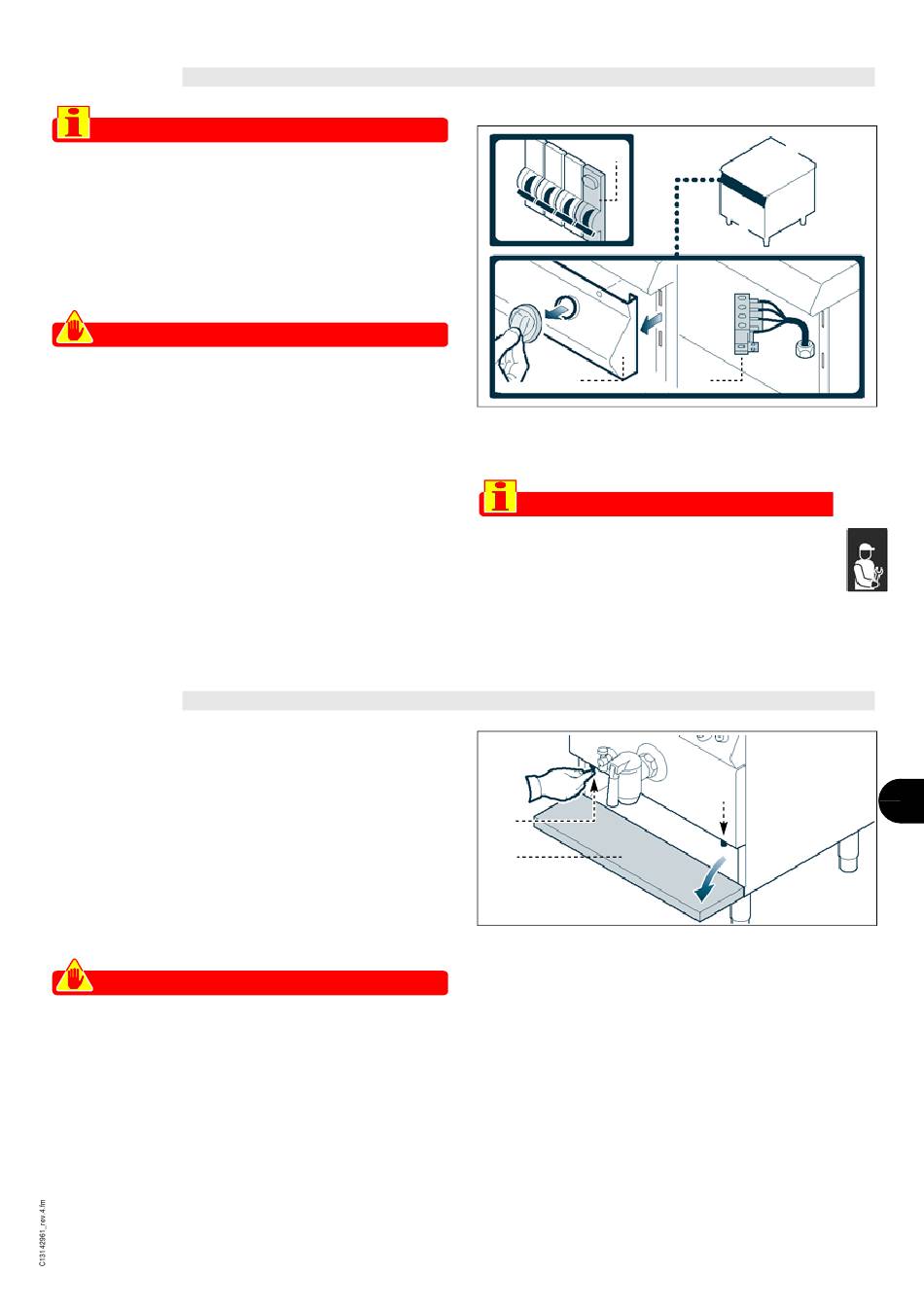

ELECTRICAL CONNECTION

Important
The connection must be made by author-
ised, skilled personnel, in accordance with
the relevant legal requirements, using ap-
propriate and specified materials. The ap-
pliance is supplied with operating voltage
400V/3, or 230V/3 on request.
Caution - warning
Before doing any work, cut off the mains elec-
tricity supply.
Connect the appliance to the mains electricity sup-
ply as follows.
1 - If not already present, install a circuit-breaker
(A) with overload cutout and differential safety
breaker close to the appliance.
2 - Remove the control panel (B).
3 - Connect the circuit-breaker (A) to the terminal
board (C) of the appliance as shown in the dia-
gram and in the electrical system diagram at
the back of the manual.
RESETTING THE APPLIANCE
If the safety thermostat is tripped because the water
level in the jacket is too low, the appliance has to be
restored to working conditions as follows.
1 - Check and if necessary top up the water level in
the jacket (see page 9).
2 - Open the door (A).
3 - Press the button (B) of the safety thermostat to
restore the electricity supply.
4 - Close the door (A) when the operation is com-
plete.
Caution - warning
If the safety thermostat is tripped too often,
and the water level in the jacket is correct, call
the after-sales service.
A
B
N.B.: use a cable with at least H05RN-F character-
istics.
Important
When connecting, take care to connect
the neutral and earth lines.
4 - Replace the control panel (B) on comple-
tion of the operation.
B
A
