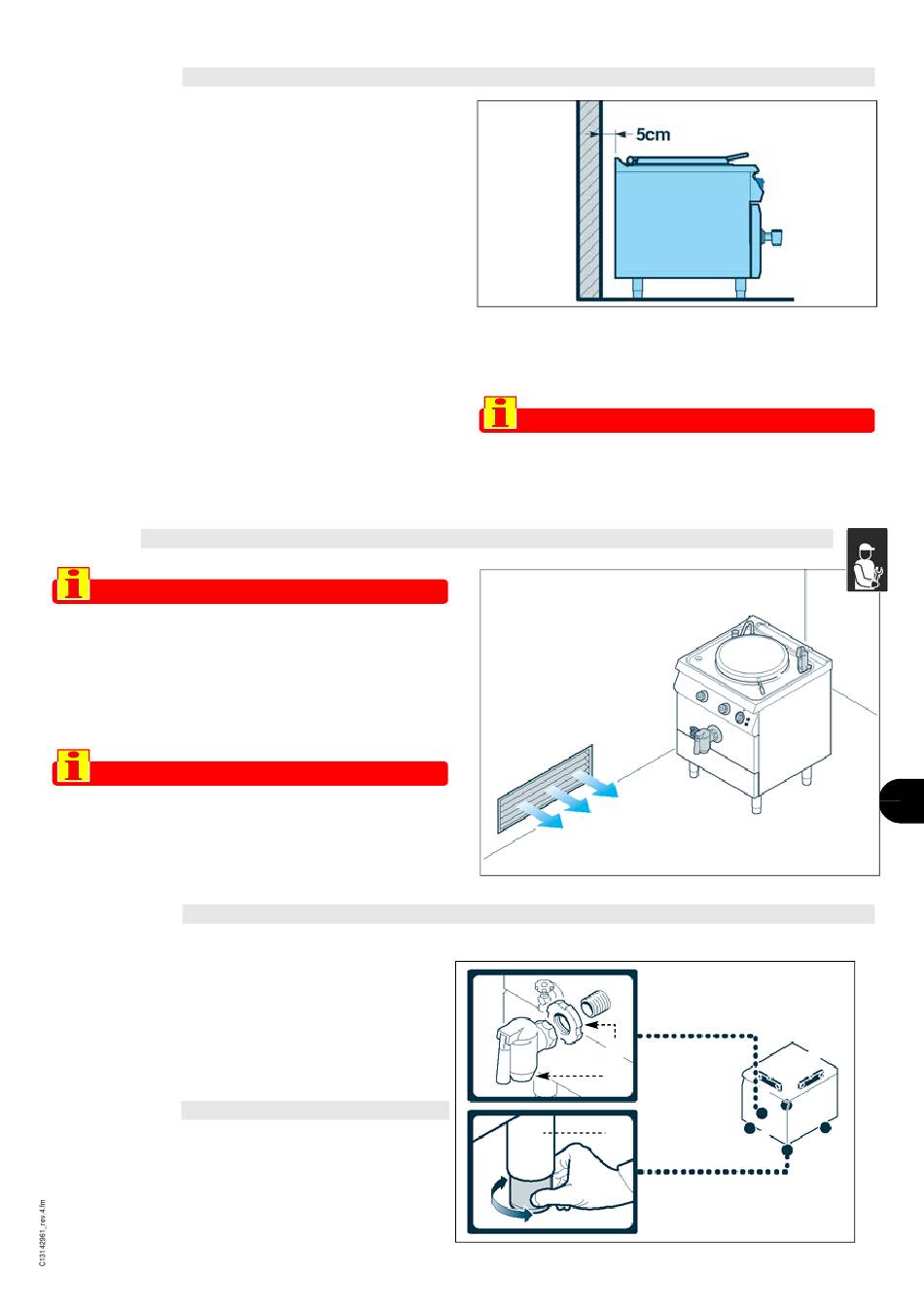

INSTALLATION OF THE APPLIANCE

All installation stages must be considered right
from production of the general layout.
starting these stages, as well as deciding the place
of installation, if necessary, the person authorised
to carry out these operations must organise a
"safety plan" to protect the people directly in-
volved, and he must also ensure strict compliance
with all legal requirements, especially those relat-
ing to mobile work-sites.
The place of installation must have all the connec-
tions needed to supply the appliance and dispose of
the production residues, must be suitably lit and
must meet all legal health and hygiene require-
ments to prevent the contamination of the foods.
If necessary, fix the exact position of each individual
appliance or subassembly by mark coordinates to
locate them correctly.

ROOM VENTILATION

Important
The room where the appliance is installed
must have air inlets to ensure that the ap-
pliance can operate correctly and provide
the necessary air exchange in the room it-
self.
Important
The air inlets must be of appropriate size
and must be protected by gratings and pla-
ced so that they cannot be obstructed.
INSTALLATION OF DISMANTLED PARTS
The appliance is delivered with some components
dismantled and they have to be fitted during instal-
lation.
In particular, fit the feet (A) and the drain tap (B).
N.B.: before screwing the tap (B) onto the pan's drain
pipe, fit the ring nut (C).
LEVELLING
Adjust the floor-mounted feet (A) to level the appli-
ance.
Before
Appliances must be at some distance from the wall
(at least 5 cm if the wall is not designed to be resist-
ant to a temperature of at least 150°C).
Important
Provide a drain in the floor for the well to
empty into.
- 13 -
C
B
A
IDM-39603602900.tif
IDM-39603602800.tif
