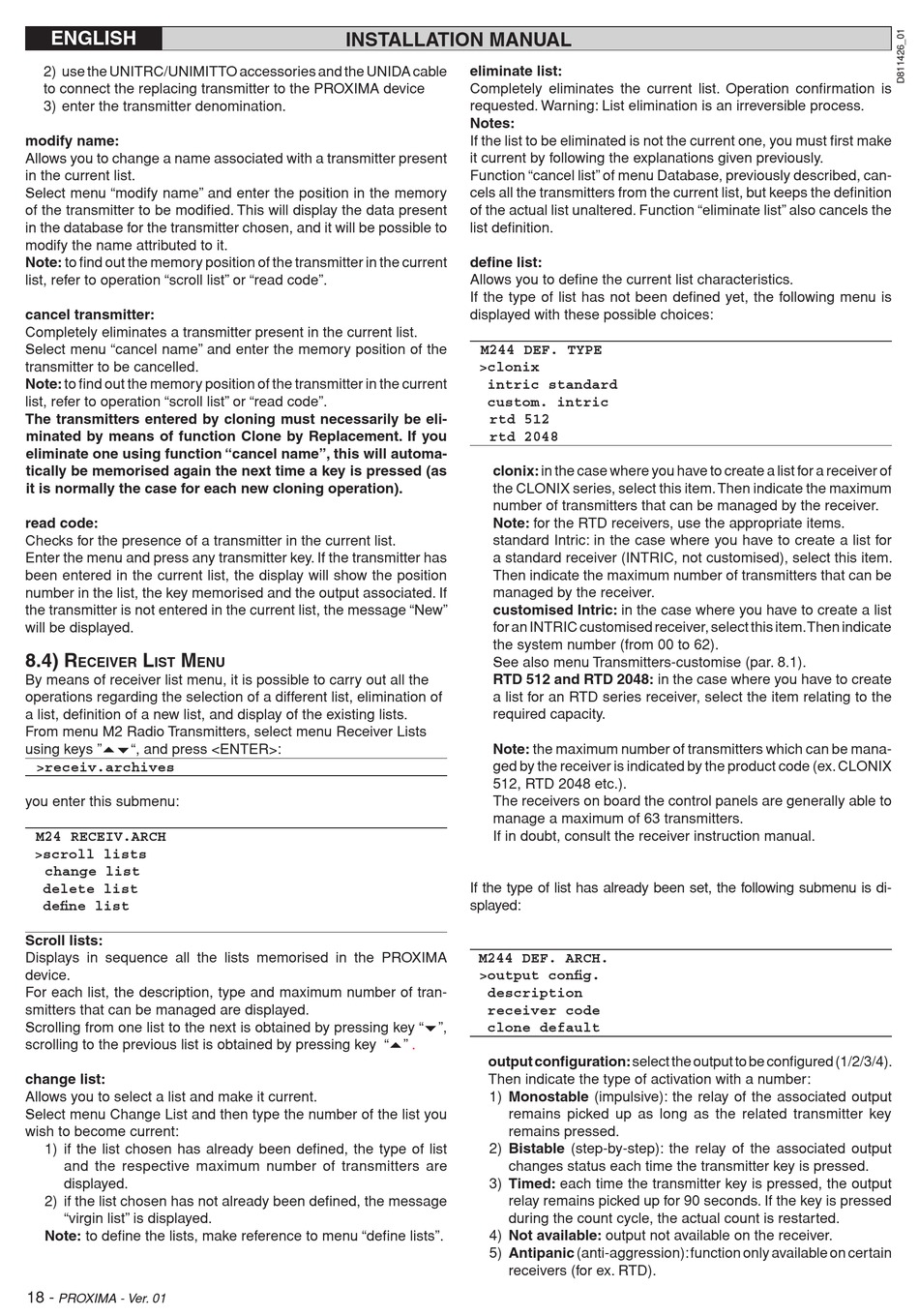

ENGLISH
2) use the UNITRC/UNIMITTO accessories and the UNIDA cable
to connect the replacing transmitter to the PROXIMA device
3) enter the transmitter denomination.
modify name:
Allows you to change a name associated with a transmitter present
in the current list.
Select menu "modify name" and enter the position in the memory
of the transmitter to be modified. This will display the data present
in the database for the transmitter chosen, and it will be possible to
modify the name attributed to it.
Note: to find out the memory position of the transmitter in the current
list, refer to operation "scroll list" or "read code".
cancel transmitter:
Completely eliminates a transmitter present in the current list.
Select menu "cancel name" and enter the memory position of the
transmitter to be cancelled.
Note: to find out the memory position of the transmitter in the current
list, refer to operation "scroll list" or "read code".
The transmitters entered by cloning must necessarily be eli-
minated by means of function Clone by Replacement. If you
eliminate one using function "cancel name", this will automa-
tically be memorised again the next time a key is pressed (as
it is normally the case for each new cloning operation).
read code:
Checks for the presence of a transmitter in the current list.
Enter the menu and press any transmitter key. If the transmitter has
been entered in the current list, the display will show the position
number in the list, the key memorised and the output associated. If
the transmitter is not entered in the current list, the message "New"
will be displayed.
8.4) R L M
ECEIVER IST ENu
By means of receiver list menu, it is possible to carry out all the
operations regarding the selection of a different list, elimination of
a list, definition of a new list, and display of the existing lists.
From menu M2 Radio Transmitters, select menu Receiver Lists
using keys "56", and press <ENTER>:
>receiv.archives
you enter this submenu:
M24 RECEIV.ARCH
>scroll lists
change list
delete list
define list
Scroll lists:
Displays in sequence all the lists memorised in the PROXIMA
device.
For each list, the description, type and maximum number of tran-
smitters that can be managed are displayed.
Scrolling from one list to the next is obtained by pressing key "6",
scrolling to the previous list is obtained by pressing key "5"
change list:
Allows you to select a list and make it current.
Select menu Change List and then type the number of the list you
wish to become current:
1) if the list chosen has already been defined, the type of list
and the respective maximum number of transmitters are
displayed.
2) if the list chosen has not already been defined, the message
"virgin list" is displayed.
Note: to define the lists, make reference to menu "define lists".
18 -
PROXIMA - Ver. 01
INSTALLATION MANUAL
eliminate list:
Completely eliminates the current list. Operation confirmation is
requested. Warning: List elimination is an irreversible process.
Notes:
If the list to be eliminated is not the current one, you must first make
it current by following the explanations given previously.
Function "cancel list" of menu Database, previously described, can-
cels all the transmitters from the current list, but keeps the definition
of the actual list unaltered. Function "eliminate list" also cancels the
list definition.
define list:
Allows you to define the current list characteristics.
If the type of list has not been defined yet, the following menu is
displayed with these possible choices:
M244 DEF. TYPE
>clonix
intric standard
custom. intric
rtd 512
rtd 2048
clonix: in the case where you have to create a list for a receiver of
the CLONIX series, select this item. Then indicate the maximum
number of transmitters that can be managed by the receiver.
Note: for the RTD receivers, use the appropriate items.
standard Intric: in the case where you have to create a list for
a standard receiver (INTRIC, not customised), select this item.
Then indicate the maximum number of transmitters that can be
managed by the receiver.
customised Intric: in the case where you have to create a list
for an INTRIC customised receiver, select this item. Then indicate
the system number (from 00 to 62).
See also menu Transmitters-customise (par. 8.1).
RTD 512 and RTD 2048: in the case where you have to create
a list for an RTD series receiver, select the item relating to the
required capacity.
Note: the maximum number of transmitters which can be mana-
ged by the receiver is indicated by the product code (ex. CLONIX
512, RTD 2048 etc.).
The receivers on board the control panels are generally able to
manage a maximum of 63 transmitters.
If in doubt, consult the receiver instruction manual.
If the type of list has already been set, the following submenu is di-
splayed:
M244 DEF. ARCH.
>output config.
description
receiver code
clone default
.
output configuration: select the output to be configured (1/2/3/4).
Then indicate the type of activation with a number:
1) Monostable (impulsive): the relay of the associated output
remains picked up as long as the related transmitter key
remains pressed.
2) Bistable (step-by-step): the relay of the associated output
changes status each time the transmitter key is pressed.
3) Timed: each time the transmitter key is pressed, the output
relay remains picked up for 90 seconds. If the key is pressed
during the count cycle, the actual count is restarted.
4) Not available: output not available on the receiver.
5) Antipanic (anti-aggression): function only available on certain
receivers (for ex. RTD).
