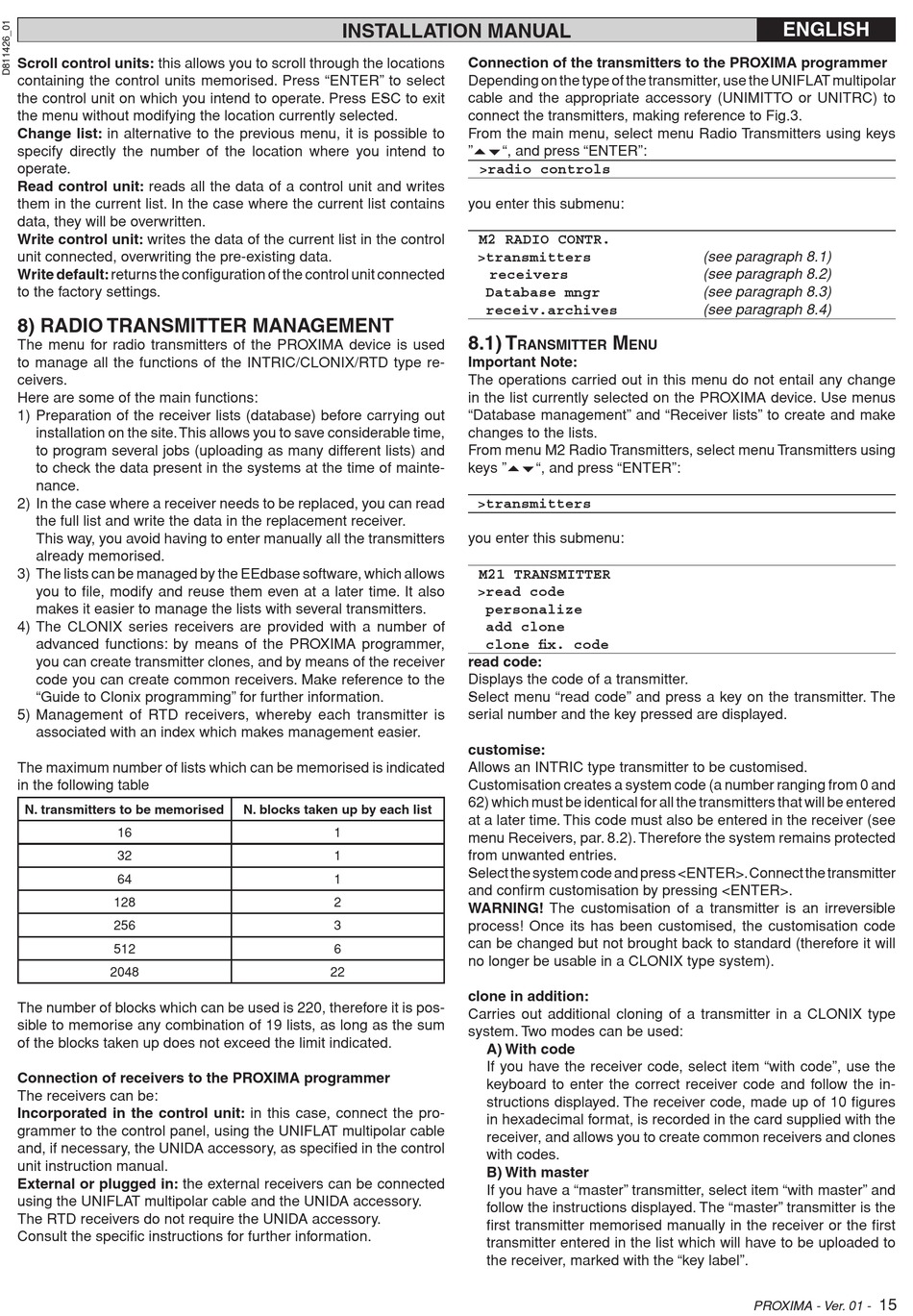

Scroll control units: this allows you to scroll through the locations
containing the control units memorised. Press "ENTER" to select
the control unit on which you intend to operate. Press ESC to exit
the menu without modifying the location currently selected.
Change list: in alternative to the previous menu, it is possible to
specify directly the number of the location where you intend to
operate.
Read control unit: reads all the data of a control unit and writes
them in the current list. In the case where the current list contains
data, they will be overwritten.
Write control unit: writes the data of the current list in the control
unit connected, overwriting the pre-existing data.
Write default: returns the configuration of the control unit connected
to the factory settings.
8) RADIO TRANSMITTER MANAGEMENT
The menu for radio transmitters of the PROXIMA device is used
to manage all the functions of the INTRIC/CLONIX/RTD type re-
ceivers.
Here are some of the main functions:
1) Preparation of the receiver lists (database) before carrying out
installation on the site. This allows you to save considerable time,
to program several jobs (uploading as many different lists) and
to check the data present in the systems at the time of mainte-
nance.
2) In the case where a receiver needs to be replaced, you can read
the full list and write the data in the replacement receiver.
This way, you avoid having to enter manually all the transmitters
already memorised.
3) The lists can be managed by the EEdbase software, which allows
you to file, modify and reuse them even at a later time. It also
makes it easier to manage the lists with several transmitters.
4) The CLONIX series receivers are provided with a number of
advanced functions: by means of the PROXIMA programmer,
you can create transmitter clones, and by means of the receiver
code you can create common receivers. Make reference to the
"Guide to Clonix programming" for further information.
5) Management of RTD receivers, whereby each transmitter is
associated with an index which makes management easier.
The maximum number of lists which can be memorised is indicated
in the following table
N. transmitters to be memorised
16
32
64
128
256
512
2048
The number of blocks which can be used is 220, therefore it is pos-
sible to memorise any combination of 19 lists, as long as the sum
of the blocks taken up does not exceed the limit indicated.
Connection of receivers to the PROXIMA programmer
The receivers can be:
Incorporated in the control unit: in this case, connect the pro-
grammer to the control panel, using the UNIFLAT multipolar cable
and, if necessary, the UNIDA accessory, as specified in the control
unit instruction manual.
External or plugged in: the external receivers can be connected
using the UNIFLAT multipolar cable and the UNIDA accessory.
The RTD receivers do not require the UNIDA accessory.
Consult the specific instructions for further information.
INSTALLATION MANUAL
N. blocks taken up by each list
1
1
1
2
3
6
22
Connection of the transmitters to the PROXIMA programmer
Depending on the type of the transmitter, use the UNIFLAT multipolar
cable and the appropriate accessory (UNIMITTO or UNITRC) to
connect the transmitters, making reference to Fig.3.
From the main menu, select menu Radio Transmitters using keys
"56", and press "ENTER":
>radio controls
you enter this submenu:
M2 RADIO CONTR.
>transmitters
receivers
Database mngr
receiv.archives
8.1) T M
RANSMITTER ENu
Important Note:
The operations carried out in this menu do not entail any change
in the list currently selected on the PROXIMA device. Use menus
"Database management" and "Receiver lists" to create and make
changes to the lists.
From menu M2 Radio Transmitters, select menu Transmitters using
keys "56", and press "ENTER":
>transmitters
you enter this submenu:
M21 TRANSMITTER
>read code
personalize
add clone
clone fix. code
read code:
Displays the code of a transmitter.
Select menu "read code" and press a key on the transmitter. The
serial number and the key pressed are displayed.
customise:
Allows an INTRIC type transmitter to be customised.
Customisation creates a system code (a number ranging from 0 and
62) which must be identical for all the transmitters that will be entered
at a later time. This code must also be entered in the receiver (see
menu Receivers, par. 8.2). Therefore the system remains protected
from unwanted entries.
Select the system code and press <ENTER>. Connect the transmitter
and confirm customisation by pressing <ENTER>.
WARNING! The customisation of a transmitter is an irreversible
process! Once its has been customised, the customisation code
can be changed but not brought back to standard (therefore it will
no longer be usable in a CLONIX type system).
clone in addition:
Carries out additional cloning of a transmitter in a CLONIX type
system. Two modes can be used:
A) With code
If you have the receiver code, select item "with code", use the
keyboard to enter the correct receiver code and follow the in-
structions displayed. The receiver code, made up of 10 figures
in hexadecimal format, is recorded in the card supplied with the
receiver, and allows you to create common receivers and clones
with codes.
B) With master
If you have a "master" transmitter, select item "with master" and
follow the instructions displayed. The "master" transmitter is the
first transmitter memorised manually in the receiver or the first
transmitter entered in the list which will have to be uploaded to
the receiver, marked with the "key label".
ENGLISH
(see paragraph 8.1)
(see paragraph 8.2)
(see paragraph 8.3)
(see paragraph 8.4)
