Input (mains) wiring 3-phase
Connect 3–phase AC input power wiring to terminals
L1, L2, L3, and ground the cable.
Single phase input drives
Connect single phase power wiring to L1, L2, and
ground the cable.
Check the IOM for specific frame size considerations.
2.2 Single and multi-pump control wiring
CAUTION:
Before using the Genie, set DI18 to Stop (terminal 18 open) to prevent the unit from starting the
motor. Keep terminal 18 open to avoid an unintended motor rotation. Apply the Start signal to
the controller only when pump operation is desired.
22
Output wiring to motors
Connect output motor wires to terminal block la-
beled U, V, W, and ground the cable.

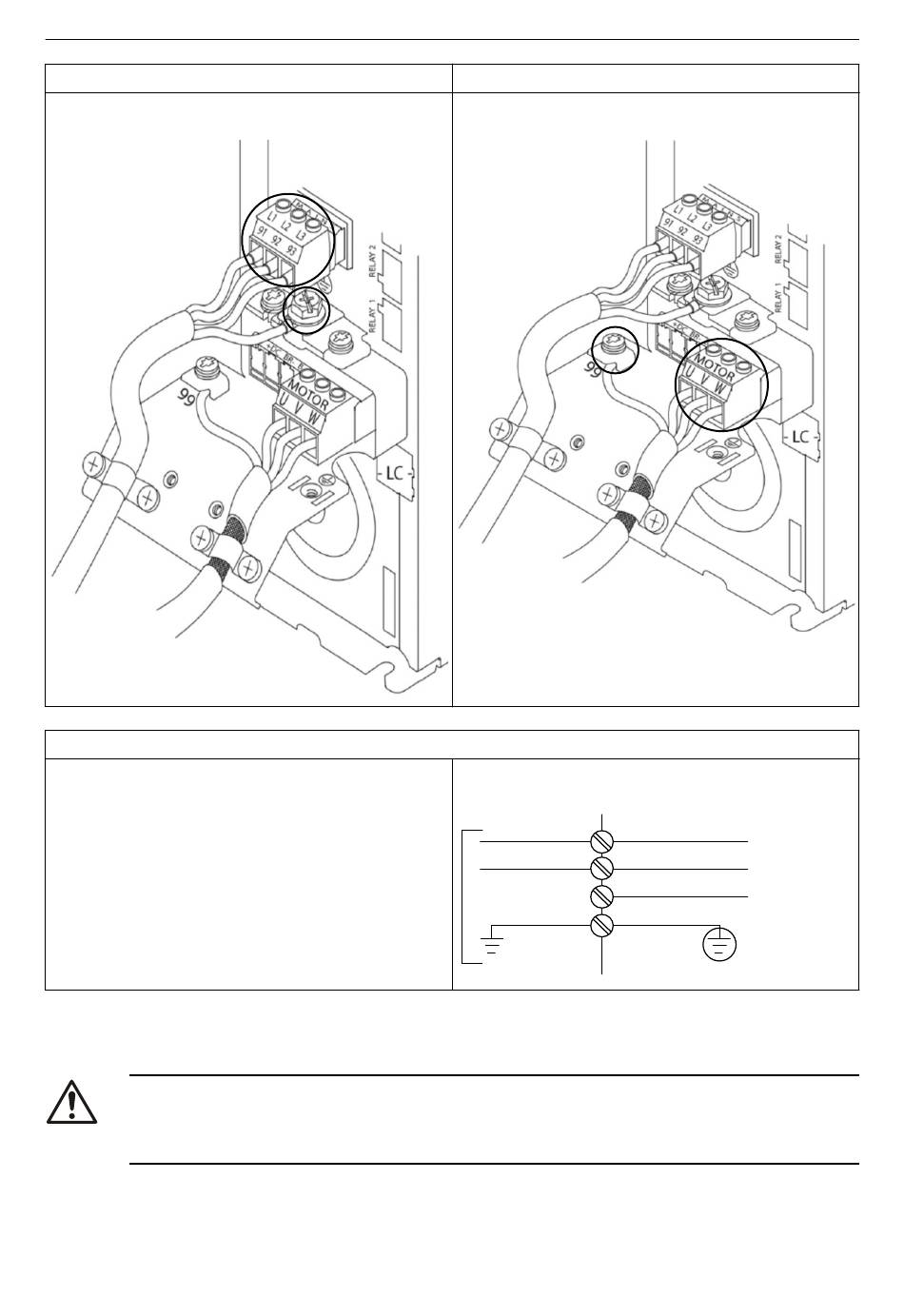

Figure 5: Power input wiring for single-phase drive
91 (L1)
92 (L2)
93 (L3)
95 PE
