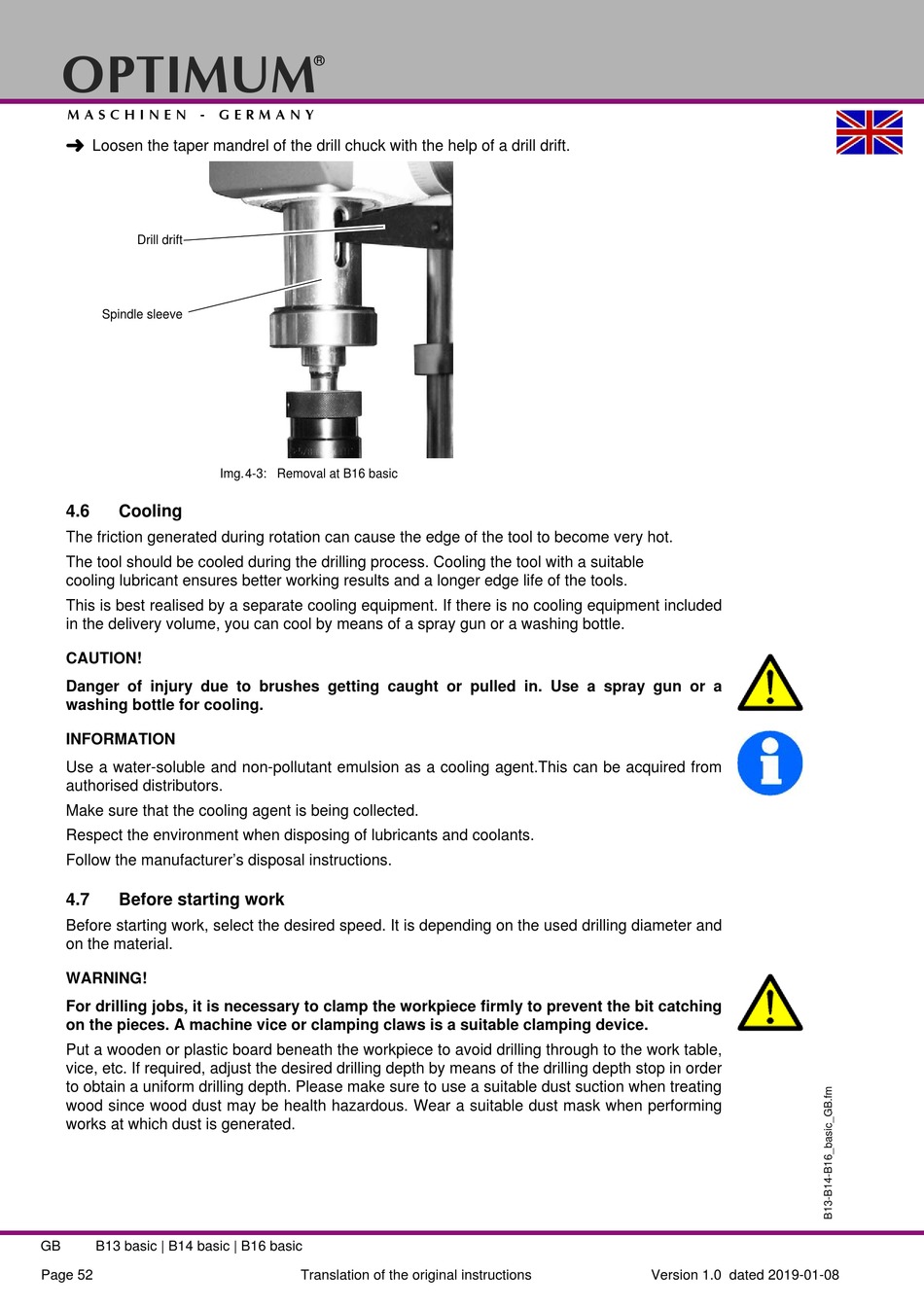

Loosen the taper mandrel of the drill chuck with the help of a drill drift.
Drill drift
Spindle sleeve
4.6

Cooling

The friction generated during rotation can cause the edge of the tool to become very hot.
The tool should be cooled during the drilling process. Cooling the tool with a suitable
cooling lubricant ensures better working results and a longer edge life of the tools.
This is best realised by a separate cooling equipment. If there is no cooling equipment included
in the delivery volume, you can cool by means of a spray gun or a washing bottle.
CAUTION!
Danger of injury due to brushes getting caught or pulled in. Use a spray gun or a
washing bottle for cooling.
INFORMATION
Use a water-soluble and non-pollutant emulsion as a cooling agent.This can be acquired from
authorised distributors.
Make sure that the cooling agent is being collected.
Respect the environment when disposing of lubricants and coolants.
Follow the manufacturer's disposal instructions.
4.7

Before starting work

Before starting work, select the desired speed. It is depending on the used drilling diameter and
on the material.
WARNING!
For drilling jobs, it is necessary to clamp the workpiece firmly to prevent the bit catching
on the pieces. A machine vice or clamping claws is a suitable clamping device.
Put a wooden or plastic board beneath the workpiece to avoid drilling through to the work table,
vice, etc. If required, adjust the desired drilling depth by means of the drilling depth stop in order
to obtain a uniform drilling depth. Please make sure to use a suitable dust suction when treating
wood since wood dust may be health hazardous. Wear a suitable dust mask when performing
works at which dust is generated.
GB B13 basic | B14 basic | B16 basic
Page 52
®
Img.4-3: Removal at B16 basic
