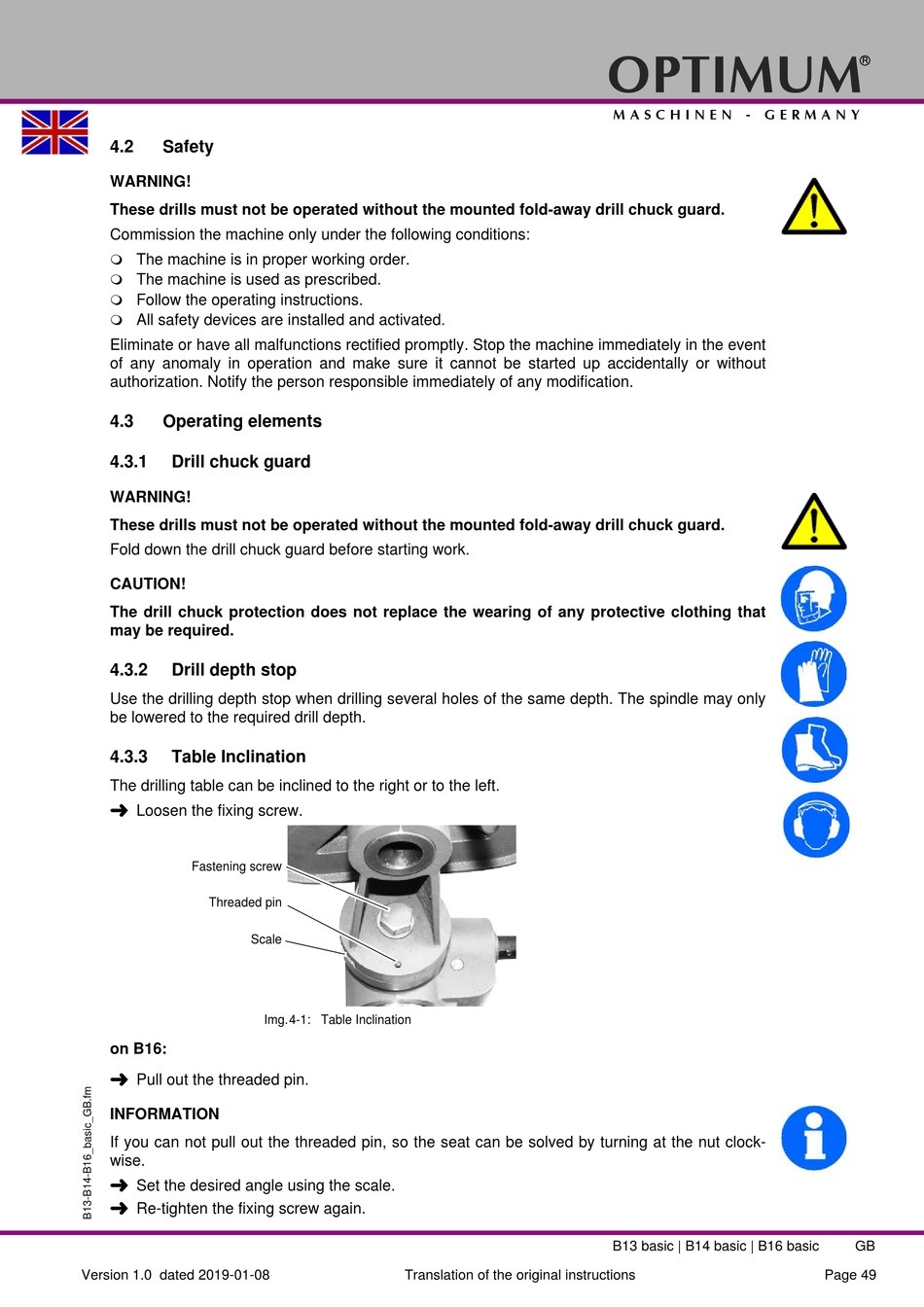

4.2

Safety

WARNING!
These drills must not be operated without the mounted fold-away drill chuck guard.
Commission the machine only under the following conditions:

The machine is in proper working order.

The machine is used as prescribed.

Follow the operating instructions.

All safety devices are installed and activated.
Eliminate or have all malfunctions rectified promptly. Stop the machine immediately in the event
of any anomaly in operation and make sure it cannot be started up accidentally or without
authorization. Notify the person responsible immediately of any modification.
4.3

Operating elements

4.3.1

Drill chuck guard

WARNING!
These drills must not be operated without the mounted fold-away drill chuck guard.
Fold down the drill chuck guard before starting work.
CAUTION!
The drill chuck protection does not replace the wearing of any protective clothing that
may be required.
4.3.2

Drill depth stop

Use the drilling depth stop when drilling several holes of the same depth. The spindle may only
be lowered to the required drill depth.
4.3.3

Table Inclination

The drilling table can be inclined to the right or to the left.

Loosen the fixing screw.
Fastening screw
Threaded pin
Scale
on B16:

Pull out the threaded pin.
INFORMATION
If you can not pull out the threaded pin, so the seat can be solved by turning at the nut clock-
wise.

Set the desired angle using the scale.

Re-tighten the fixing screw again.
