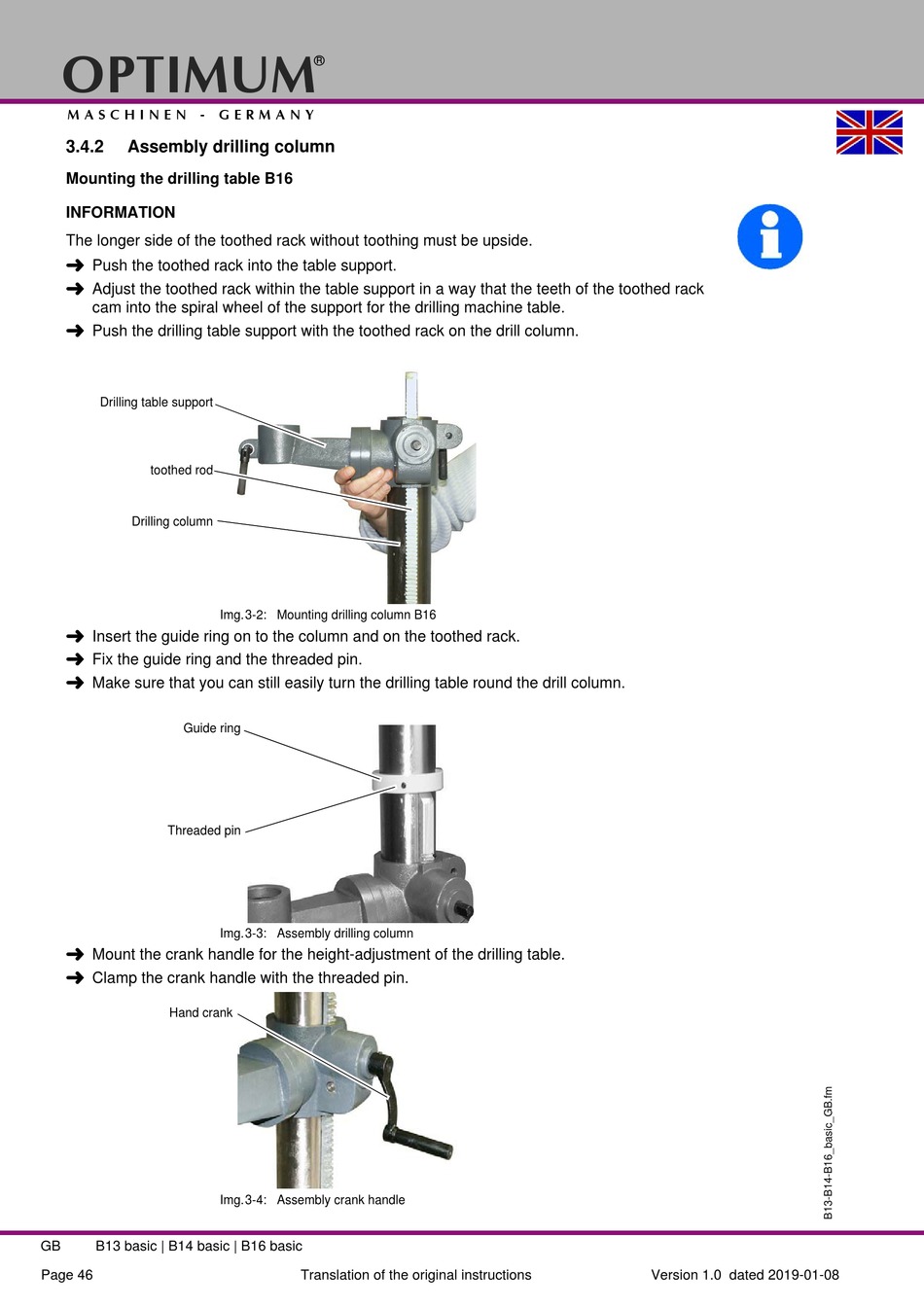

3.4.2

Assembly drilling column

Mounting the drilling table B16
INFORMATION
The longer side of the toothed rack without toothing must be upside.

Push the toothed rack into the table support.

Adjust the toothed rack within the table support in a way that the teeth of the toothed rack
cam into the spiral wheel of the support for the drilling machine table.

Push the drilling table support with the toothed rack on the drill column.
Drilling table support
toothed rod
Drilling column

Insert the guide ring on to the column and on the toothed rack.

Fix the guide ring and the threaded pin.

Make sure that you can still easily turn the drilling table round the drill column.
Guide ring
Threaded pin

Mount the crank handle for the height-adjustment of the drilling table.

Clamp the crank handle with the threaded pin.
Hand crank
GB B13 basic | B14 basic | B16 basic
Page 46
®
Img.3-2: Mounting drilling column B16
Img.3-3: Assembly drilling column
Img.3-4: Assembly crank handle
