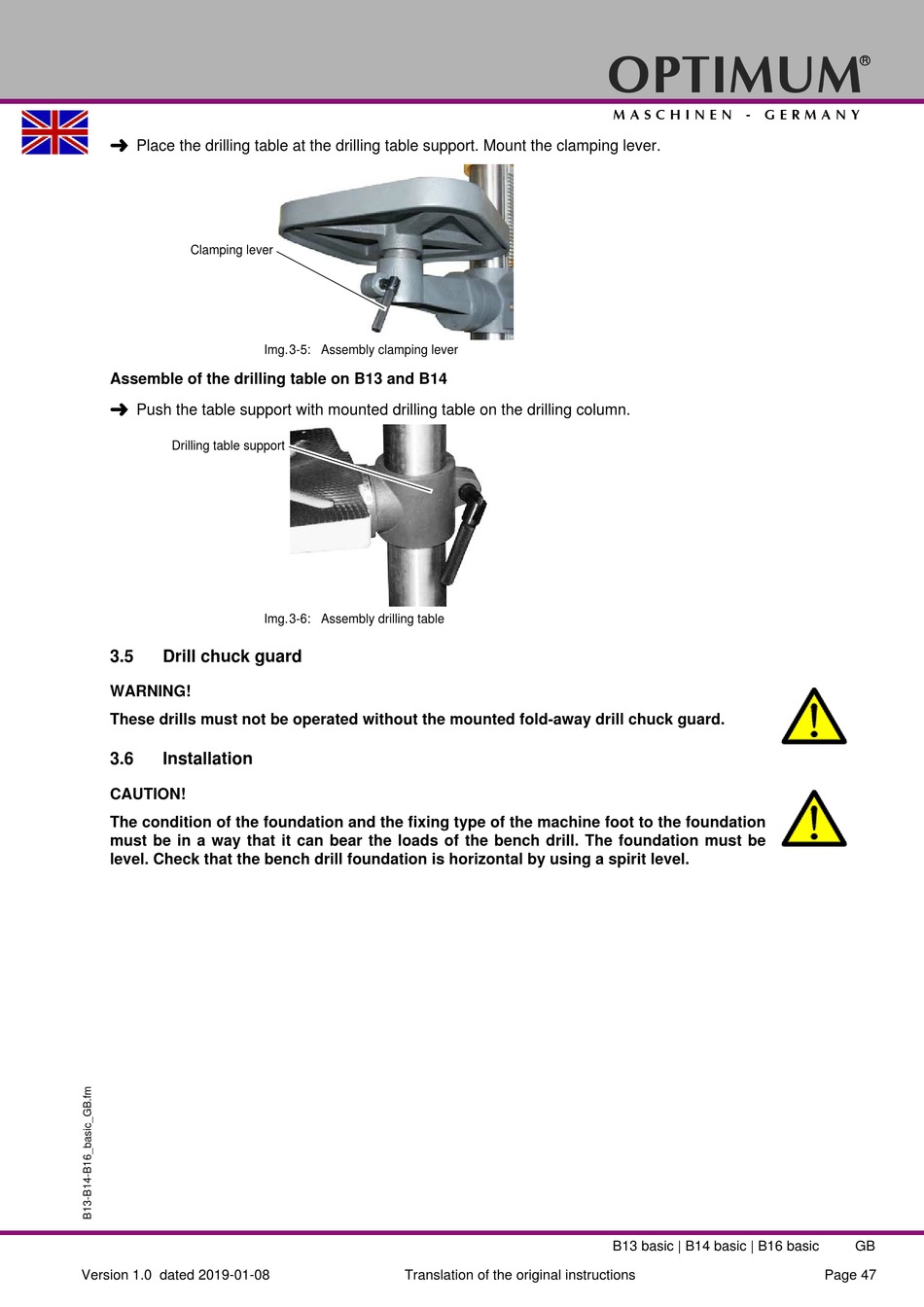

Place the drilling table at the drilling table support. Mount the clamping lever.
Clamping lever
Assemble of the drilling table on B13 and B14

Push the table support with mounted drilling table on the drilling column.
Drilling table support
3.5

Drill chuck guard

WARNING!
These drills must not be operated without the mounted fold-away drill chuck guard.
3.6

Installation

CAUTION!
The condition of the foundation and the fixing type of the machine foot to the foundation
must be in a way that it can bear the loads of the bench drill. The foundation must be
level. Check that the bench drill foundation is horizontal by using a spirit level.
Version 1.0 dated 2019-01-08
Img.3-5: Assembly clamping lever
Img.3-6: Assembly drilling table
