Operation

4.1

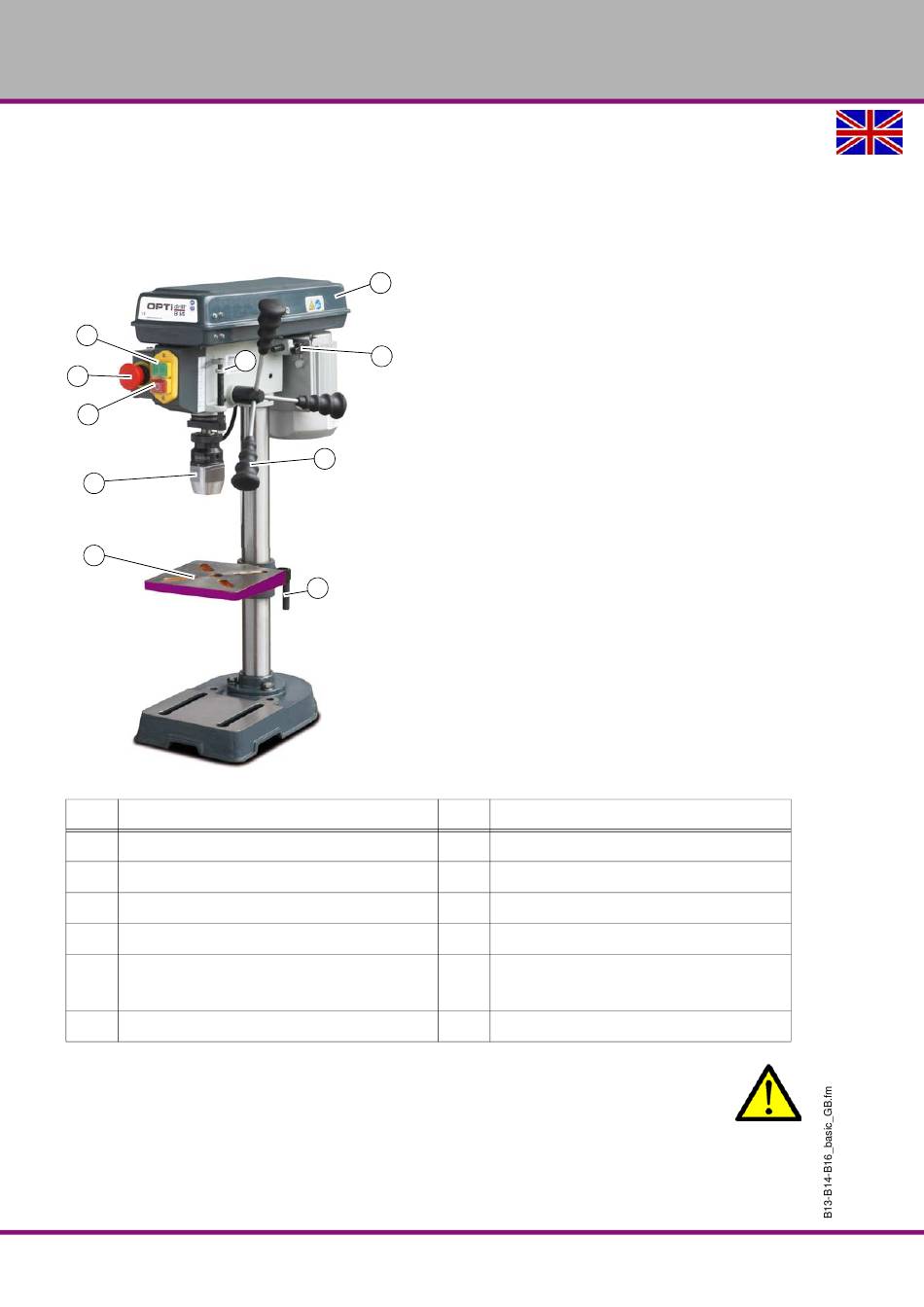

Control and indicating elements

1
2
3
5
9
Pos. Designation
On
1
Emergency stop switch
2
Off
3
Drill depth stop
4
Drill chuck ( B14, B16 )
5
B13 - Gear rim drill chuck
6 Belt drive with housing
CAUTION!
The EMERGENCY OFF switch may only be operated in an emergency. An operational
shutdown of the machine with the EMERGENCY OFF switch is not intended.
Otherwise the service life of the EMERGENCY OFF switch will be considerably reduced.
GB B13 basic | B14 basic | B16 basic
Page 48
®
6
7
4
8
10
Translation of the original instructions
Pos. Designation
Clamping screw for belt tension
7
Lever for spindle sleeve feed
8
Drilling table
9
Table height adjustment
10
Adjustment for the inclination of the table
11
12 Clamping lever
