RM10.5(S)(T), RMS10.5(X)(S)(T)

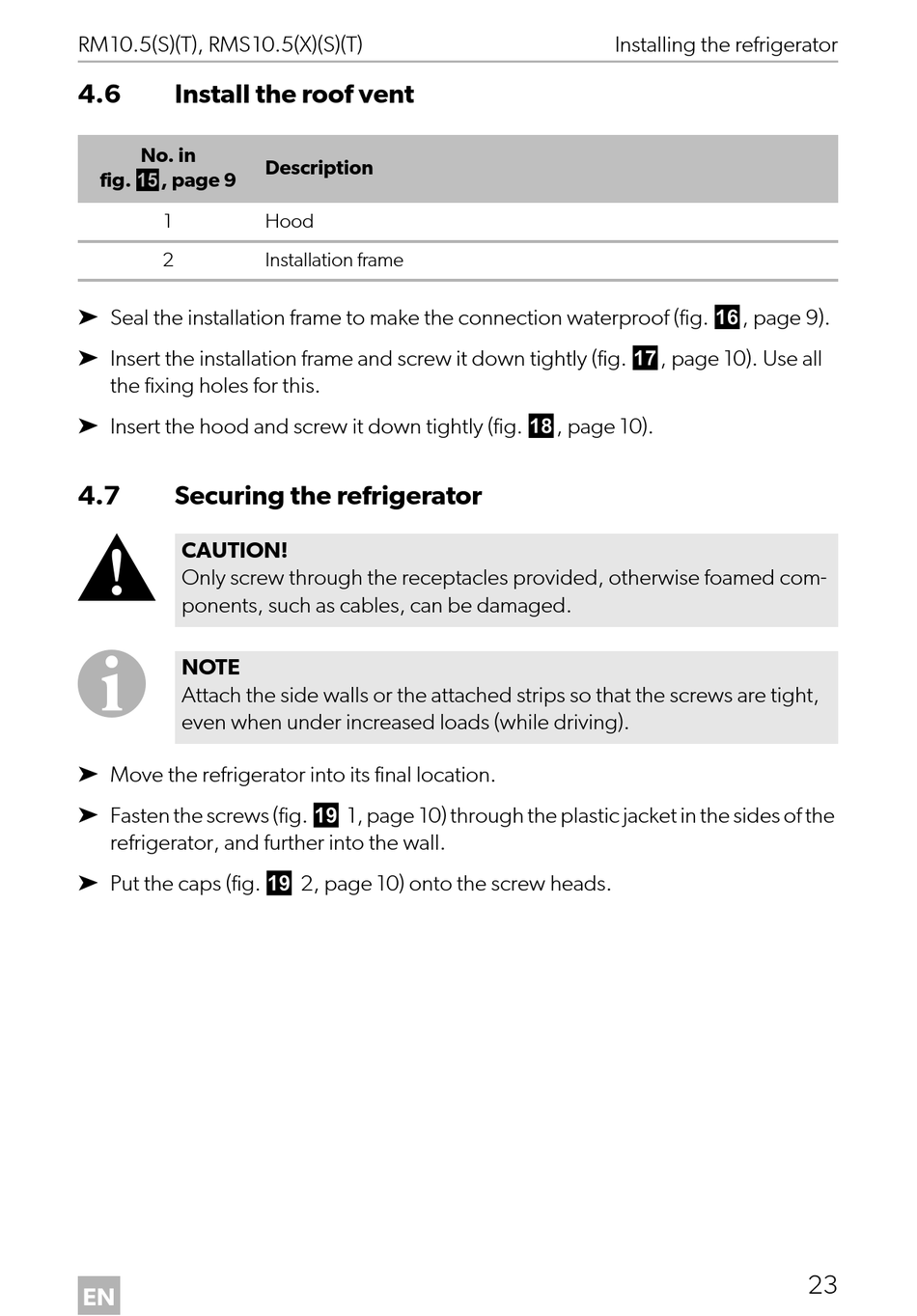

4.6 Install the roof vent
No. in
fig. e, page 9
1
2
➤ Seal the installation frame to make the connection waterproof (fig. f, page 9).
➤ Insert the installation frame and screw it down tightly (fig. g, page 10). Use all
the fixing holes for this.
➤ Insert the hood and screw it down tightly (fig. h, page 10).
4.7

Securing the refrigerator

!
CAUTION!
Only screw through the receptacles provided, otherwise foamed com-
ponents, such as cables, can be damaged.
I
NOTE
Attach the side walls or the attached strips so that the screws are tight,
even when under increased loads (while driving).
➤ Move the refrigerator into its final location.
➤ Fasten the screws (fig. i 1, page 10) through the plastic jacket in the sides of the
refrigerator, and further into the wall.
➤ Put the caps (fig. i 2, page 10) onto the screw heads.
EN
Description
Hood
Installation frame
Installing the refrigerator
23
