ZAPTEC Pro Installationshandbuch Seite 14

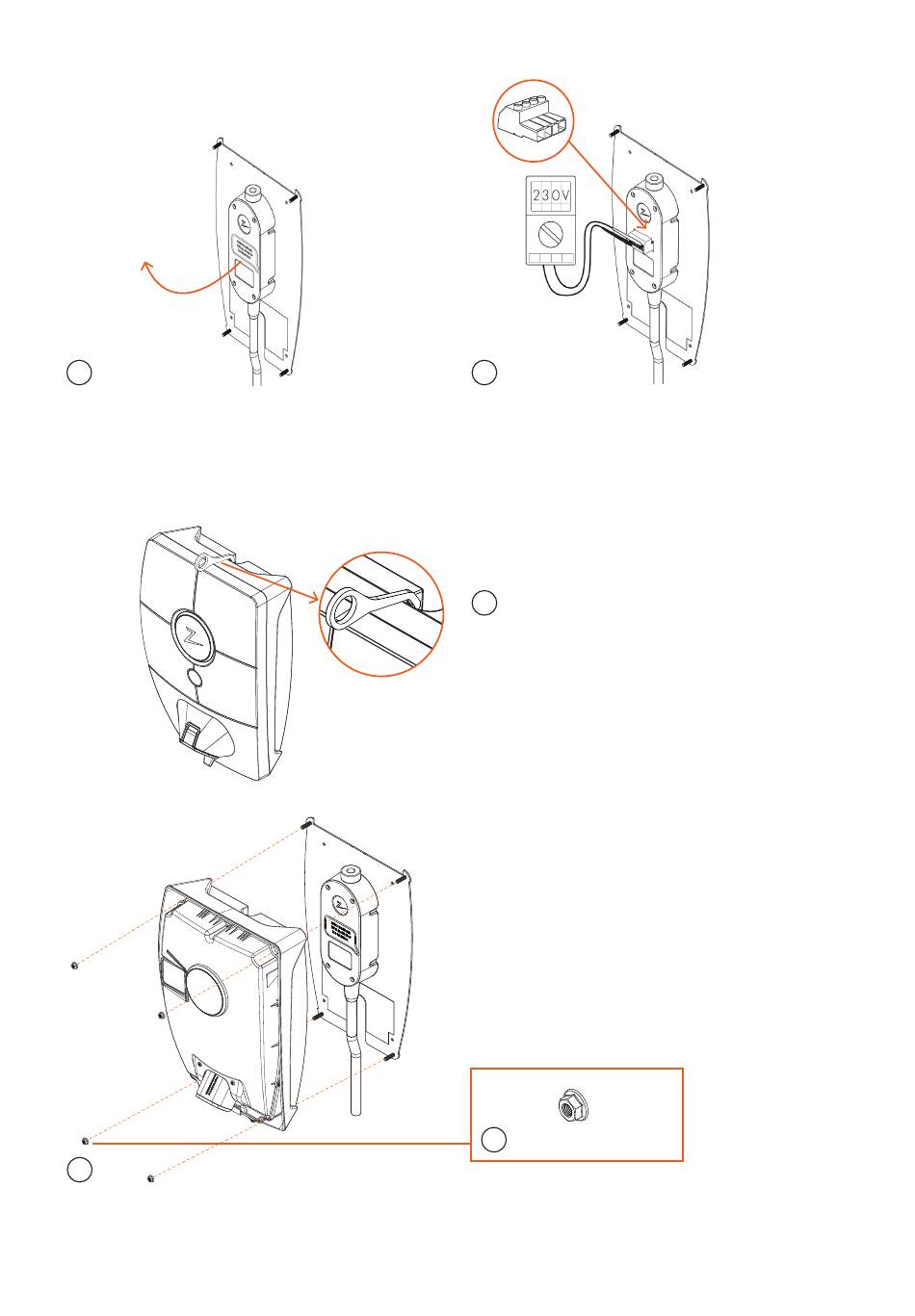

Install the charging station
1
Remove the adhesive sticker
Remove the adhesive sticker which protects the contact on
the junction box, if applicable.
4
Tighten the nuts
Tighten the charging station using the four supplied nuts.
14
2
Test the installation
Use the female connection to test the installation before
continuing the fitting of it. If you test directly on the back
plate, the connections will be damaged.
3
Remove the front cover
Remove the front cover using the SmartKey* special tool
supplied with the charging station, and take the front cover off.
* To remove the front cover on a charging station mounted
on a ZAPTEC Column, you must use a SmartKey Column
(supplied with the column) in order to access the
charging station.
x 4
J
Locking nuts - ZB100049
