Included Component; Explosion Drawing - Xylem HYDROVAR Smart Bedienungsanleitung

1 x HYDROVAR-Smart print
1 x Display unit
1 x Display-sealing
1 x Front cover
1 x Protection cover
1 x Label (SCH 60.25)
1 x Label (SCH 60.35)
4 x Distance bolt M4xM4x22 I/I
4 x Distance bolt M4xM4x8 A/I
4 x Screw M3x10
4 x Screw M4x10
4 x Screw M4x6
8 x Washer M4
3.3
M4x10
Washer M4
Distance boltM4xM4x22 I/I
The self-adhesive label SCH 60.25 (with the cut-out for the display) has to be fixed in this
way, that the yellow areas are placed on top of the push buttons.
The self-adhesive label SCH 60.35 has to be fixed below the display unit.
A photo of the right place for these labels is shown on the first page of this instruction
manual!
Downloaded from www.Manualslib.com

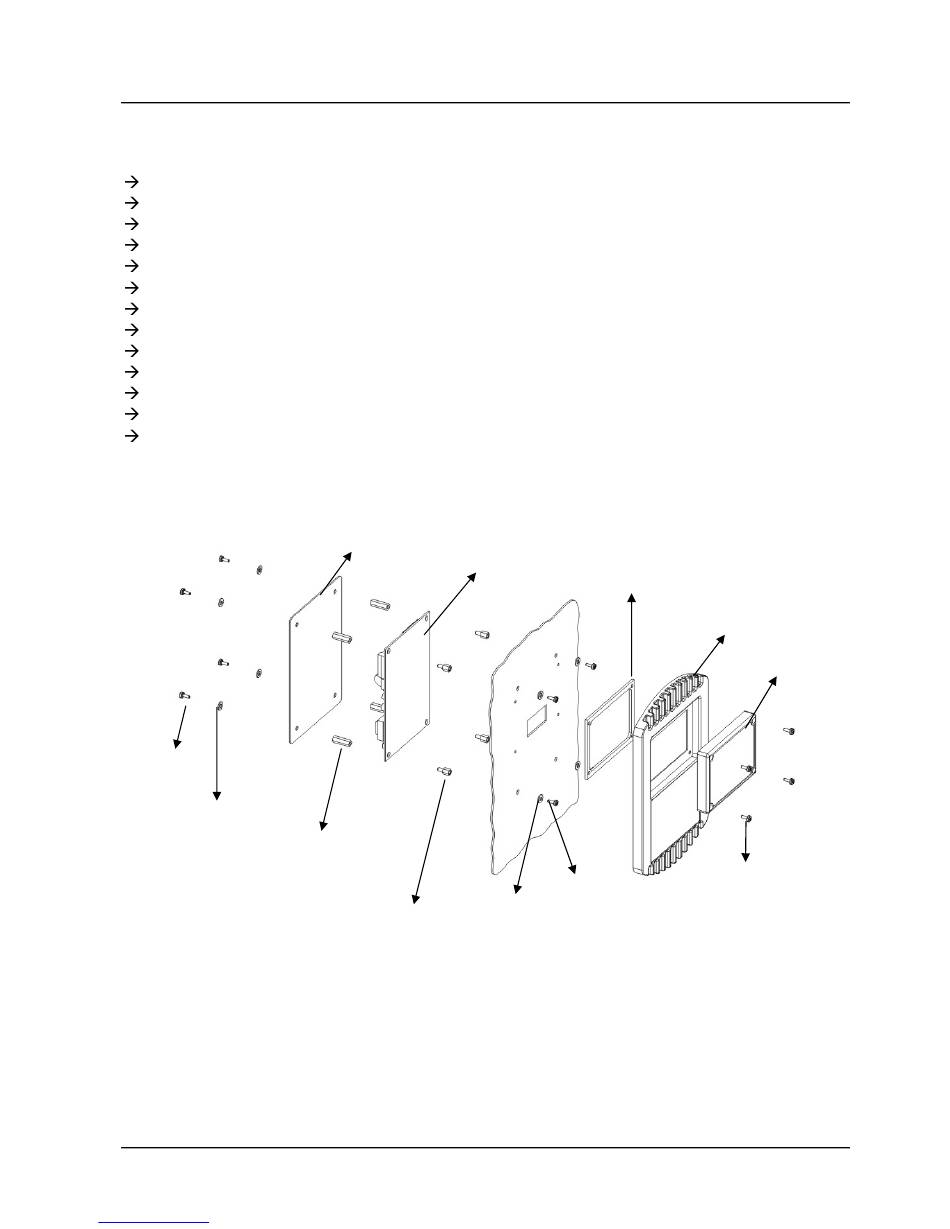

3.2.2 Included Component

Explosion drawing

Protection cover
Distance bolt M4xM4x8 A/I
manuals search engine
HYDROVAR-
Smart print
Display-sealing
M4x6
Washer M4
11
Front cover
Display unit
M3x10
