Charger unit part 1
Charger unit
1
Sett. Charging power
100 %
2
Limiting
3
Power
0.0 kW
4
Remaining charging time
-
5
Max cell volt.
3.820 V
6
No. of charger units
0 Auswahl Lader Info-
Mode
AC
7
n. v.
0,0 V, 0,0 A
Temperatur
DC
8
0.0 °C
0,0 V, 0,0 A

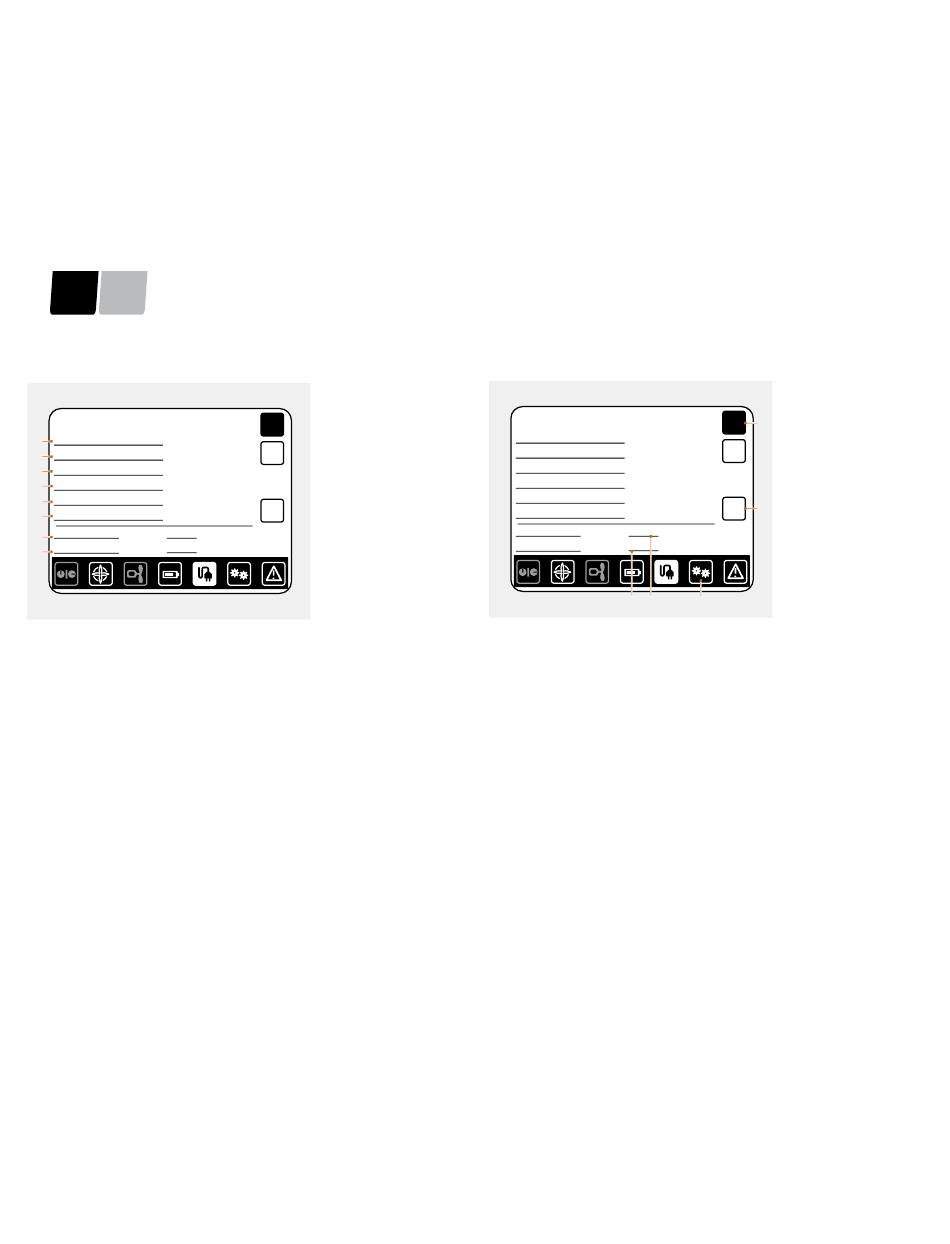

Fig. 35:
Charger unit (image 1)
1
User-selected charging power
2
Actual charging power limit
3
Amount of power charger is delivering
4
Time until high-voltage batteries are fully charged
5
Maximum cell voltage
6
Number of charger units in DEEP BLUE system
7
Status of charger units
8
Temperature of charger unit
page 70 / 92
All manuals and user guides at all-guides.com
On
Off
1
Charger unit part 2
Charger unit
Sett. Charging power
100 %
Limiting
Power
0.0 kW
Remaining charging time
-
Max cell volt.
3.820 V
No. of charger units
0 Auswahl Lader Info-
Mode
AC
n. v.
0,0 V, 0,0 A
Temperatur
DC
0.0 °C
0,0 V, 0,0 A
9 10
Fig. 36:
Charger unit (image 2)
9
Output voltage and output current
10 Input voltage and input current
11 Settings menu: This is where the charging power is set
12 Select charger unit
13 On/Off switch for charger unit (On is selected)
Operation
13
On
Off
12
