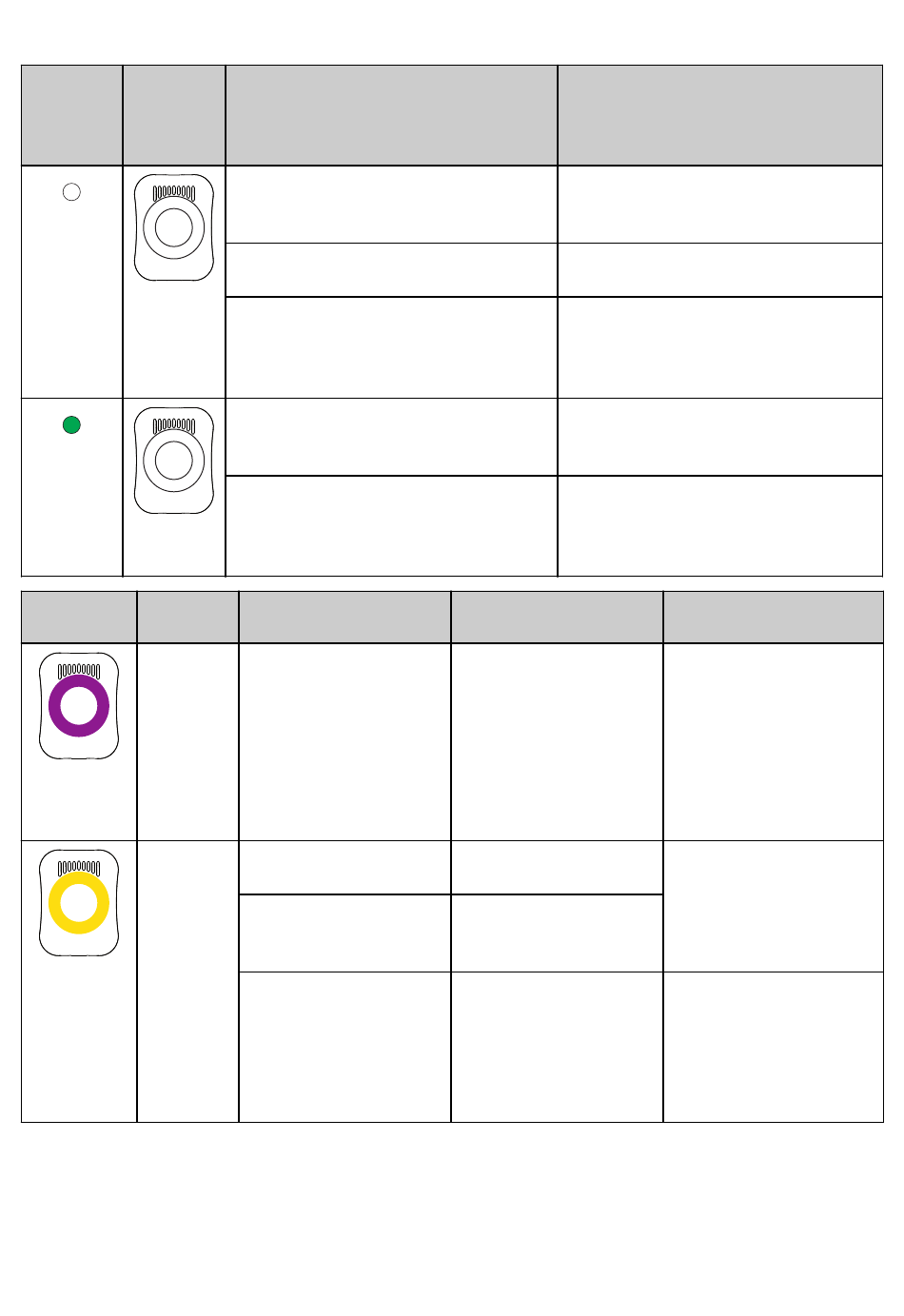

Error while charging the product
LED on Status
power LED on
supply battery
charger
Status
LED
The LED
ring is lit
in weak
purple
The LED
ring is lit
up yellow
Error
Country-specific plug adapter not
fully engaged on power supply
Non-functional socket
Defective power supply
No connection between battery
charger and power supply
Defective battery charger
Charging status
indicator (5 LEDs)
No LED is lit
LED 2 and 4 are lit up Charger excess tem­
LED 1, 3 and 5 are lit
up
LED 3 is lit up
Resolution
Check whether the country-specif­
ic plug adapter is fully engaged on
the power supply.
Check socket with another electric
appliance.
The battery charger and power
supply must be inspected by an
authorised Ottobock Service
Centre.
Check whether the charging cable
plug is fully engaged on the battery
charger.
The battery charger and power
supply must be inspected by an
authorised Ottobock Service
Centre.
Error
Distance between bat­
tery charger and
receiver of the char­
ging unit on the pros­
thesis too great. If the
distance is more than
2 mm, the prosthesis
cannot be charged.
perature
Excessively high or
low temperature of the
prosthesis
The prosthesis is not
being charged
Distance between bat­
tery charger and
receiver of the char­
ging unit too great.
Resolution
Reduce distance
between battery char­
ger and receiver of the
charging unit.
Check whether the
specified ambient con­
ditions for charging the
battery are met (see
Page 95).
Connection may be
improved by reducing
the distance between
the charger and receiv­
er of the charging unit.
