300MM FLOOR TRACK MOUNTING MODEL 6387 AND 6389

The Stryker Cot Fastener System for the Floor Track Mounting Model 6387 and 6389 is designed to be compatible only
with cots which conform to the Floor Track Mounting Installation specifications listed below.

FLOOR TRACK INSTALLATION

1. Determine the desired position of the cot inside the vehicle allowing for proper clearance around the cot.
Note: Federal ambulance specifications regarding aisle width and attendant seating may affect positioning of
the mounting brackets. If specifications do not apply, the installer should be certain there is adequate clearance
for proper patient access, traction splint projection, rear door closure, etc.
2. Using the dimensions shown in Figure 13, identify where the floor tracks will attach.
3. Attach floor tracks as specified by track manufacturer.
Return To Table of Contents
1-18
Cot Fastener Installation

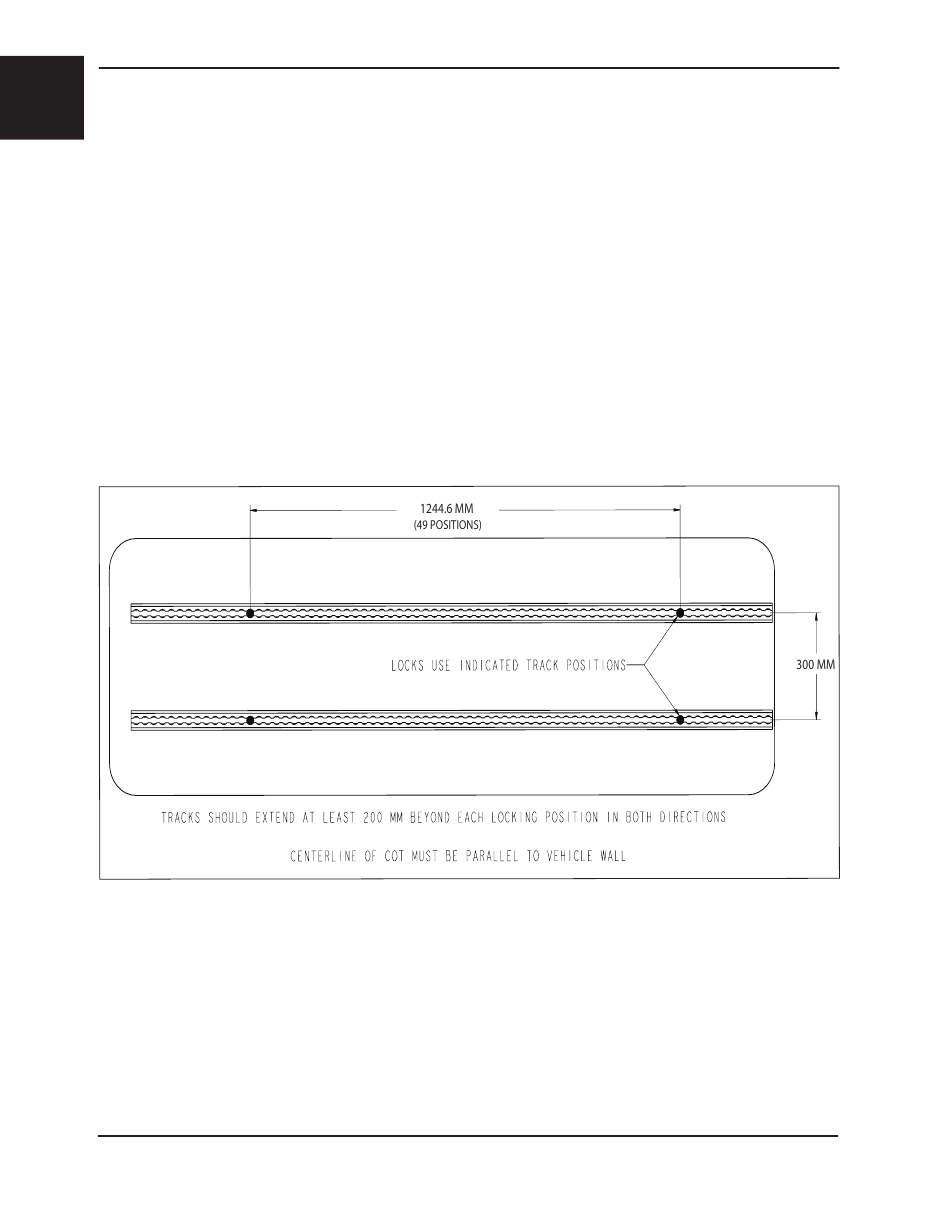

Figure 13: Floor Track Installation Locations
