I I c c o o n n , , g g r r e e e e n n
3
2
F F l l o o w w i i n n d d i i c c a a t t o o r r s s
I I n n d d i i c c a a t t i i o o n n
Low flow <0.8 lpm
Good flow ≥ 0.8 lpm
G G r r a a p p h h i i c c a a l l u u s s e e r r i i n n t t e e r r f f a a c c e e i i c c o o n n s s
I I c c o o n n
1
EN 14

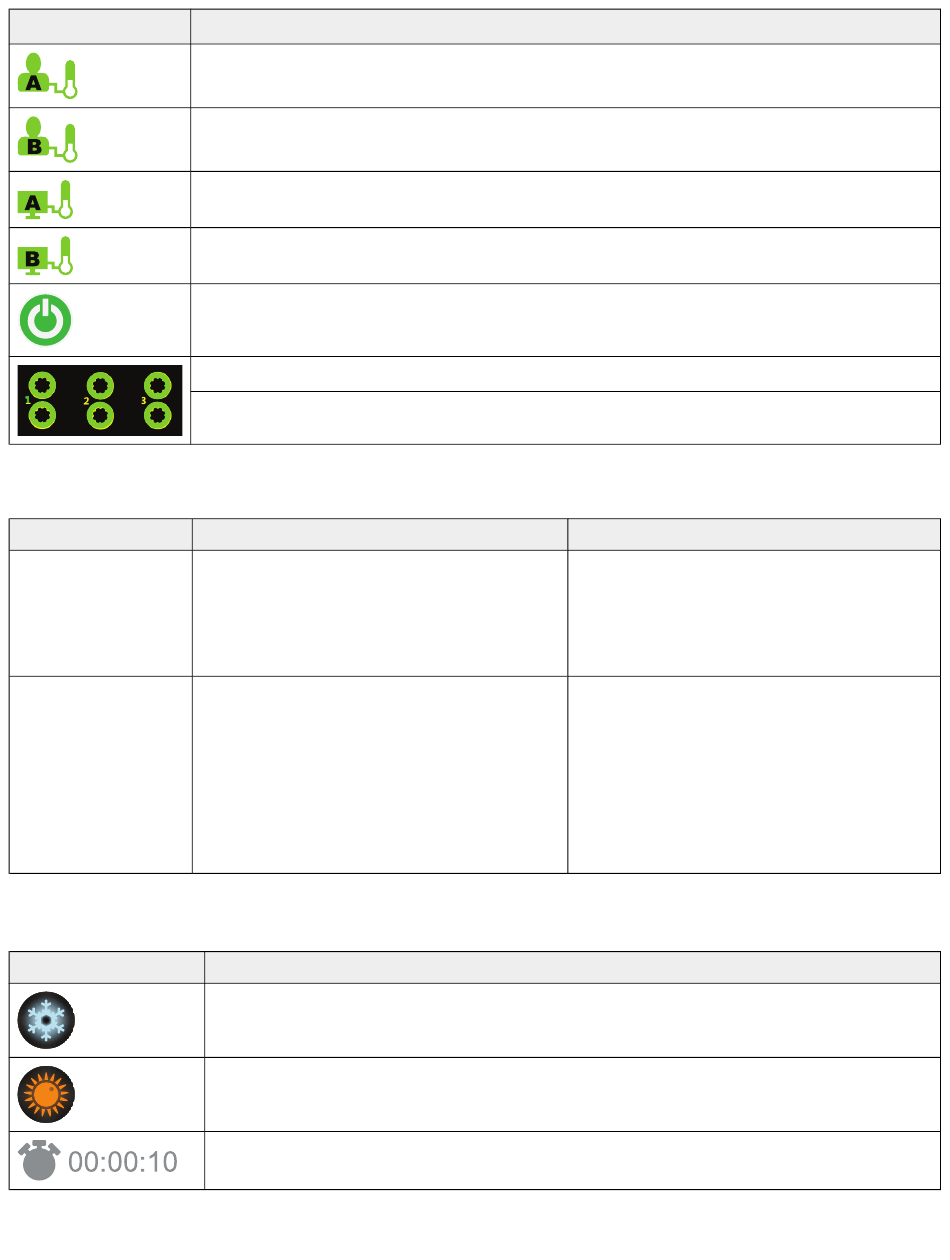

N N a a m m e e
Patient probe A port, stabilized
Patient probe B port, stabilized
External device, patient probe A
External device, patient probe B
Stand-by
Water flow detected, ports 1, 2, or 3 are solid green when active
If the water flow is less than 0.8 lpm, ports 1, 2, or 3 breathe
M M a a n n u u a a l l M M o o d d e e
Indicated by a breathing green indicator for 10
minutes, maximum
Low flow that changes to No flow will remain
breathing green for 15 seconds, maximum
Solid green indicator when flow is maintained
for 30 seconds.
Good flow that is reduced to Low flow will
change the indicator to breathing green for 10
minutes, maximum
Good flow that is reduced to No flow will
change the indicator to breathing green for 15
seconds, maximum
N N a a m m e e
Cooling therapy
Warming therapy
Current therapy duration
A A u u t t o o m m a a t t i i c c M M o o d d e e
Indicated by a breathing green indicator (no
alarms)
Low flow that changes to No flow will remain
breathing green for 15 seconds, maximum (no
alarms)
Solid green indicator when flow is maintained
for 30 seconds.
Good flow that is reduced to Low flow (no
alarm)
Good flow that is reduced to No flow and will
change the indicator to breathing green after
15 seconds the indicator turns off
