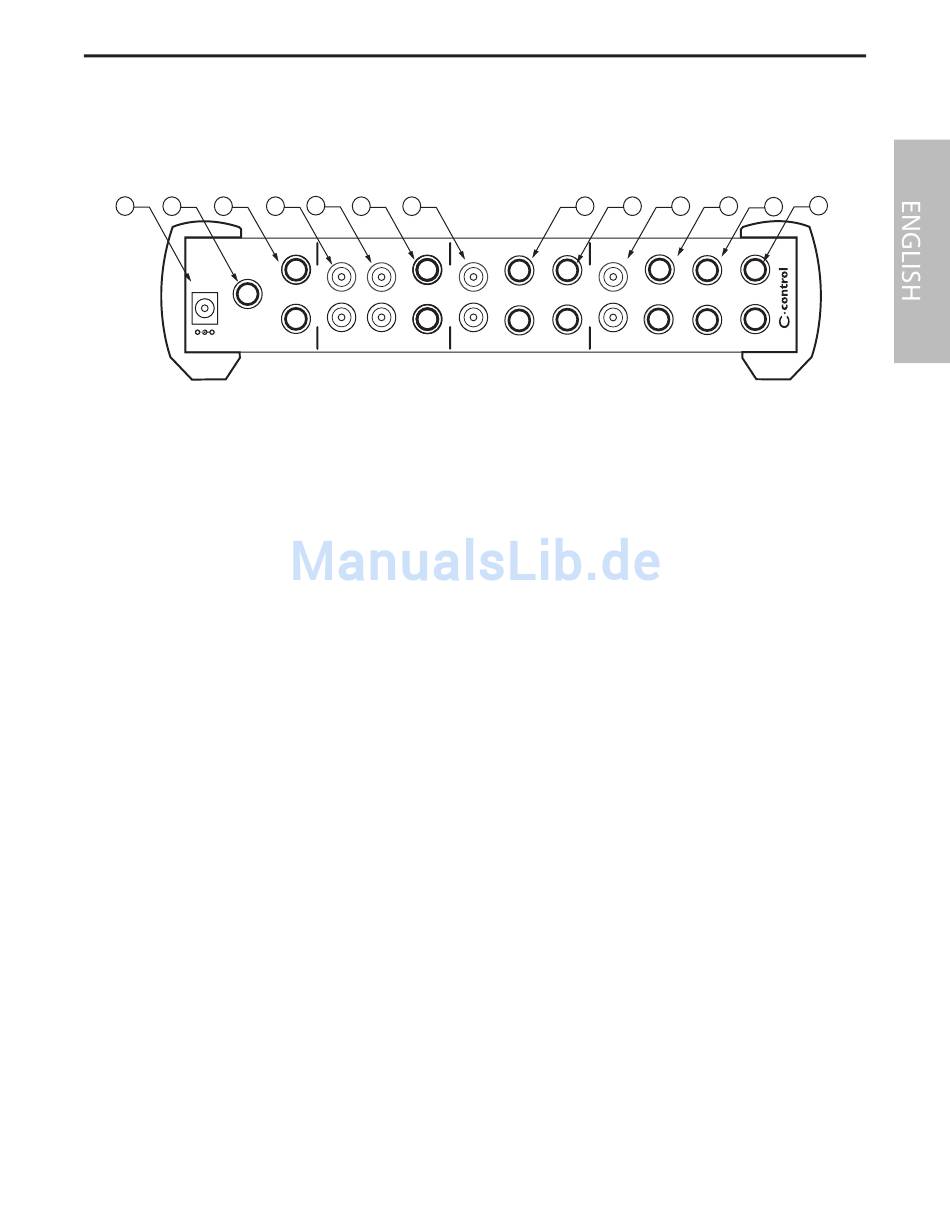

REAR PANEL LAYOUT

A
C
B
SAMSON
POWER
AC IN
14 V
TALK
REMOTE
+
-
500mA
MADE IN CHINA
AC INLET - The included AC power supply brick is
A
connected here.
-
B REMOTE TALK 1/4-inch phone connector used to
connect external TALKBACK switch.
C EXTERNAL CUE - Stereo output on two 1/4-inch
balanced phone connectors for sending C control
left and right mix to a headphone amplifier.
SPEAKER C - Stereo RCA outputs for connecting
D
monitor power amplifier or powered monitors.
Also can be used to connect an external powered
subwoofer.
SPEAKER B - Stereo RCA outputs for connecting a
E
monitor power amplifier or pair of powered moni-
tors.
F SPEAKER A - Stereo 1/4-inch balanced outputs for
connecting a monitor power amplifier or pair of
powered monitors.
2-TRACK C OUTPUT - Stereo RCA outputs for con-
G
necting any –10dBu level recording devices, such
as a computer sound card, minidisk or consumer
cassette recorder.
H 2-TRACK B OUTPUT - Stereo 1/4-inch balanced
outputs for connecting any +4dBu level recording
devices, such as a DAT recorder, computer sound
card or CD burner.
D
E F G
EXT CUE SPK C SPK B SPK A
L
BALANCED BALANCED
R
Controls and Functions
H I
2TK C 2TK B 2TK A 2TK C
L
BALANCED BALANCED BALANCED
R
OUTPUT
2-TRACK A OUTPUT - Stereo 1/4-inch bal-
I
anced outputs for connecting any +4dBu
level recording devices, such as a DAT record-
er, computer sound card or CD burner.
2-TRACK C INPUT - Stereo RCA inputs for
J
connecting any –10dBu level recording
devices, such as a computer sound card,
minidisk, CD player or consumer cassette
recorder.
2-TRACK B INPUT - Stereo 1/4-inch bal-
K
anced inputs for connecting any +4dBu level
stereo sources, such as a DAT recorder, com-
puter sound card, CD burner or sub-mixer.
2-TRACK A INPUT - Stereo 1/4-inch bal-
L
anced inputs for connecting any +4dBu level
stereo sources, such as a DAT recorder, com-
puter sound card, CD burner or sub-mixer.
MIX INPUT - Stereo 1/4-inch balanced
M
inputs for connecting any +4dBu level stereo
sources, such as your main mixer or hard
disk.
5
M
J K L
2TK B 2TK A MIX IN
L
BALANCED BALANCED
R
INPUT
