Operating the C Control
Once you have connected your stereo recorders, stereo sound sources and studio monitor speakers you can
begin to use, and enjoy the powerful features of the C control. The following section will take you through the
operation of the C control's switches, control knobs and operating functions.

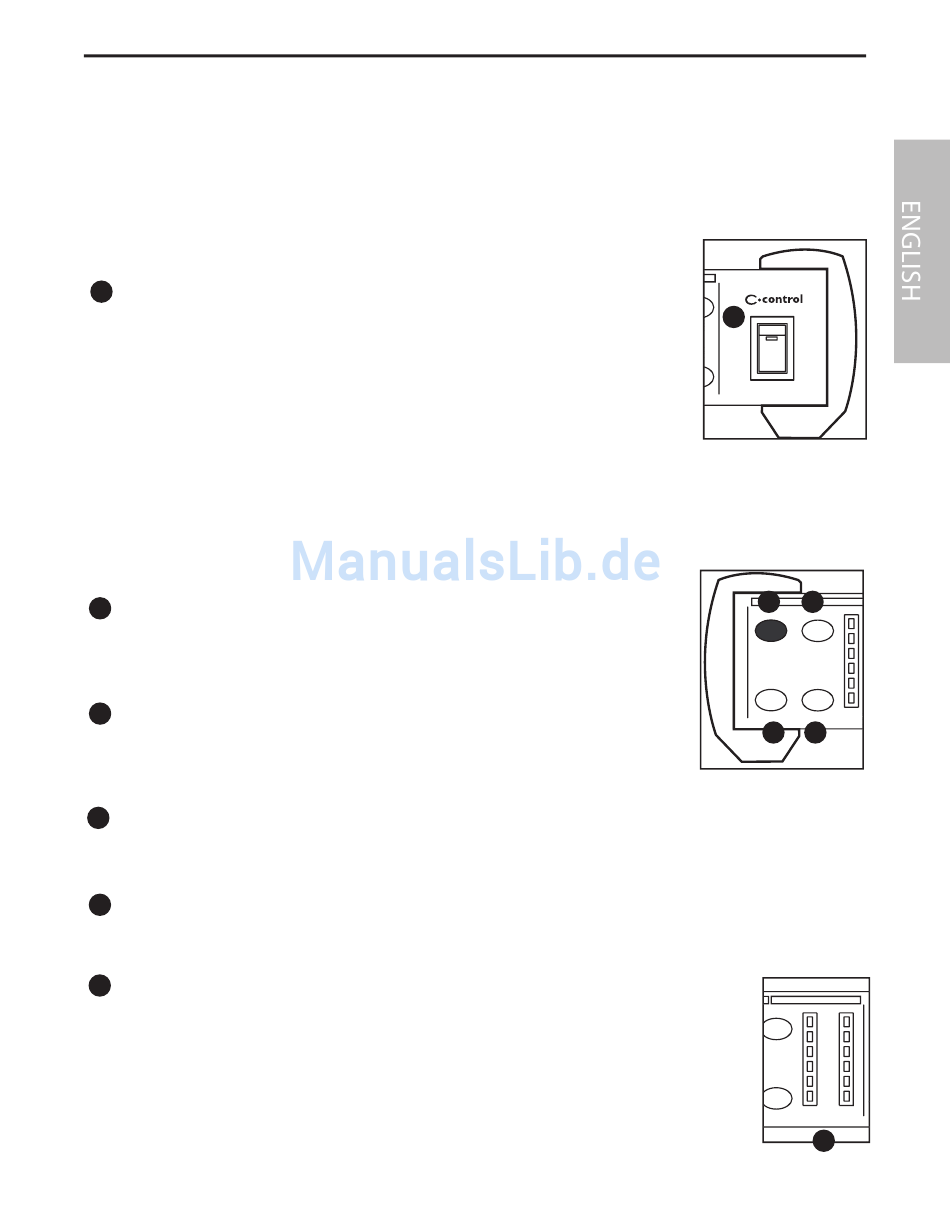

Controls and Functions
SOURCE
DESTINATION
POWER switch
14
OL
+6
MIX
2TK A
Use the POWER switch to turn the C control on and off. When the POWER switch
0
-6
is set to the on position, the unit will power up and the green LED on the POWER
2TK B
2TK C
-18
switch will illuminate indicating the unit is ready for operation.
-30
L
LEVEL
Source Assignment Switches
When you engage any of the Source assignment switches, their associated LED's will
illuminate indicating the signal connected to that Source input is on and will now be heard on all outputs
including the selected SPEAKER outputs, the HEADPHONE and the EXTERNAL CUE outputs. C control allows
you to monitor more than one stereo Source at the same time, therefore a Source assignment switch will stay
on when another is selected. Simply press the source assignment button a second time and the Source will
turn off.
MIX Switch
15
The MIX switch is used to assign the audio signal from the device connected to the
left and right MIX inputs to the monitor bus.
2 TK A Switch
16
Use the 2TK A switch to assign the signal connected to the left and right 2-track A
inputs to the main stereo monitor bus.
2 TK B Switch
17
Used to assign the signal connected to the left and right 2 TK B inputs to the monitor bus.
2 TK C Switch
18
Used to assign the signal connected to the left and right 2 TK C inputs to the monitor bus.
Master Level Meter
19
The C control's master section includes an 6-segment LED LEVEL meter, which displays the
input level of the main left and right bus in decibels (dBs) from –30 to Overload(OL). The sig-
nal displayed on the LEVEL meter shows the level of the combined signals of all of the two
track inputs. If the LEVEL meter displays a clipped signal, then turn down the signal or sig-
nals being sent into the stereo bus.
CONTROL ROOM
0
10
HEADPHONE
VOLUME
0
10
VOLUME
R
SPEAKER A
HEADPHONE
Operating the C•control
MUTE
DIM
0
10
0
SPK B
TALKBACK
VOLUME
SUB
SPEAKER B
SPEAKER C
MONO
11
SAMSON
TALKBACK
14
TALK TO
LK TO
CUE
CUE
10
TALK TO
LK TO
LEVEL
2TK
2TK
CONTROL ROOM
MIC
MATRIX
15
16
SOURCE
MIX
2TK A
2TK B
2TK C
17
18
SOURCE
DESTINATION
MIX
2TK A
2TK B
2TK C
DESTINATION
DESTINA
OL
+6
0
0
HEADPHO
VOLUM
-6
-18
-30
L
L
R
R
HEADPHO
LEVE
LEVEL
OL
+6
0
10
0
HEADPHONE
VOLUME
-6
0
-18
-30
L
R
HEADPHONE
LEVEL
19
