Setting the SPEAKER C/SUB Level
The Control Room VOLUME knob is used to adjust the level of the
SPEAKER C output exclusively. To set the balance between the SPEAKER
A/B, use the input level control on your power amp, powered monitor
or sub woofer amplifier.
MUTE switch
24
The mute switch provides a convenient way to shut off any and all of
the SPEAKER outputs with a single button push. When the MUTE switch
is engaged, the red LED will illuminate indicating that there is no signal
present at the SPEAKER outputs. While all of the speaker outputs are off when the MUTE switch is engaged,
the HEADPHONE output and EXTERNAL CUE outputs are still active.
25 Dim switch
The C control offers a useful feature, DIM, allowing you to lower the overall Control Room level with the press
of a single button. When the DIM switch is pressed to the on position, the yellow LED will illuminate and the
overall level of any and all of the connected monitors will be lowered by 20dB. This allows you quickly turn
the speaker levels down to talk to someone in the control room or on the phone, without having to shut the
speakers completely off.

Mono switch

26
With C control, it's easy to check your mixes for mono compatibility thanks to the Mono function. To listen to
your mix in mono, simply press the MONO switch and the yellow LED will illuminate indicating all the outputs
are receiving a mono signal.
SPEAKER A Assign Switch
27
The speaker A switch can operated in two different ways depending on the position of the Speaker B switch. If
the SPEAKER B switch is not assigned (LED off ), then the SPEAKER A switch simply turns the SPEAKER A output
on and off. When the LED is illuminated, the output is active and you will hear the monitors connected to the
SPEAKER A outputs. If the SPEAKER B assign switch is engaged (LED is illuminated), the SPEAKER A switch will
function as an A/B toggle switch selecting between the monitors connected to the SPEAKER A and SPEAKER B
outputs.
SPEAKER B Assign Switch
28
When the SPEAKER B switch is engaged (LED is on), the SPEAKER B outputs can be turned on by using the
SPEAKER A switch to toggle between the SPEAKER A and SPEAKER B outputs. See the previous section
"SPEAKER A Assign Switch" for more information on selecting between SPEAKER A and SPEAKER B.
Speaker C Assign Switch/SUB
29
The SPEAKER C/SUB switch is used to turn on the monitors or subwoofer connected to the SPEAKER C out-
puts. The SPEAKER C assign switch works independently from the SPEAKER A and/or SPEAKER B switch, so it
is an ideal output to use for a subwoofer. Since the SPEAKER C switch works independently, you can leave a
subwoofer on while listening to either the SPEAKER A or SPEAKER B monitors, and easily turn it on or off.

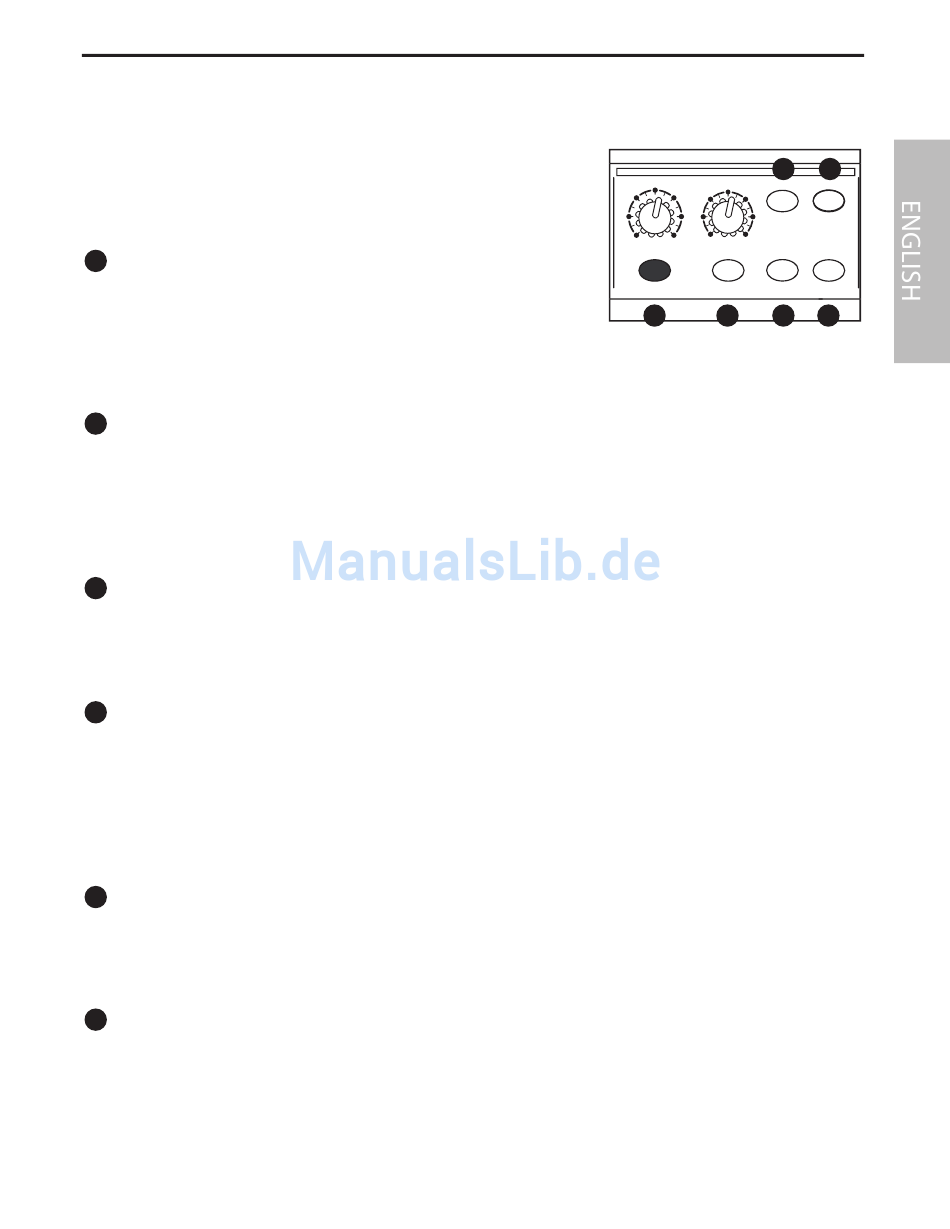

Operating the C•control
SOURCE DESTINATION
OL
+6
MIX 2TK A
0
0
HEADPHONE
VOLUME
-6
2TK B 2TK C
-18
-30
L R
HEADPHONE
LEVEL
13
24
CONTROL ROOM
MUTE
10
0 10
0 10
SPK B
VOLUME
VOLUME
SUB
SPEAKER A SPEAKER B SPEAKER C
27 28 29
25
TALKBACK
TAL
DIM
C
0 10
TALKBACK TAL
LEVEL 2
MIC
MONO
26
