Operating the C•control
Using the Headphone Amplifier
The C control includes an internal headphone amplifier for monitoring the mix and/or any of the assigned
two-track inputs.
WARNING: Because the C control is capable of generating high volume levels, always start with the
HEADPHONE VOLUME knob at minimum and then slowly turn it up until you reach a comfortable listening
level.

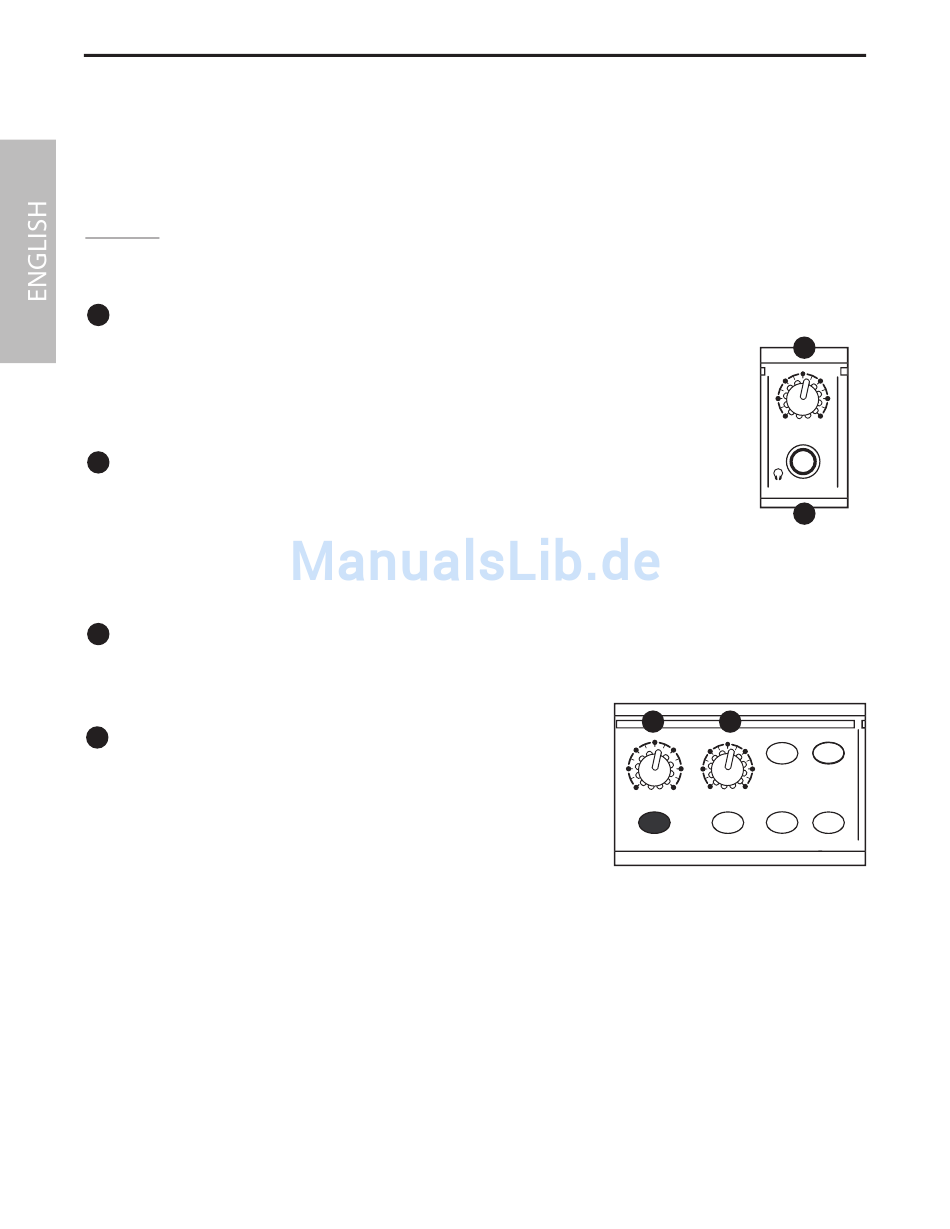

Headphone Volume
20
The HEADPHONE VOLUME control is used to adjust the level of the headphones connected to
the front panel HEADPHONE jack. The signal feeding the headphone is picked up before the
MUTE switch, therefore it is possible to listen to the headphones while the connected monitors
are off.
Headphone Jack
21
The C control's HEADPHONE output accepts standard 1/4-inch, stereo TRS (Tip/ Ring/ Sleeve)
phone plugs for connecting headphones. You can connect any standard headphone from
8 through 240 Ohms.
Control Room Section
Volume
22
The C control's VOLUME knob is the master control for the Control Room level. Use the VOLUME knob to adjust
the overall level of all the SPEAKER outputs.
23
Speaker B Volume
The SPEAKER B volume control is used to adjust the level of the SPEAKER
B output and works in conjunction with the Control Room VOLUME
knob. This means if the Control Room Volume is set all the way off (fully
counter clockwise), there will be no output on Speaker B, regardless of
the level set on the SPEAKER B control knob. Use the SPEAKER B control
knob to adjust the balance between the monitors connected to the
SPEAKER A outputs and the monitors connected to SPEAKER B outputs.
To set the balance between the monitors connected to the SPEAKER A and SPEAKER B outputs, first turn the
Control Room VOLUME to a low level and set the SPEAKER B level all the way off (fully counter clockwise). Be
sure that the SPEAKER B output is active by engaging the SPEAKER B switch (the green LED will illuminate).
Now, press the SPEAKER A switch on and off while adjusting the SPEAKER B Volume Control, matching the
level of the two sets of monitors. Once you have matched the balance, use the Control Room VOLUME knob
to adjust the overall level of either set of monitors.
