12 AVENTICS | MSN | R499050100–BDL–001–AB
Pay attention that there is sufficient
installation space for the pneumatic
connections.

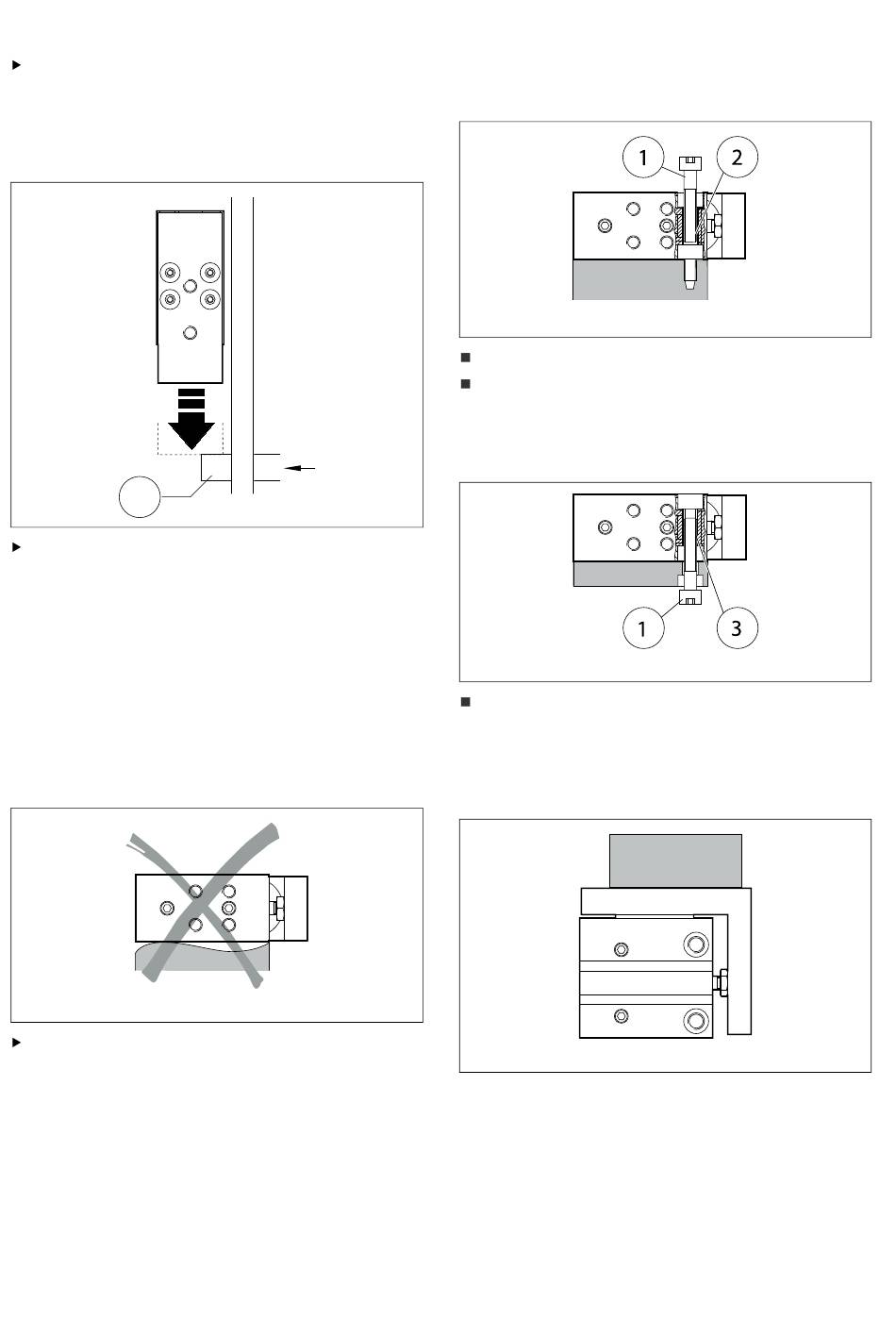

Vertical installation
1
Make sure that when the slide comes to a
standstill it has reached a stable position,
e.g. it is safeguarded by a movable pin or
moved to the lowest point (1). You thereby
prevent sudden downward mass impact.
3.2 Mounting the mini-slide on a
base
Even surface of the base
The mini-slide must be mounted free from
distortion and stress-free on a plane base
using at least two mounting screws.
00117676
00117677
"Lateral" mounting by way of through
holes
"Mini-slide" mounting screw (1)
Through holes (2)
"Lateral, rear and bottom" mounting by
way of threaded holes
00117679
Threaded holes (3)
3.3 Mounting the load "m" on the
slide
00117680
00117678
m
