14 AVENTICS | MSN | R499050100–BDL–001–AB
4 Compressed Air
Connections
4.1

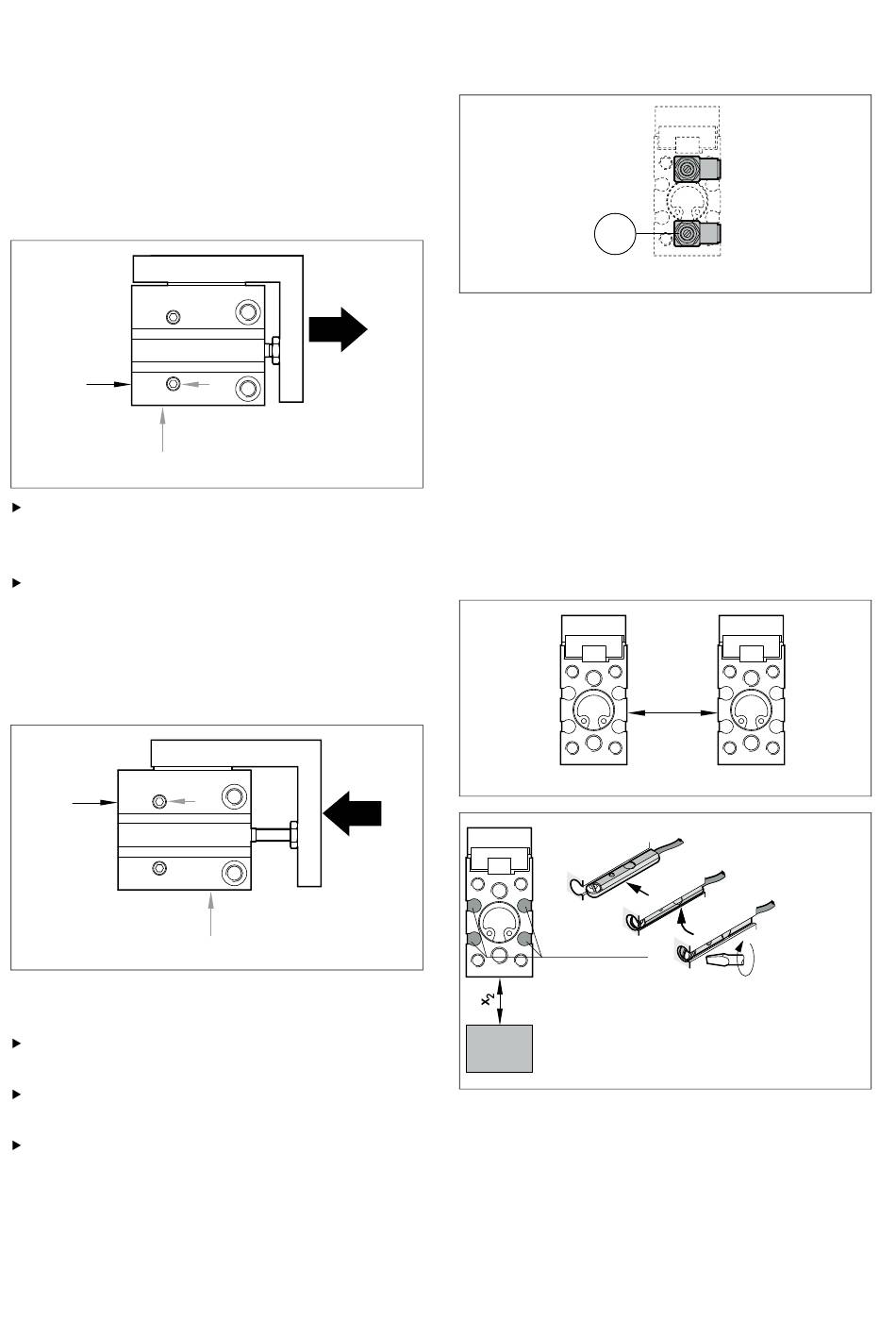

Compressed air connections

"forward stroke"
P
1
P
1
The compressed air for the forward and
return stroke can be supplied to the mini-
slide from the rear, side or bottom.
Use check-choke valves (1) to set the slide
speed.
4.2 Compressed air connections
"return stroke"
P
2
They are installed as follows:
Screw the check-choke valves directly into
the compressed air connections
Remove the transport covers from the
compressed air connections.
Connect hoses to the compressed air
connections.
P
1
00117686
P
2
P
2 00117687
4.3

Check-choke valves

1
The lateral and lower compressed air
connections are closed with threaded pins on
delivery.
5 Magnetic Proximity
Switching
5.1 Proximity switching reliability
and cylinder switch assembly
00117089
1.
2.
Fe
NOTICE! Strong external magnetic fields (e.g.
welding units) or ferromagnetic attachments
located in the direct vicinity of the proximity
switching system may affect the proximity
switching function.
00117688
x
1
3.
M = 6 +5
A
00117690
Ncm
