Product Overview - Aventics MSN Series Betriebsanleitung

10 AVENTICS | MSN | R499050100–BDL–001–AB
1

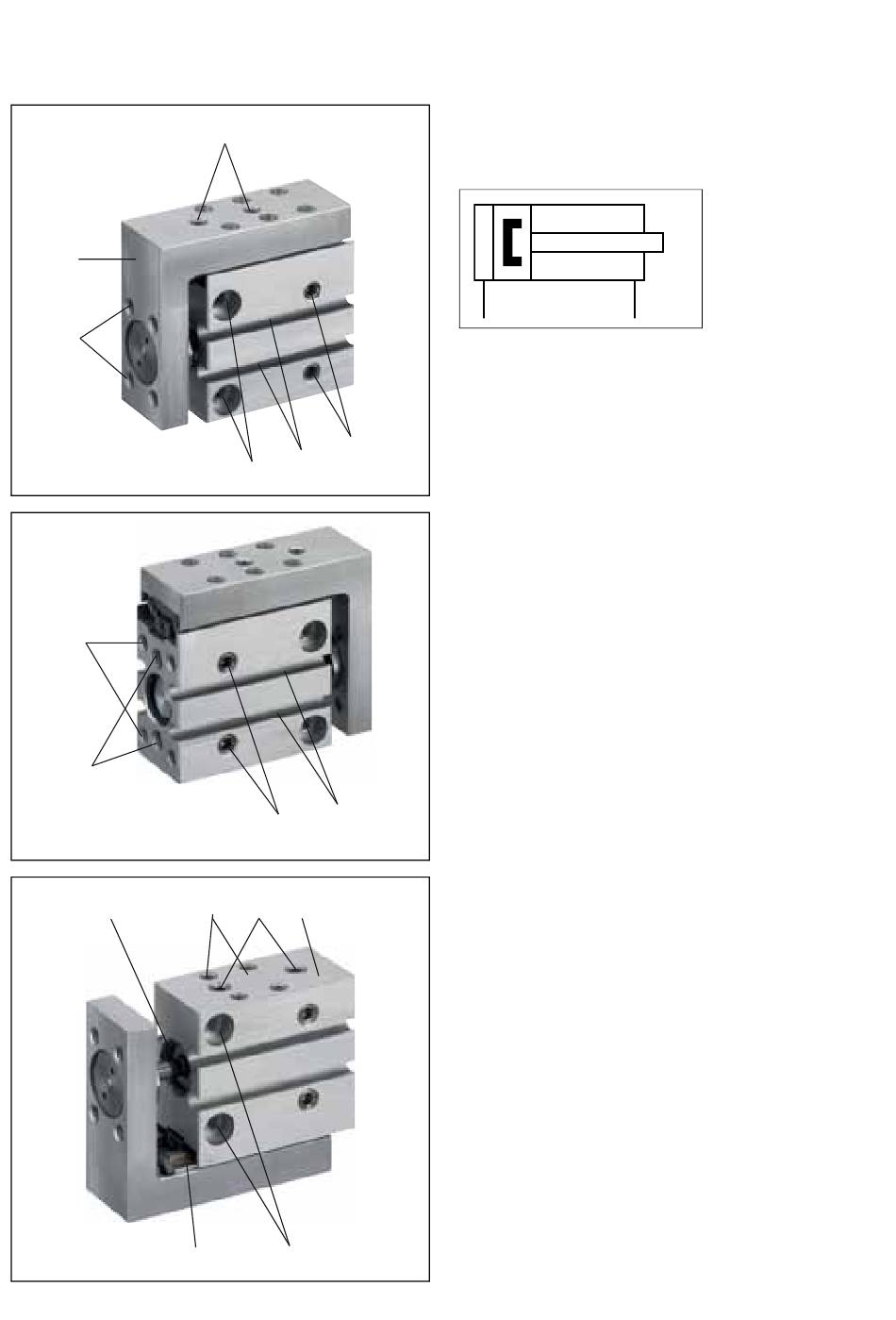

Product Overview

5
6
4
7
1
6
7
8
3
8
7
4 7 2
3
9
(1) Drive
Double-acting drive cylinder
(2) Base
(3) Threaded/through holes
to mount the mini-slide
(4) Threaded holes
to mount the mini-slide
(5) Slide with front plate
(6) Threaded holes
to mount loads
(7) Compressed air connections
the lateral and lower compressed air
connections are closed on delivery
(8) Sensor grooves
to mount the cylinder switches laterally on
either side of the base
(9) Guide system
with integrated precision ball-bearing
